Galvanized Steel Expanded Metal Rib Lath /Metal High-Rib Lath for Construction Reinforcement
Galvanized Steel Expanded Metal Rib Lath /Metal High-Rib Lath for Construction Reinforcement
Galvanized Steel Expanded Metal Rib Lath /Metal High-Rib Lath for Construction Reinforcement
Galvanized Steel Expanded Metal Rib Lath /Metal High-Rib Lath for Construction Reinforcement
Specifications
Brand Name :
XMESH
Model Number :
1/8" 0.35mm
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
TT,LC,
Supply Ability :
1000/pcs
Delivery Time :
15-25days
Packaging Details :
Pallets
Material :
Galvanized Steel Sheets
Size :
610x2440mm
Rib height :
1/8"
Thickness :
0.35mm
Application :
Protecting Mesh,Screen
Type :
Expanded Mesh,Flattened and Standard,Raised type
Technique :
Perforated,Woven
Weave style :
EXPANDED METAL
Surface treatment :
Hot Dipped Galvanized,Powder coated,Galvanized,powder coating
Product name :
Expanded Metal Mesh,Aluminum Expanded Metal
Feature :
Corrosion Resistance,Durable,Beautiful,lacquer,Easily Assembled
Usage :
Liquid Filter,screen,Construction
Hole shape :
Diamond Hole
Length :
30m
Width :
0.5-2m
Packing :
wooden box,plastic film,pallet
Short way of mesh :
2-40mm
Sample :
free
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Galvanized Steel Expanded Metal Rib Lath /Metal High-Rib Lath for Construction Reinforcement​

Galvanized Metal Rib LathamMetal Sheet

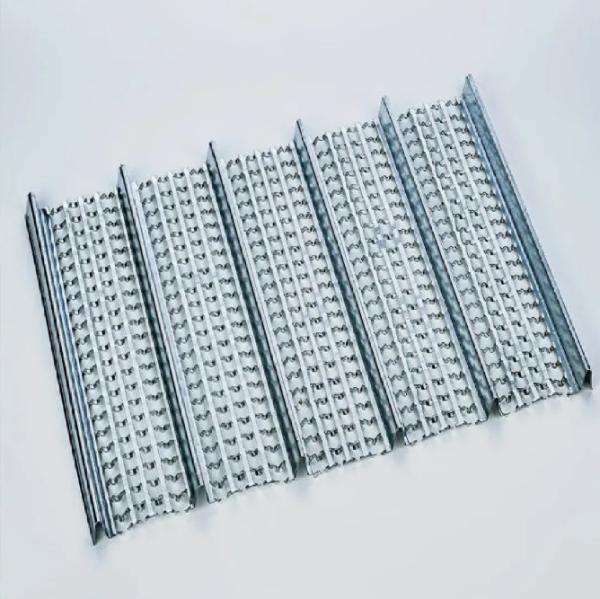

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability,thereby delivering greater plaster bonding and fixing properties. It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.

Rib Metal Lath
High Bond Strength: The deep ribs allow the concrete or plaster to adhere more effectively, increasing the overall structural integrity. Flexibility
Rib Mesh can be easily shaped and adapted to complex forms, making it ideal for irregular or curved surfaces. Lightweight: Despite its strength,
Rib Mesh is relatively lightweight, reducing the load on structural elements and simplifying handling on-site. Efficient Installation:
The design reduces the need for extensive support structures during installation, cutting down on labor and material costs.

Customization Options
Rib Height and Spacing: Rib dimensions can be customized to meet specific load-bearing requirements or to optimize concrete
adhesion.
Thickness and Material: Thicker steel and different grades (galvanized, stainless) can be used based on structural needs
and environmental conditions.
Surface Treatment: Additional treatments, such as powder coating or epoxy coatings, can be applied for enhanced durability in specific environments.

3. Specification

Specification
Depth
Sheet size
Thickness
Materials
3/8''
27''x97''
3.4LB/sq yard
Galvanized
3/4''
27.5''x97''
5.4kg/sheet
Galvanized
19-20 mm
200 mm width
0.4-0.5 mm
Galvanized
19-20 mm
300 mm width
0.4-0.5 mm
Galvanized
19-20 mm
400 mm width
0.4-0.5 mm
Galvanized
19-20 mm
500 mm width
0.4-0.5 mm
Galvanized
19-20 mm
600 mm width
0.4-0.5 mm
Galvanized
19-20 mm
700 mm width
0.4-0.5 mm
Galvanized
10 mm
600x2200-2500 mm
0.25-0.5 mm
Galvanized
4 mm
600x2200-2500 mm
0.25-0.5 mm
Galvanized
