Specifications
Brand Name :
QiJie
Model Number :
xx-01001
Certification :
ISO9001:2008, SGS, CE
Place of Origin :
CHINA
MOQ :
50 rolls
Price :
USD9.90-USD45.90
Payment Terms :
TT,LC,
Supply Ability :
1000 rolls/per day
Delivery Time :
10-25days
Packaging Details :
Plastic film or water proof paper
Material :
Carbon steel wire
Mesh Opening :
12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter :
0.4mm - 1.5mm
Roll Width :
0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length :
15M,30M,50M ect
Surface Treatment :
Hot dipped galvanized or electric galvanized
Application: :
Fence Mesh
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

2.0 - 6.0mm Wire Diameter Welded Wire Mesh 0.8mm China Manufacturers 2X2 Steel Mesh Panels​

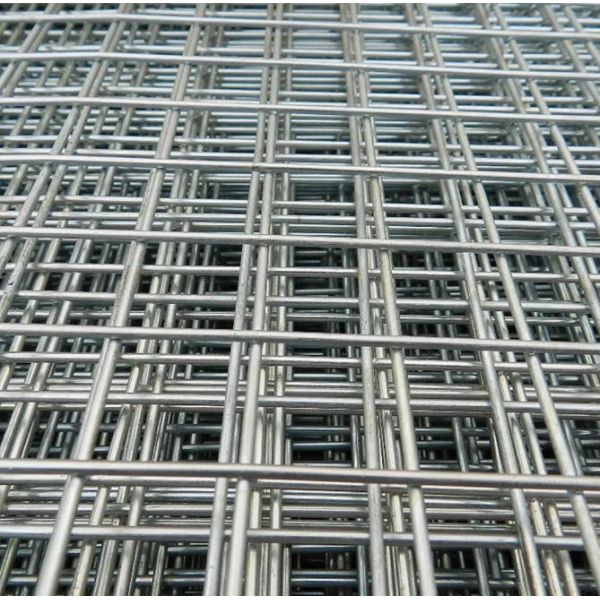

Welded Wire Mesh Panel is made of superior quality welded wire mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on. Welded Wire Mesh Panel mainly serves as fencing mesh.

Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels

Property: Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Thickness(mm) SWD(mm) LWD(mm) Strand(mm) Width(m) Length(m) Weight(kg/m 2 )
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Galvanized Welded Wire Mesh

Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.

Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.

Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized(after welding) welded wire mesh, hot deep galvanized(after welding) welded wire mesh.

And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.

Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.

Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring,poultry farm, oil, chemical, machines and exports etc.

Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
