High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
Specifications
Brand Name :
Qijie
Model Number :
Qijie Decorative mesh
Place of Origin :
CHINA HEBEI
MOQ :
5 m²
Price :
30USD/m²
Payment Terms :
D/P
Supply Ability :
1000m²/month
Delivery Time :
10 days
Packaging Details :
wooden pallets
Technique :
Woven,Welded Mesh
Application :
Decorative wire mesh
Type :
Weave Wire Mesh,Crimped Wire Mesh
Material :
Stainless Steel Wire,316,304
Weave style :
Plain Weave
Sample :
According to size
Description

Basic Info.

Model NO.
Decorative Mesh-020
Application
Protecting Mesh, Construction Wire Mesh, Decorative Mesh, Window Curtain, Fence Mesh
Hole Shape
Diamond
Surface Coating
Electrophoresis
Onauthenticati
ISO9001
Raw Material
Aluminium Wire
Customize or Not
Support Customization
Whether Design Services Are Provided
Design Procurement
Whether to Provide Samples?
Offer Sample
Quality Assurance or Not
Quality Assurance
Whether to Provide Instructions
Provide Specification
OEM or Not
OEM
ODM or Not
ODM
Function
Partition/Decoration
Accessories
Accessories
Technical Training
Technical Training
Research and Development
Research and Development
Payment Method
Wire Transfer
Transport Package
Sea Transportation
Specification
6*6 8*8 10*10
Trademark
Qijie
Origin
China

Product Description


1, Material: Stainless steel, Galvanized iron wire,Brass wire, Copper wire, Bronze wire.

2, Standard fixing detail: Inserted round bar with eye-bolts; clamping profile.

3, Standard width: 2.5x1.25 m, 3x1 m, 4 m, 6 m, 8 m.

4, Characteristics: As a new material for decoration, this kind of mesh is constructed with solid rods and

cables; normally the material is stainless steel wire, aluminum and its alloy. By rods, the mesh can achieve

stability while the cables give flexibility to the mesh.

5, Usage: It is widely used as decoration and building covers outdoors. The curtain can be easily installed or

fixed into different shape.

6, Applications: It is applied for elevation, partition, ceiling in airport, hotel, theater, and exhibition.

The curtain can show different results as the changes the light, environment and looking angle

design
open area
cable wire dia.
cable pitch
bar dia.
bar pitch
thickness
wt

1
40%
1x1.8 mm
4 mm
1.5 mm
5.5 mm
5.1 mm
7.74kg/m2

2
43%
1x2.5 mm
6 mm
2 mm
8 mm
5.5 mm
7.87kg/m2

3
62%
2x2.75 mm
40 mm
4 mm
14.5 mm
9.5 mm
9.41kg/m2

4
37.20%
3x0.5 mm
3.5 mm
0.5 mm
1.4 mm
1.3 mm
2.4kg/m2

5
71%
3x1.6 mm
80 mm
2.5 mm
10 mm
5.7 mm
4.58kg/m2

6
65%
3x2 mm
80 mm
3 mm
10 mm
7 mm
6.67kg/m2

7
65.90%
3x2.75 mm
110 mm
4 mm
14.5 mm
10 mm
8.5kg/m2

8
67%
3x3 mm
110 mm
4 mm
14.2 mm
10 mm
8.6kg/m2

9
44.30%
4x0.75 mm
26.4 mm
1.5 mm
3 mm
3 mm
5.2kg/m2

10
62%
4x1 mm
36 mm
2 mm
6.6 mm
4 mm
4.55kg/m2

11
40%
4x2 mm
50 mm
3 mm
6 mm
7mm
11.2kg/m2

12
42%
4x2 mm
50 mm
3 mm
6 mm
7 mm
11.8kg/m2

Product Description

High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh

Introducing our High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh, a premium product designed to elevate the aesthetic appeal of any building. This Decorative Mesh/Curtain/Separate is made from top-grade stainless steel, ensuring durability and longevity. Its sleek and modern design adds a touch of sophistication to any exterior wall, making it perfect for commercial and industrial buildings. Our product is easy to install and maintain, making it a cost-effective solution for your architectural needs. Trust in our High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh to enhance the visual appeal of your building while providing a functional purpose.

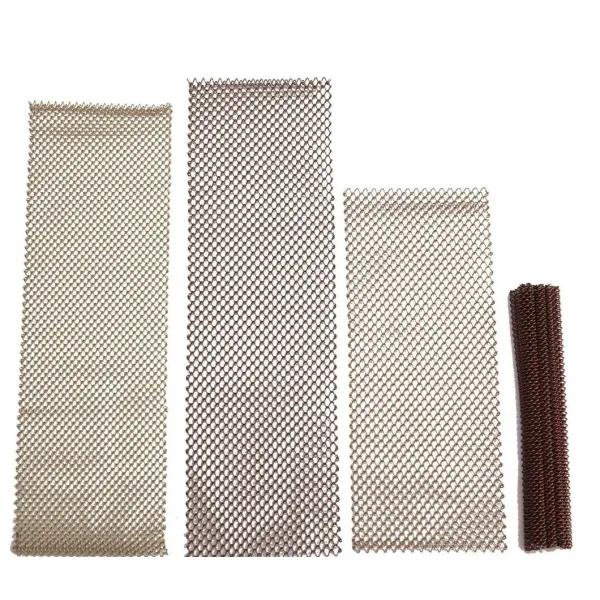

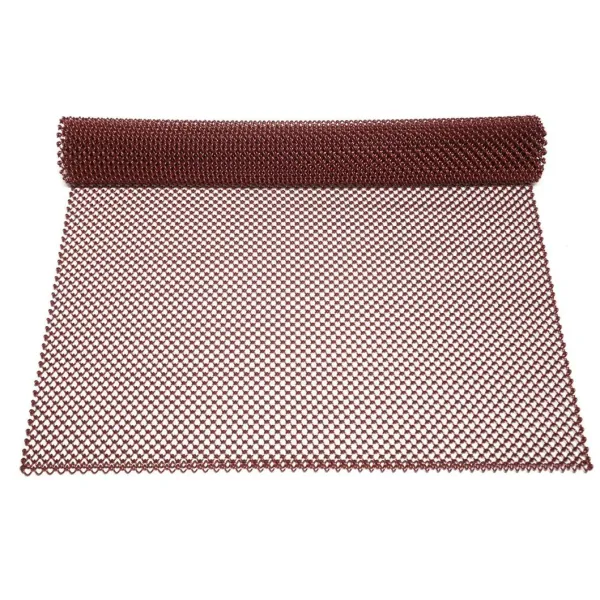

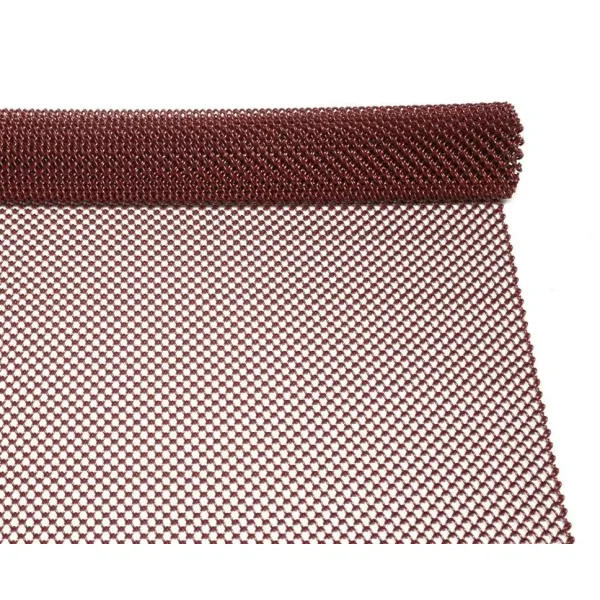

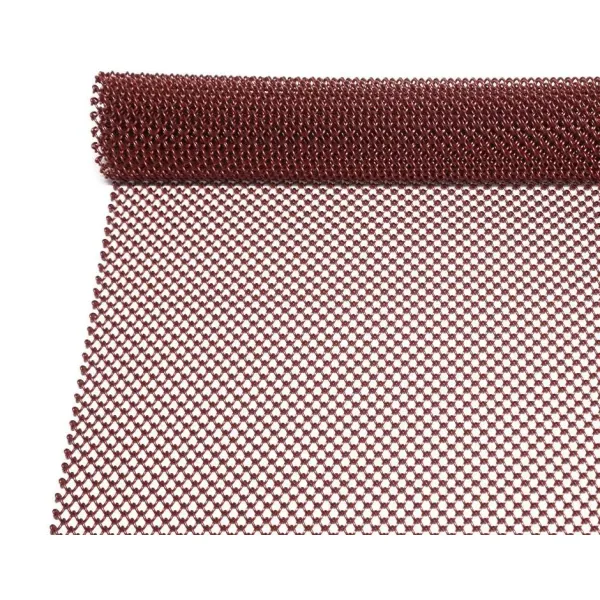

Detailed Photos

High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
High Quality Exterior Wall Decorative Architectural Stainless Steel Cable Rod Metal Wire Mesh
