Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain
Specifications
Brand Name :
Qijie
Model Number :
Qijie Decorative mesh
Place of Origin :
CHINA HEBEI
MOQ :
5 m²
Price :
30USD/m²
Payment Terms :
D/P
Supply Ability :
1000m²/month
Delivery Time :
10 days
Packaging Details :
wooden pallets
Aperture :
40X80mm/50X100mm
Factory Experience :
Over 20 years
Hole Pattern :
Hexagonal
Keyword :
Decorative wire mesh
Materials :
Stainless Steel 304,316 etc
Mesh Type :
Expanded Mesh,Flattened and Standard
Package :
Double layer iron pallets
Packing :
Pallets, Wooden Cases, etc.
Product :
Aluminum Ceiling Expanded Metal Mesh
Service :
Sample free
Shape :
Diamond hexagonal
Sheet Size :
1250*2050mm, 750*2050mm, 920*2050mm
Technique :
Perforated,Welded Mesh,Woven
Weave Characteristic :
Weave Characteristic
Wide :
1M/1.2M (Customizable)
Description

Product Description

Model NO.
Qijie
Wire Mesh Width
1m
Technique
Woven
Nickels
2%
Certification
ISO9001
Mesh Count
1mesh-24mesh
Width
0.5~3.0m(as Request)
Length
0.5~30m
Wire Diameter
0.5mm~4.8mm
Hole Size
3mm~50mm
Mesh Type
Square Mesh and Rectangle Mesh
Edge Type
Plain, Bent and Reinforced Hooked
Weaving Method
Double Crimped, Flat Top Crimped, Intermediate CRI
Stainless Steel
304, 304L, 316, 316L
•tcopper and Copper Alloys
Copper, Brass, Bronze, Phosphor Bronze
Feature
Smooth and Bright Surface, Attractive Appearance V
Applications
Lamp Decorations, Ceiling Panels, Wall Covering, M
Packing
Woven Bag; Wooden Case; Pallet.
Color
Silver, Gold, Copper or Natural Color. Other Colo
Sample
Free
Transport Package
Roll, Bulk or Pallet
Specification
Wire Diameter: 0.5mm~4.8mm
Trademark
YHY
Origin
Hebei Province, China
HS Code
7314490000
Production Capacity
50000 Square Meter/Square Meters Per Month
brass Decorative Mesh - Flat Woven Mesh and Wired Glass for Decorations

Copper and brass decorative mesh, resistant to acid, alkali, wear, corrosion, abrasion, salt air, brine, has stable structure. It's made of different technologies and types and we are quite pleased to offer you various types according to your applications.

Copper and brass woven wire mesh is one of the decorative meshes. It can be made into various patterns and designs and used as all kinds of decorations:

Interior applications: walls, barriers, merchandising displays, room divider, curtains, security screens and light diffusers.
Exterior applications: living walls, canopies, claddings, partitions, curtains and facades.
Besides, our manufacturing methods allows panel sizes, with unlimited width and length, to be limited only by shipping restrictions and our copper and brass decorative mesh has a series of gauges, scales, finishes. Therefore, you can choose from many aspects according to your applications.

Note: customized specifications and styles according to your requirements.

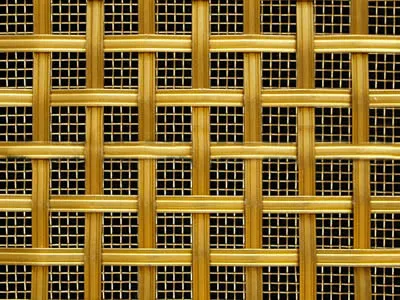

LS-01: Brass decorative mesh with square grilles.
Material: brass.
Wire size: 3 mm, 5 mm.
Reeded: reeded, plain.
Hole size: 6, 8, 10, 13, 19, 25 mm.
Hole shape: square, diamond.
Back mesh: coarse, none, fine.
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

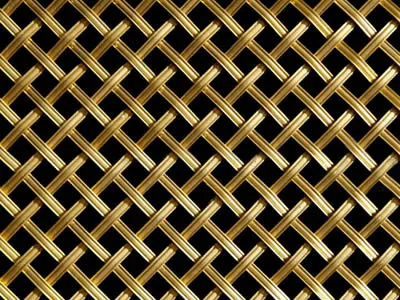

LS-02: Brass decorative mesh with diamond grilles
Material: brass.
Wire size: 3 mm, 5 mm.
Reeded: reeded, plain.
Hole size: 6, 8, 10, 13, 19, 25 mm.
Hole shape: square, diamond.
Back mesh: coarse, none, fine.

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

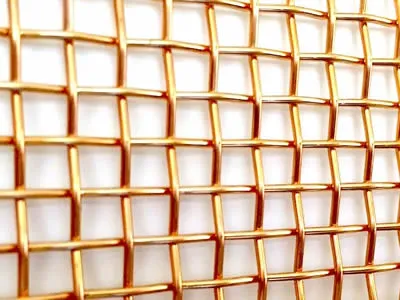

LS-03: Brass common crimped decorative mesh
Material: brass.
Opening shape: square, rectangle, rhomb.
Width: < 6.5 m.
Length: 10 - 100 m/roll.
Mesh: 1-20.
Diameter: 0.315-4.8 mm.
Aperture: 0.1-10 mm.

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

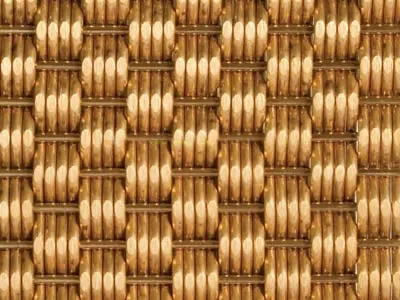

LS-04: Brass tidal opaque decorative mesh
Material: brass.
Warp diameter: 1.5 mm.
Warp pitch: 6.7 mm.
Weft diameter: 2.0 mm ×1.
Weft pitch: 2 mm × 4.
Weight: 16 kg/m2.
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

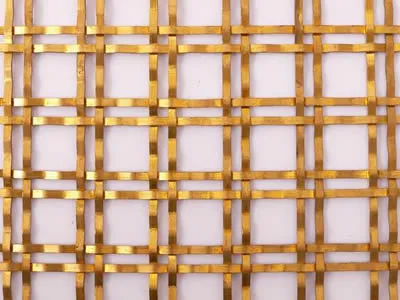

LS-05: Two flat wires woven decorative mesh
Material: brass.
Wire width: 1.2 mm.
Aperture: 4 - 30 mm.
Thickness: 3.6 mm.
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

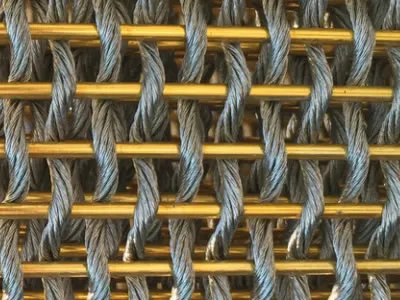

LS-6: Decorative brass cable mesh
Material: brass
Wire diameter: 0.8, 2,4 mm.
Rod pitch: 1.6, 2, 6, 10, 15 mm.

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

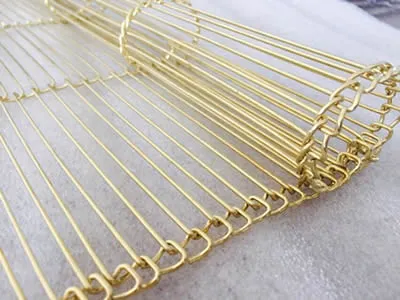

LS-7: Decorative brass conveyor belt curtain
Material: brass.
Wire diameter: 1 mm.
Hole width: 4 mm.
Hole length: 45 mm.
Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

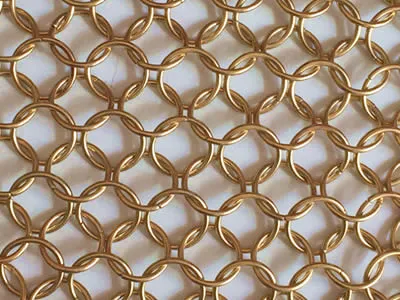

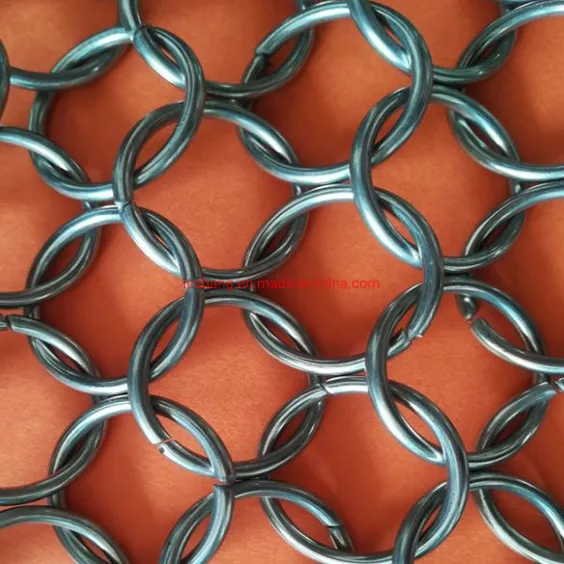

LS-8: Chain mail decorative mesh
Wire diameter: 0.5-2 mm.
Ring diameter: 3-22 mm.

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain



LS-9: Honeycomb decorative mesh
Wire diameter: 0.6-1.2 mm.
Aperture: 5-10 mm.

Outdoor Gold Brass Metal Spiral Stainless Steel Building Elevator Decorative Woven Wire Mesh Sheet Panel Curtain
