High Quality Manganese Wear-Resisting Vibrating Screen Mesh
High Quality Manganese Wear-Resisting Vibrating Screen Mesh
High Quality Manganese Wear-Resisting Vibrating Screen Mesh
High Quality Manganese Wear-Resisting Vibrating Screen Mesh
Specifications
Brand Name :
Xmesh
Model Number :
vibrating screen mesh
Certification :
SGS
Place of Origin :
Hebei ,China
MOQ :
10 pcs
Payment Terms :
TT/LC
Supply Ability :
1000 pcs per month
Delivery Time :
31-45 days
Packaging Details :
Pallets
Material :
STAINLESS STEEL WIRE
Type :
Crimped Wire Mesh
Application :
Woven Wire Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Surface Treatment :
galvanized or painted.
Mesh Size :
1mm - 100mm.
Hole Type :
square, rectangular and long slot.
Opening Size :
2.0 - 80.0 mm
Wire Diameter :
0.8 - 8 mm
width :
1.2m
length :
30m
hook :
hook with steel sheet
hook degree :
60degree
Weaving type :
Double Crimp
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

High Quality Manganese Wear-Resisting Vibrating Screen Mesh​

Product Description

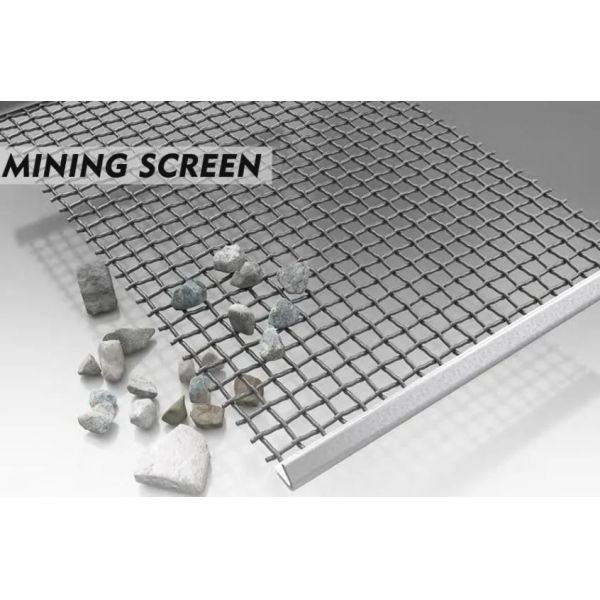

65MN Crimped Wire Screen Mesh, also named stone crusher screen Vibrating Sieving Screen Mesh, Crusher Sieving Screen Mesh. Mining Screen Mesh is usually made of 65MN wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance, and long service life make it obtain accurate screening results and services at best price, so 65MN crimped wire mesh is a perfect choice for stone crusher screens and mining screens.
1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
High Quality Manganese Wear-Resisting Vibrating Screen Mesh
Products 65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made)
Feature 65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry.
Material grade 65Mn Steel
Aperture/opening 1.0mm-150mm
Wire diameter 0.5-12.7mm
standard sheet size 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Weaving type Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage
Width width up to 6 meters
Length length up to 100 meters.
surface finish Mill finish, Anti-rust oil spraying, PVC coating
Application Heavy Screening & Sieving Of Coal Mines.
Stone Quarry Works
Wire Mesh For Pig Breeding
Coal Mine
Cement Plant
The Cement Factory Petroleum
Glass Factory
Hardware Products
Standards Material GBT 1222-2016
Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60

0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60

Technical Parameters of Stainless Steel Wire
Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0

High Quality Manganese Wear-Resisting Vibrating Screen Mesh

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.High Quality Manganese Wear-Resisting Vibrating Screen Mesh

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

High Quality Manganese Wear-Resisting Vibrating Screen Mesh

High Quality Manganese Wear-Resisting Vibrating Screen Mesh
