PU Screen Panel Polyurethane Modular Vibrating Screen Mesh
PU Screen Panel Polyurethane Modular Vibrating Screen Mesh
PU Screen Panel Polyurethane Modular Vibrating Screen Mesh
PU Screen Panel Polyurethane Modular Vibrating Screen Mesh
Specifications
Brand Name :
qijie
Model Number :
polyurethane screen mesh
Certification :
polyurethane screen mesh
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs
Delivery Time :
15-18days
Packaging Details :
wood case
Hole Size :
2.5mm - 130mm
Application :
Mining, quarrying, mineral processing
Surfacetreatment :
Galvanized, painted, or coated
Features :
Even mesh, strong structure
Technic :
Woven mesh
Free Sample :
Yes
Hook :
hook with steel sheet
Install :
hooked
Elastic Resilience :
34 Percent
Specification :
1.5M*2.0M ； 2M*3M ； 3M*2.5M
Surface Treatment :
galvanized or painted.
Installationmethod :
Bolted or hooked onto screen frames
Hole Shape :
rectangle
Surface :
natural powder coating
Productname :
Mining Screen Mesh
Description

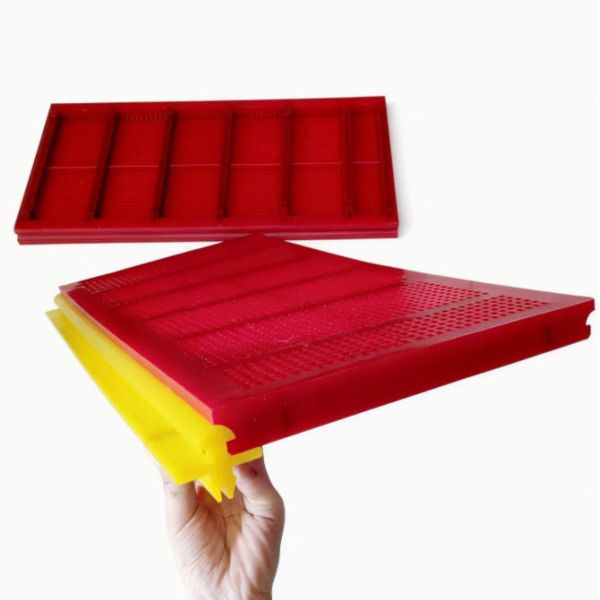

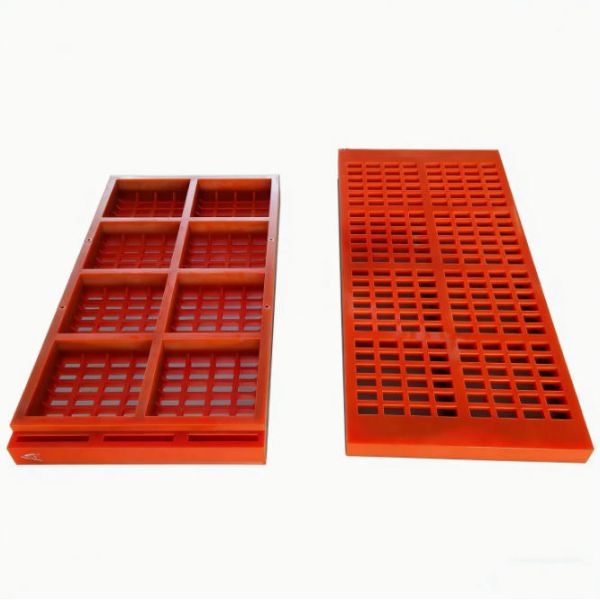

PU Screen Panel Polyurethane Modular Vibrating Screen Mesh​
Description:
P.U Flip Flow Screen Mats are engineered for high-performance material separation in industries such as mining, coal processing, recycling, and aggregates. Made from premium polyurethane (PU) elastomers reinforced with steel wire cores, these screen mats combine exceptional elasticity, abrasion resistance, and durability. Designed to withstand extreme vibration forces (up to 50G), they outperform traditional metal and rubber screens, delivering up to 8-10x longer lifespan and superior screening efficiency for dry or wet materials.
PU Screen Panel Polyurethane Modular Vibrating Screen Mesh
Material Polyurethane elastomer with steel wire reinforcement
Aperture Range 0.1-170mm (customizable)
Max. Operating Temperature -40°C to +80°C
Vibration Resistance Up to 50G acceleration
Certifications ISO-compliant, RoHS, and REACH standards
Key Features & Benefits

√ Unmatched Durability & Load Capacity

Steel-Reinforced Structure: Integrated steel wire skeleton and high-grade PU elastomers ensure high tensile strength and resistance to deformation, supporting heavy loads and harsh operating conditions.

Extended Service Life: Lasts 8-10x longer than metal screens and 3x longer than stainless steel alternatives, reducing replacement frequency and downtime.

√ Anti-Clogging & Self-Cleaning Design

140° Tapered Apertures: Unique hole geometry prevents material buildup, ideal for sticky or damp substances like coal, wet ores, and sludge.

Dynamic Self-Cleaning: Secondary harmonic vibrations during operation dislodge trapped particles, maintaining 95%+ screening efficiency.

√ Noise Reduction & Safety Compliance

Reduces operational noise by 5-20 dB compared to metal screens, ensuring compliance with workplace safety regulations.

Flame-retardant, non-toxic, and resistant to oils, chemicals, and extreme temperatures (-40°C to +80°C).

√ Easy Installation & Low Maintenance

Embedded Bolt-Free Design: Utilizes hook-type or tension-clamped mounting systems (e.g., 90° side clamps) for quick installation and minimal maintenance effort.

Lightweight (density: 1.32 kg/m³) reduces strain on vibrating equipment, lowering energy consumption by up to 30%.

√ Customizable Solutions

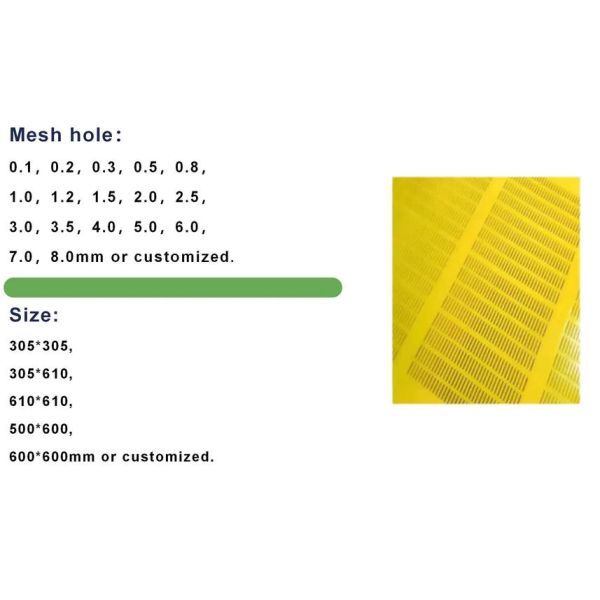

Aperture Sizes: Ranging from 0.1mm to 170mm, with options for square, round, or rectangular holes.

Compatible with all vibrating screen models, including flip-flow and linear motion systems.
Applications:
Mining & Mineral Processing – Screening, grading, and dewatering of ores, coal, sand, and aggregates.
Quarry & Construction – Crushed stone sorting, sand washing, and gravel classification.
Industrial Filtration – Chemical, fertilizer, and pharmaceutical powder separation.
Environmental Projects – Tailings dry discharge, sludge dewatering, and recycling operations.
Infrastructure & Landscaping – Synthetic turf for construction fencing, erosion control, and decorative use.
Customization Service:
We support full customization based on your specific requirements, including:
Aperture size, shape, and layout
Material type and thickness
Dimensions and mounting design
Special patterns (e.g., stepped, ribbed, perforated)
Custom orders can be produced according to provided drawings or samples, ensuring perfect fit and performance for your equipment.
