Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
Specifications
Brand Name :
qijie
Model Number :
Corrugated Prepainted Roofing Sheet
Certification :
Corrugated Prepainted Roofing Sheet
Place of Origin :
China
MOQ :
10tons
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10tons
Delivery Time :
15-18days
Packaging Details :
pallet
Material :
steel
Application :
Mold & Dies, Ship Plate, Boiler Plate, Container Plate, Flange Plate
Technique :
Cold Rolled
Special Use :
Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
Normal Size :
665/800/840/900/1050
Thickness :
0.12-1.2mm
Description

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel

GALVANISED CORRUGATED STEEL SHEETRoofing Sheet is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to insulate it from the elements. Most of the
corrugated roofing and siding products seen today and for many years past are made with a galvanized finish. It is most commonly used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing.

Basic Info
Product Name
Galvanized Steel Sheet/Coil / Galvalume Steel Sheet/Coil
Model NO.
SGCC, DX51D+Z, S350GD+AZ, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, S280GD+Z, S550GD+Z, AZ150
Trademark
HXHSTEEL, Baosteel, Shagang
Origin
China
MOD
50 Tons
Delivery Time
Stock: 7-10 days; Customized: 15-21 days (Subject to quantity)
Price Terms
FOB, CFR, CIF
Payment Terms
T/T, L/C
Production Capacity
200,000 Tons/Year
Packing Clause
Standard export seaworthy packing
Terms of Shipment
Sea freight
Port
Shanghai, Tianjin
HS Code
72104900 (Galvalume) / 72103000 (Galvanized) (Select based on coating type)
Tech Specs
Substrate Material
Steel
Substrate Grade
SGCC, SPCC, DC51D, DX51D, DX52D, SGHC, SAPH370, SAPH400, SPHC, SS330, SS400, A653 CS Type B
Specification
Thickness: 0.12 - 6.0 mm; Width: 600 - 1850 mm (Customizable); Length: Customizable (Sheet); Zinc Coating: 30 - 600 g/m²; Coil Wt: 3 - 8 tons; Coil ID: 508mm / 610mm
Zinc Coating Weight
Regular spangle, Minimal spangle, Zero spangle, Large spangle
Coating System
Hot-dip Galvanizing (on hot-rolled or cold-rolled substrate)
Surface Treatment
Galvanized, Galvalume, Color coated, Hot-dip, Passivated/Non-passivated, Oiled/Non-oiled, Skin passed
Color Standard
Excellent corrosion resistance, good formability, aesthetic appeal, paintability, long service life.
Product Features
China: GB/T2518, GB/T12754, GB/T14978
USA: ASTM A653, ASTM A792, ASTM A875, ASTM A755, ASTM A924
Japan: JIS G3302, JIS G3312, JIS G3321, JIS G3350, JIS G3466
Germany: DIN EN 10346, DIN 17162, DIN 59232, DIN EN 10169, DIN EN 10143
International: ISO 3575, ISO 5002, EN 10346, EN 10169, EN 10142
Std & Cert
Standard
ISO9001, RoHS, IBR
Certificate
Mill Test Certificate (MTC)
Certificate of Quality
Third-party inspection accepted (SGS, BV, etc.)
Inspection

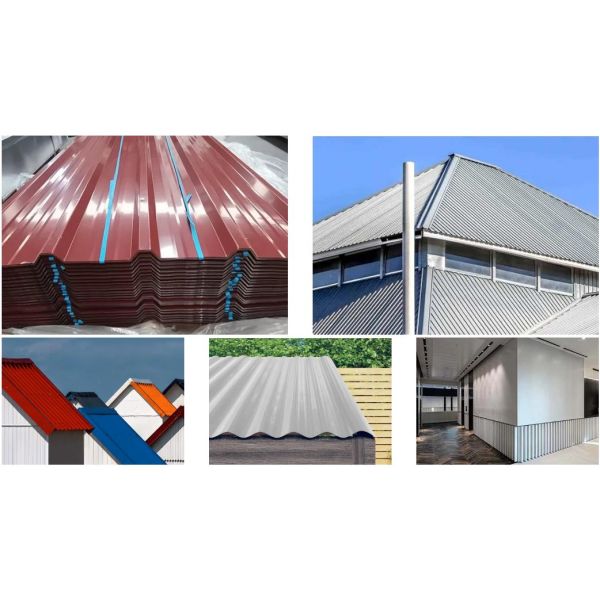

Construction: Roofing, wall cladding, garage doors, rainwater systems; Appliances: Appliance housings, inner panels; General: Storage containers, electrical cabinets, HVAC ducts, agricultural buildings, automotive parts, office furniture, industrial shelving, solar panel backing.
Application
Usage/Application
Slitting, shearing, bending/forming
Processing Service
Slitting, Cutting, Profiling, Blanking
riod, the more using time.6.paint your logo for free

FEATURES OF CORRUGATED SHEETS:

Corrugated sheets are wider in length, so there are fewer joints. This results in less wastage, less overlap, less chance of leaks, and lower labour costs
* Strength: Sheets are stronger and also prevent fine cracks around bolts

* Aesthetics: Smooth surface with even gloss

* IS 277 Compliant: Each sheet undergoes rigorous quality testing to ensure superior quality

* Weatherproof: Sheets withstand all kinds of weather, be it heavy rain, salty sea breeze, humid coastal areas, cold snow, or hot weather.

* Excellent Corrosion Protection: Sheets are made with anti-corrosion technology to prevent corrosion and extend the life of your roof.

* Wide Range of Products: Available in multiple thicknesses (0.09mm to 0.80mm) and multiple width options (720mm to 1220mm) as required. The wide width range allows for minimum overlap, which reduces leak points and saves on fixing fittings, allowing for better planning.

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel

MANUFACTURING PROCESS:

1. HR Coil
2. HR Slitter
3. Pickling Line
4. Cold Rolling Mill
5. CR Trimming line
6. Continuous Galvanising line
7. Cut to Cut-to-length machine & Galvalume Coils
8. Corrugation Machine
9. Corrugated Sheets

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
