Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
Specifications
Brand Name :
QIJIE
Model Number :
QJ-004
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 rolls
Price :
discuss
Payment Terms :
TT/LC
Supply Ability :
1000 rolls per week
Delivery Time :
15 - 20 days
Packaging Details :
as requirement
Technique :
Woven
Material :
Stainless Steel Wire,316,304
Weave style :
Plain/Twill Weave
Product name :
Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire diameter :
Requirement
Width :
Usually 1M
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

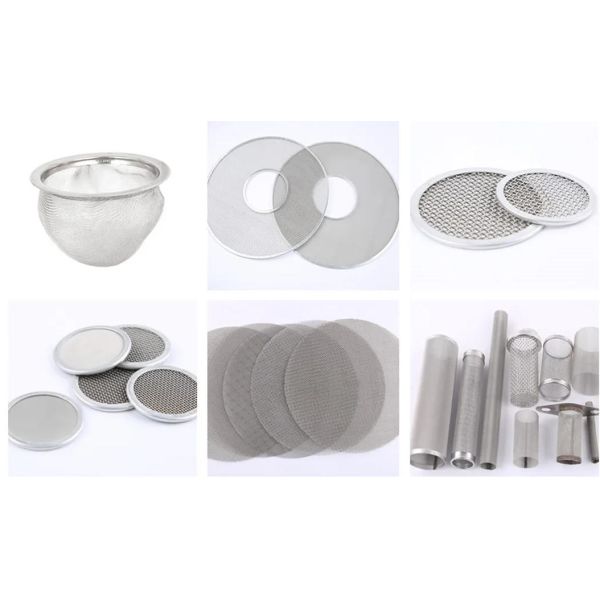

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
We manufactures custom high-performance filters and filtration products for all industries such as filter wire mesh, wire cloth filters, and material-specific filters like stainless steel mesh filters. Using our high-quality wire cloth, welded wire mesh, annealed and diffusion bonded wire mesh; we offer stamping, fabricating and finishing services to manufacture production-ready filters for your applications.
Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh
Specifications of plain weave stainless steel wire mesh:
  • Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
  • Mesh patterns: square, rectangle.
  • Surface treatment: pickling and passivation, polishing.
  • Packing:
    • Rolls wrapped with craft paper and then put into carton or on pallet;
    • Sheets in wooden boxes or on pallets.
Plain weave and twill weave stainless steel wire mesh reference specification:
Specification list of Woven Wire Cloth
Meshes Per Linear Inch Diameter of Wire Width of Opening Open
Area, %
Inches mm Inches mm
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.023 0.58 0.048 1.22 45.2
14 x 14 0.020 0.5 0.051 1.30 51.0
16 x 16 0.028 0.7 0.035 0.89 30.5
16 x 16 0.023 0.58 0.040 1.01 39.9
16 x 16 0.018 0.45 0.045 1.14 50.7
18 x 18 0.020 0.5 0.036 0.91 41.1
18 x 18 0.018 0.45 0.038 0.96 48.3
20 x 20 0.023 0.58 0.027 0.68 29.2
20 x 20 0.020 0.5 0.030 0.76 36.0
20 x 20 0.018 0.45 0.032 0.81 41.0
20 x 20 0.016 0.40 0.034 0.86 46.2
24 x 24 0.014 0.35 0.028 0.71 44.2
28 x 28 0.010 0.25 0.026 0.66 51.8
30 x 30 0.013 0.33 0.020 0.50 37.1
30 x 30 0.012 0.30 0.021 0.53 40.8
35 x 35 0.012 0.30 0.017' 0.43 33.8
35 x 35 0.010 0.25 0.019 0.48 42.4
40 x 40 0.014 0.35 0.011 0.28 19.3
40 x 40 0.012 0.30 0.013 0.33 27.4
40 x 40 0.010 0.25 0.015 0.38 36.0
40 x 40 0.0095 0.24 0.016 0.40 38.4
50 x 50 0.009 0.23 0.011 0.28 30.3
60 x 60 0.0075 0.19 0.009 0.22 30.5
70 x 70 0.0065 0.17 0.008 0.20 29.8
80 x 80 0.0070 0.18 0.006 0.15 19.4
80 x 80 0.0055 0.14 0.007 0.17 31.4
90 x 90 0.0055 0.14 0.006 0.15 25.4
100 x 100 0.0045 0.11 0.006 0.15 30.3
120 x 120 0.0040 0.10 0.0043 0.11 26.6
120 x 120 0.0037 0.09 0.005 0.12 30.7
150 x 150 0.0026 0.066 0.0041 0.10 37.4
165 x 165 0.0019 0.048 0.0041 0.10 44.0
180 x 180 0.0023 0.058 0.0032 0.08 33.5
180 x 180 0.0020 0.050 0.0035 0.09 41.1
200 x 200 0.0020 0.050 0.003 0.076 36.0
200 x 200 0.0016 0.040 0.0035 0.089 46.0
220 x 220 0.0019 0.048 0.0026 0.066 33.0
230 x 230 0.0014 0.035 0.0028 0.071 46.0
250 x 250 0.0016 0.040 0.0024 0.061 36.0
270 x 270 0.0014 0.040 0.0022 0.055 38.0
300 x 300 0.0012 0.030 0.0021 0.053 40.1
325 x 325 0.0014 0.040 0.0017 0.043 30.0
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5
Duth weaving stainless steel wire mesh reference specification:
mesh wire dia (MM) Material (AISI)
12 X 64 0.58/0.40 304 316
24 X 110 0.36/0.25 30.316
14 X88 0.50/0.33 30.316
30 X150 0.18/0.14 30.316
40 X200 0.14/0.11 30.316
50 X250 0.10/0.071 30.316
80 X700 0.06/0.05 30.316
165 X800 0.071/0.040 30.316
165 X1400 0.05/0.032 30.316
200 X1800 0.05/0.03 30.316
325 X2300 0.030/0.025 316L
400 X2800 0.030/0.02 316L

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

Applications:

  • Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;
  • Made into window screen, fruit basket, infill panel, etc
  • Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

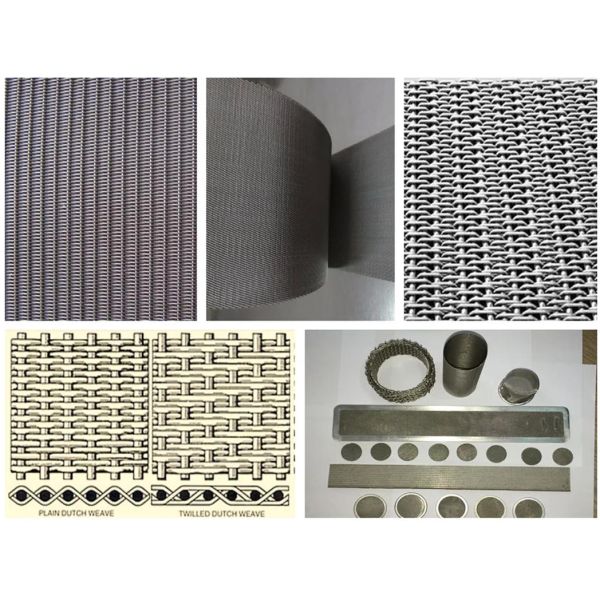

Stainless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

Specifications of Stainless Steel Plain Dutch Wire Mesh Specifications of Stainless Steel Twill Dutch Wire Mesh
Mesh/Inch (warp×weft) Wire Dia. warp×weft(mm) Normal size (μm) Effective area% Weight kg/sq.m Thickness (mm) Weft × Warp (inch) Aperture Size (μm) Available Area (%) Thickness (mm)
7×44 0.71×0.63 319 14.2 5.55 1.97 20 × 270 119 17.6 0.65
8×45 0.8×0.6 310 15.5 5.7 2 20 × 200 118 12.1 0.915
8×60 0.63×0.45 296 20.3 4.16 1.53 24 × 300 110 19.6 0.64
8×85 0.45×0.315 275 27.3 2.73 1.08 20 × 150 101 7.5 1.16
10×90 0.45×0.28 249 29.2 2.57 1.01 30 × 340 89 17.9 0.6
10×76 0.5×0.355 248 21.8 3.24 1.21 30 × 270 77 11.2 0.68
12×86 0.45×0.315 211 20.9 2.93 1.08 40 × 540 70 23.5 0.38
12×64 0.56×0.40 211 16 3.89 1.36 40 × 430 63 15.4 0.43
12×76 0.45×0.355 192 15.9 3.26 1.16 50 × 600 51 17.2 0.305
14×100 0.40×0.28 182 20.3 2.62 0.96 50 × 500 47 12 0.364
14×110 0.4×0.25 177 22.2 2.28 0.855 65 × 600 36 12 0.32
14×76 0.45×0.355 173 14.3 3.33 1.16 70 × 600 31 10.1 0.32
16×100 0.40×0.28 160 17.7 2.7 0.96 78 × 760 31 13.5 0.254
17×120 0.355×0.224 155 22.4 2.19 0.803 78 × 680 29 10.3 0.272
16×120 0.28×0.224 145 19.2 1.97 0.728 80 × 680 28 9.8 0.272
20×140 0.315×0.20 133 21.5 1.97 0.715 90 × 850 26 12.7 0.226
20×170 0.25×0.16 130 28.9 1.56 0.57 90 × 760 24 9.6 0.242
20×110 0.355×0.25 126 15.3 2.47 0.855 100 × 850 22 10 0.226
22×120 0.315×0.224 115 15.5 2.2 0.763 130 × 1500 21 18.6 0.135
25×140 0.28×0.20 100 15.2 1.96 0.68 100 × 760 20 7.4 0.242
24×110 0.355×0.25 97 11.3 2.6 0.855 130 × 1200 18 12 0.161
28×150 0.28×0.18 92 15.9 1.87 0.64 130 × 1100 17 9.4 0.171
30×150 0.25×0.18 82 13.5 1.79 0.61 150 × 1400 15 11.4 0.143
30×140 0.315×0.20 77 11.4 2.21 0.715 160 × 1500 15 12.4 0.135
35×190 0.224×0.14 74 16.8 1.47 0.504 165 × 1500 14 11.4 0.135
35×170 0.224×0.16 69 12.8 1.62 0.544 174 × 1700 13 12.9 0.127
40×200 0.18×0.135 63 15.4 1.24 0.43 165 × 1400 13 8.8 0.143
50×250 0.14×0.11 50 15.2 1 0.36 174 × 1400 11 7.4 0.143
60×500 0.14×0.055 51 34.1 0.7 0.252 203 × 1600 10 9.3 0.114
50×270 0.14×0.10 50 15.2 0.98 0.34
65×390 0.125×0.071 42 19.1 0.78 0.267
60×300 0.14×0.09 41 14.1 0.96 0.32
80×700 0.125×0.04 40 38.1 0.6 0.205
60×270 0.14×0.10 39 11.2 1.03 0.34
77×560 0.14×0.05 38 27.5 0.74 0.24
70×390 0.112×0.071 37 16.3 0.74 0.254
65×750 0.10×0.036 36 37.1 0.43 0.172
70×340 0.125×0.08 35 13.2 0.86 0.285
80×430 0.125×0.063 32 16.6 0.77 0.251
118×750 0.063×0.036 23 21.5 0.38 0.135
