Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Specifications
Brand Name :
QIJIE
Model Number :
QIJIE01
Place of Origin :
CHINA HEBEI
MOQ :
1000pcs
Price :
USD 100-200
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000PCS/DAYS
Delivery Time :
10 days
Hole shape :
Square
Wire gauge :
2.0-4.0mm
Application :
Construction Wire Mesh
Material :
Low-Carbon Iron Wire,Galvanized Iron Wire
Type :
Welded Mesh
Aperture :
1/2"
Surface treatment :
Hot Dipped Galvanized
Width :
0.5-2m,0.5-1.8m,300mm-2500mm,0.5m to 2.2m,1.2m
Length :
5m
Usage :
building,construction
Packing :
Pallet
Product name :
welded wire mesh,Galvanized / PVC Coated Welded Wire Mesh
Color :
Silver
Description

Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized

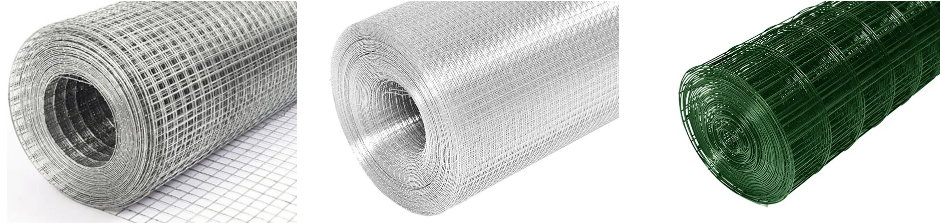

Galvanized

Hot dipped galvanized before weldingHot dipped galvanized after welding Electro galvanzied before weldingElectro galvanzied after welding

Stainless steel
Stainless steel welded mesh is widely used in various fields such as mining, construction, and food industry due to its excellent corrosion resistance and strength.
PVC
According to customer requirements, apply plastic coating. Common colors include green, black, yellow, etc
welded wire mesh rolls
Opening
Wire diameter
Available Width
1/4" x 1/4"
0.45mm-0.7mm
300mm-1830mm
3/4" x 3/4"
0.7mm-2.0mm
300mm-1830mm
3/8" x 3/8"
0.7mm-1.1mm
300mm-1830mm
5/8" x 5/8"
0.8mm-1.2mm
300mm-1830mm
1/2" x 1/2"
0.45mm-1.6 mm
300mm-1830mm
1" x 1"
0.7mm-3.0mm
300mm-2000mm
1" x 1/2"
0.8mm-1.6mm
300mm-1828mm
1-1/2" x 1-1/2"
0.7mm-3.5mm
300mm-1828mm
1" x 2"
1.6mm-2.1mm
300mm-1828mm
2" x 2"
0.7mm-4.0mm
300mm-2500mm
2" x 3"
1.5mm-3.5mm
300mm-2000mm
2" x 4"
2.0mm-4.0mm
300mm-1828mm
3" x 3"
1.0mm-4.5mm
300mm-2500mm
3" x 4"
1.5mm-4.5mm
300mm-2000mm
4" x 4"
1.0mm-4.5mm
300mm-2500mm
5" x 5"
2.5mm-4.5mm
300mm-2500mm
6" x 6"
2.5mm-4.5mm
300mm-2500mm

Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized

Opening
(inch)		 Opening
(mm)		 Wire Diameter Wire Diameter Panel Length Panel Width
1"x1" 25mmx25mm 14#-11# 2.0mm-3mm






1.0-5.0m






0.5-1.8m
2"x1" 50mmx25mm 14#-8# 2.0mm-4mm
2"x2" 50mmx50mm 14#-8# 2.0mm-4mm
3"x2" 75mmx50mm 14#-6# 2.0mm-5mm
3"x3" 75mmx75mm 14#-6# 2.0mm-5mm
4"x2" 100mmx50mm 14#-4# 2.0mm-6mm
4"x4" 100mmx100mm 14#-4# 2.0mm-6mm
5"x5" 125mmx125mm 14#-4# 2.0mm-6mm
6"x6" 150mmx150mm 14#-4# 2.0mm-6mm





Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized

Galvanized welded mesh panel
Hole size
Wire diameter
Panel sizes
In Inch
In mm
In mm
Common sizes :
3' x 6' , 4' x 8' , 5' x 10'
1 x 2m ,2 x 2.9m ,
2 x 4m
Other sizes can be made as request .
1/2'' x 1/2''
12.7 x 12.7mm
1.0mm-2.0mm
1'' x 1''
25.4 x 25.4mm
1.5mm-3.5mm
1'' x 2''
25.4 x 50.8mm
2.0mm-5.0mm
5/4'' x 5/4''
31.8 x 31.8mm
2.0mm-4.0mm
3/2'' x 3/2''
38.1 x 38.1mm
2.0mm-5.0mm
2'' x 2''
50.8 x 50.8mm
2.0mm-6.0mm
2'' x 3''
50.8 x 76.2mm
2.0mm-6.0mm
3'' x 3''
76.2 x 76.2mm
3.0mm-7.0mm
4'' x 4''
101.6 x 101.6mm
3.0mm-8.0mm
5'' x 5''
127 x 127mm
4.0mm-9.0mm
6'' x 6''
152.4 x 152.4mm
4.0mm-10.0mm

Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
