Roll Top fence is a popular welded mesh panel with a rolled top and bottom edge meaning no sharp or raw edges. Roll top fence also called BRC fence. It incorporates user friendly top and bottom "triangle" edges to give enhanced safety and rigidity to the fence. It is ideal for use in schools, parks and playgrounds, sports, stadiums, utilities etc.

BRC fence also called roll top fence in some region. Its main market is in Singapore and other southeast Asia countries. Chinese supplier called the BRC fence to be Korean fence because there also have a big market of BRC fence in South Korea.

Material: Low carbon steel wire, Galvanized wire
Surface treatment:
1. Hot dipped galvanized and powder coated
2. Electro galvanized and powder coated
3. Hot dipped galvanized
Color: Green RAL6005 and Black RAL9005. Other colors are available on request.
Powder coating: min. 100 micron

ROLL TOP MESH FENCE SYSTEM

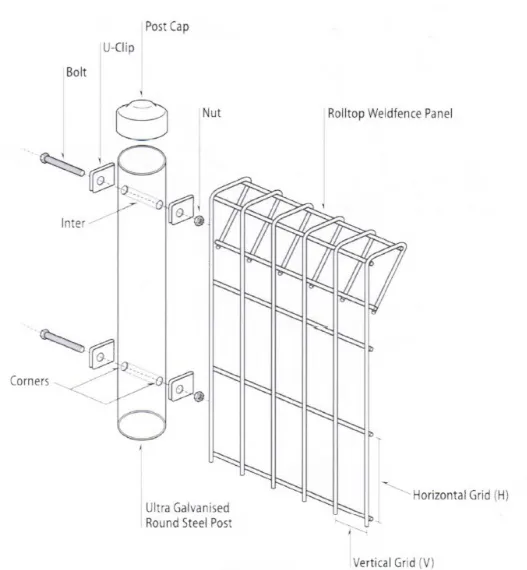

The Roll top mesh fence is completely fence system it is conclusive of fence panel, post, gates and fastener system ,the post is fitted with M8 threaded inserts for securing panels, with a wide range of heights available. posts come inclusive of top caps.

PANELS
Wire Diameter: 4mm,5mm,6mm,7mm,8mm
Hole size: 50mm*150mm; 50x200mm; 50x100mm; 75x100mm, 75x200mm; 75x300mm
Panel Size:
900mm(H)*2400mm/3000mm
1200mm(H)*2400mm/3000mm
1500mm(H)*2400mm/3000mm
1800mm(H)*2400mm/3000mm
2100mm(H)*2400m/3000mm

POST
Round post,
Size:48mm 60mm
Thickness:1.5mm 2.0mm 2.5mm 3.0mm

Square Post,
Size:50x50mm 60x60mm,80x80mm
Thickness:1.5mm 2.0mm 2.5mm 3.0mm
Accessories : U-Clip, Bolt & Nuts, Flat Bar etc

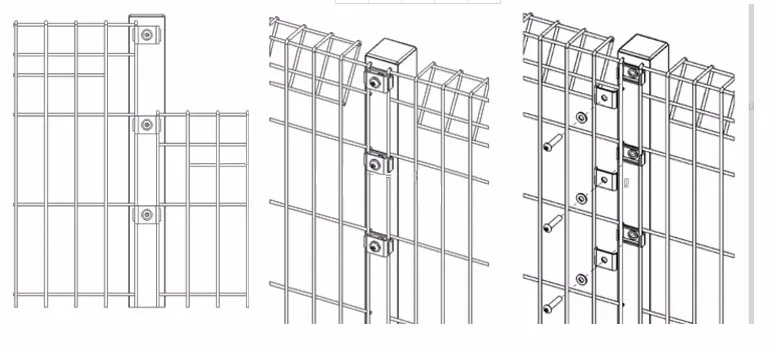

Installation:

Roll Top Fencing is a mesh fence system that has a rolled top for enhanced safety and rigidity of fence system Along the top side and bottom side of fence there are closed section located ,the roll top mesh fence system is most friendly system for install workers due to there are no any burrs or sharp,raw edges in the whole sheet of mesh fence.
