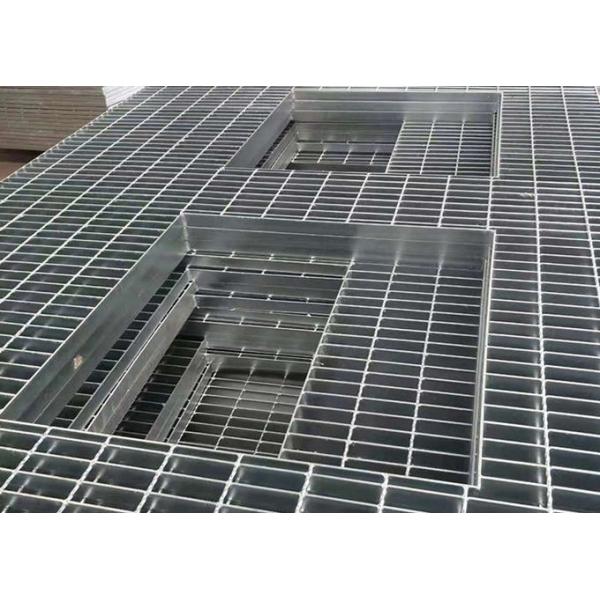

Painted Welded Steel Grating with Serrated Surface
Painted Welded Steel Grating with Serrated Surface
Painted Welded Steel Grating with Serrated Surface
Painted Welded Steel Grating with Serrated Surface
Specifications
Brand Name :
Dimpled Hole Metal Sheets
Model Number :
Dimpled Hole Metal Sheets
Place of Origin :
China
MOQ :
10pieces
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
1000pieces
Delivery Time :
15-18days
Packaging Details :
pallets
Chemical Composition :
Fe, C, Si, Mn, S, P
Alloy Or Not :
Non-Alloy
Project Solution Capability :
graphic design, 3D model design, total solution for projects
Application :
Villa
Surface Treatment :
Hot-DIP Galvanizing, Painting or Untreated
Grate length :
1000mm
Grate width :
800mm
Bearing bar width x thickness :
25x3mm
Bearing bar shape :
Plain, Serrated I bar type Style Steel Grating
Cross bar shape :
round,twisted,bar shape
Mesh size :
30x100mm
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Painted Welded Steel Grating with Serrated Surface​

Grating, also called steel grating or steel bar grating, refers to the steel bar grating made of mild carbon steel through surface treatment.

Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel.

Specifications of steel gratings
Bearing bar 20x5,25x3,25x4, 25x5,30x3,30x4,30x5,32x3,32x5,40x5,50...75x8mm, etc.
Bearing bar depth 25,30,30.16,32.5,34.3,40,50,60,62,65mm, etc.
Cross bar 5x5, 6x6,8x8mm (twisted bar or round bar)
Cross bar spacing 40, 50,60,65,76,100,101.6,120,130mm or as customers' requirement.
Flat bar type Plain, Serrated (tooth-like), l bar (l section)
Surface treatment Untreated
Hot dip galvanized
Cold dip galvanized
PVC coated
Powder coated
Note:
1.Special sizes avaliable at request.
2.Packing:in plastic in rolls. Custom packing available at request.

metal walking grates introduction-- galvanized road drainage grates

Bearing bar type Flat bar I bar Serrated bar
Cross bar type Twisted bar Round bar flat bar
Production process welded Pressure locked
Surface treatment Self-colour Galvanized painted
application Platform walkway&floor Trench cover Steel stair treads
Suspended ceiling Barrier fence

bearing bar types:

surface treatment: mill finish,hot dip galvanized,painted

steel grating standard-- galvanized road drainage grates

Steel Grating Standard
Steel Grating Standard Steel Standard Galvanizing Standard
China Standard YB/T 4001.1-2007 GB700-88 GB/T13912-2002
USA Standard ANSI/NAAMM (MBG531) ASTM (A36) ASTM (A123)
U.K. Standard BS4592 BS4360 (43A) BS729
Australia Standard AS1657 AS3679 AS1650
Deutsche Standard DIN24537 DIN17100-80 DIN50976

Painted Welded Steel Grating with Serrated SurfacePainted Welded Steel Grating with Serrated SurfacePainted Welded Steel Grating with Serrated Surface
