65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
Specifications
Brand Name :
Xmesh
Model Number :
vibrating screen mesh
Certification :
SGS
Place of Origin :
Hebei ,China
MOQ :
10 pcs
Payment Terms :
TT/LC
Supply Ability :
1000 pcs per month
Delivery Time :
31-45 days
Packaging Details :
Pallets
Material :
STAINLESS STEEL WIRE
Type :
Crimped Wire Mesh
Application :
Woven Wire Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Surface Treatment :
galvanized or painted.
Mesh Size :
1mm - 100mm.
Hole Type :
square, rectangular and long slot.
Opening Size :
2.0 - 80.0 mm
Wire Diameter :
0.8 - 8 mm
width :
1.2m
length :
30m
hook :
hook with steel sheet
hook degree :
60degree
Weaving type :
Double Crimp
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen​

Product Description
Our 65Mn woven vibrating screen mesh is specially engineered for heavy-duty mining and aggregate screening applications. Made of high-quality 65Mn spring steel with heat treatment process, it achieves a hardness of 55-62 HRC, ensuring superior wear resistance and long service life. Compliant with GOST, GB and AISI standards, it is fully customizable in mesh size, wire diameter and sheet size to meet the specific needs of Russian and Central Asian customers.

Typical Applications:

Mining: Ore extraction, coal washing, and mineral processing.
Quarry & Aggregate: Stone crushing, sand screening, and gravel classification.
Construction: Demolition waste sorting and construction material screening.
Industrial: Chemical processing, grain handling, and waste management.
1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
Technical Specifications
(Custom configurations available upon request.)
Product Type
Key Features
Primary Applications
358 Security Mesh
9.5mmx3.15mm aperture pattern, anti-climb design
Prisons,facilities, high-security zones
358 Anti-Scale Mesh
Reinforced 6mm thick wires, tamper-resistant connections
Airport perimeters, critical infrastructure
Workshop Partition Panels
Modular design, easy installation, transparent or solid options
Factory floors, warehouse divisions, equipment zones
Elevator Protection Doors
Interlocking mechanism, safety sensors, reinforced frames
Construction sites, industrial elevator shafts
Anti-Glare Highway Barriers
Wave-shaped design, 85% visibility maintenance, UV resistant
Expressways, viaducts, traffic separation areas
Airport Perimeter Fencing
358 mesh standard, 3.0m height, anti-dig base design
Airfield boundaries, restricted access areas
Prison Security Fencing
76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping
Correctional facilities, detention centers

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.

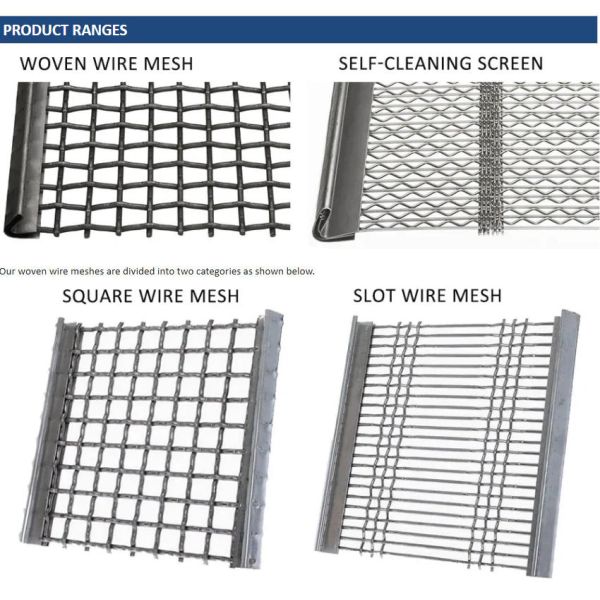

There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60

0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60

Technical Parameters of Stainless Steel Wire
Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0
Aperture
Square Weave		 Light duty
Wire Dia kg/m²OA%		 Medium
Wire Dia kg/m OA%		 Heavy Duty
Wire Dia kg/m²OA%
2.00 1.37 7.1 35
3.15 2.00 9.9 37 2.50 14.1 31
4.0 2.00 8.50 44 2.50 12.2 38 3.05 16.8 32
5.0 2.00 7.80 51 2.50 16.6 44 3.05 14.7 38
5.6 2.50 9.80 48 3.05 13.7 41 4.00 21.2 34
6.35 2.50 8.89 51 3.05 12.6 46 4.00 19.6 38
6.8 2.50 9.00 51 3.05 10.0 44 4.00 19.7 37
7.1 2.50 8.80 55 3.05 11.9 48 4.00 18.3 41
8 2.50 10.80 54 4.00 16.9 44 5.00 24.4 38
9 3.05 9.80 55 4.00 15.6 48 5.00 22.7 44
10 3.05 9.10 58 4.00 14.5 51 5.00 21.2 44
11.2 3.05 10.40 54 5.00 19.6 48 5.60 28.6 44
12.5 4.00 12.30 57 5.00 18.1 51 5.60 20.0 47
14 4.00 16.70 54 5.00 20.0 51 6.80 24.6 48
16 5.00 15.10 58 5.60 19.5 56 6.80 22.6 51
18 5.00 14.50 58 6.80 20.7 55 7.10 25.0 51
20 5.60 14.00 61 6.80 19.2 58 7.10 24.0 54
22 5.60 17.60 61 7.10 21.5 57 8.00 26.7 54
25 6.80 16.10 64 7.10 20..1 60 8.00 24.6 57
28 7.00 14.70 63 8.00 19.0 61 9.00 27.8 57
32 8.00 20.60 64 9.00 26.0 60 10.00 30.4 58
38 8.00 18.70 67 9.00 28.1 64 10.00 27.9 61
40 9.00 21.00 67 10.00 25.4 64 11.20 31.1 61
45 9.00 19.50 69 10.00 23.4 67 11.20 28.4 64
50 10.00 23.20 69 11.20 26.0 67 12.50 31.8 64
56 10.00 19.20 72 11.20 28.7 69 12.50 29.0 67
63 10.00 17.40 75 11.20 24.5 72 12.50 25.1 70
76.2 10.00 14.80 78 11.20 16.0 75 12.50 20.0 73
80 10.00 16.00 79 11.20 17.5 72 12.50 21.5 75
90 10.00 14.00 81 11.20 15.7 79 12.70 19.4 77
100 10.00 10.00 82 11.20 14.3 81 12.70 17.6 79

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

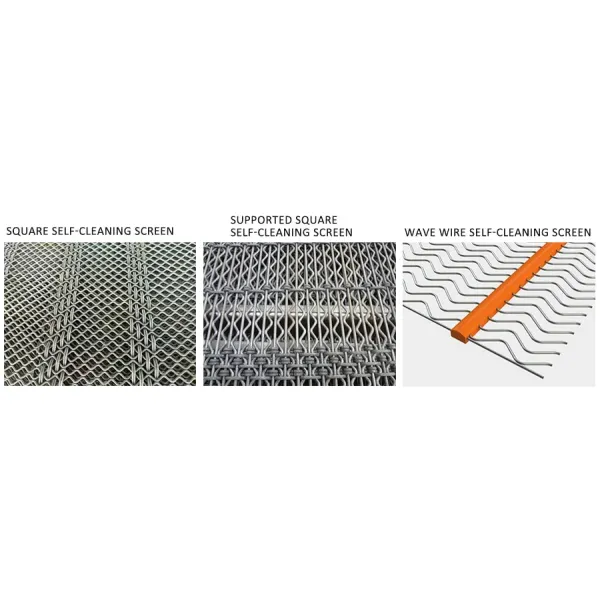

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
Aperture
Square WeaveLight duty
Wire Dia kg/m²OA%Medium
Wire Dia kg/m OA%Heavy Duty
Wire Dia kg/m²OA
