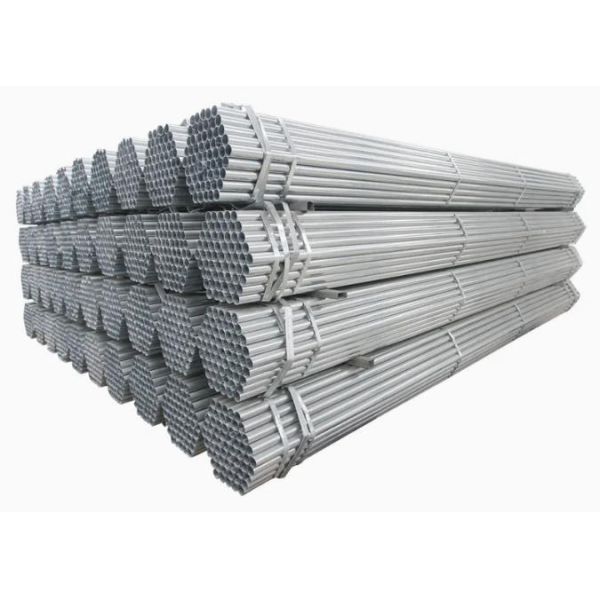

BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding
BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding
BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding
BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding
Specifications
Brand Name :
qijie
Model Number :
steel pipe
Certification :
steel pipe
Place of Origin :
China
MOQ :
10tons
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
100tons
Delivery Time :
15-18days
Packaging Details :
bulk
Material :
steel
Surface Treatment :
hot dipped galvanized
Standard :
GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade :
GB/T3091 - 2001:Q195 , Q235 BS1387 - 1985 , DIN EN10025 EN10219 :S235JR JIS G3444:2004:STK400 ASTM A53: GR. A , GR. B
Description

BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding

Pre - galvanized pipe: pre-galvanized pipe is made of hot dipped galvanized steel strip directly ,
Usage: Used for low pressure liquid delivery, such as water, gas, and oil,fence,conduit,green house etc.
Standard: GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade: GB/T3091 - 2001:Q195 , Q235
BS1387 - 1985 , DIN EN10025 EN10219 :S235JR
JIS G3444:2004:STK400
ASTM A53: GR. A , GR. B

Pre galvanized steel pipe:

Outer Diameter Wall Thickness Length
Inch mm mm meter
1/2" 20mm 0.8mm-2.0mm 0.3m-12m
3/4" 25mm 0.8mm-2.0mm 0.3m-12m
1" 32mm 0.8mm-2.0mm 0.3m-12m
1-1/4" 40mm 0.8mm-2.0mm 0.3m-12m
1-1/2" 47mm 1.0mm-2.5mm 0.3m-12m
2" 60mm 1.0mm-2.5mm 0.3m-12m
2-1/2" 75mm 1.0mm-2.5mm 0.3m-12m
3" 88mm 1.0mm-2.5mm 0.3m-12m
4" 113mm 1.0mm-2.5mm 0.3m-12m
5" 140mm 1.0mm-2.5mm 0.3m-12m
6" 165mm 1.0mm-2.5mm 0.3m-12m

Hot dipped galvanized pipe : hot dipped galvanized pipe owns thicker zinc coating than pre-galvanized pipe ,black pipes will be dipped into zinc pool for galvanized.
Standard: GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade: GB/T3091 - 2001: Q195,Q235 , Q345
BS1387 - 1985 , DIN EN10025 ,EN10219 :S235JR ,S275JR,S355JR, S355J2H
JIS G3444:2004:STK400 ,STK500
ASTM A53: GR. A , GR. B, GR. C , GR. D

Hot dip galvanized steel pipe:

Outer Diameter Wall Thickness Length
Inch mm mm meter
1/2" 21.3mm 0.6mm-3.0mm 0.3m-12m
3/4" 26.9mm 0.6mm-3.0mm 0.3m-12m
1" 33.4mm 1.0mm-3.0mm 0.3m-12m
1-1/4" 42.3mm 1.0mm-4.0mm 0.3m-12m
1-1/2" 48.3mm 1.0mm-4.0mm 0.3m-12m
2" 60.3mm 1.5mm-4.0mm 0.3m-12m
2-1/2" 76.1mm 1.5mm-4.0mm 0.3m-12m
3" 88.9mm 1.5mm-9.5mm 0.3m-12m
4" 114.3mm 2.0mm-9.5mm 0.3m-12m
5" 141.3mm 3.0mm-9.5mm 0.3m-12m
6" 168.3mm 3.0mm-12.0mm 1.0m-12m
8" 219.1mm 3.2mm-12.0mm 1.0m-12m
10" 273mm 3.2mm-12.0mm 1.0m-12m
12" 323.8mm 6.0mm-15.0mm 1.0m-12m
14" 355.6mm 8.0mm-15.0mm 1.0m-12m
16" 406.4mm 8.0mm-20.0mm 1.0m-12m

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name Size Wall Thickness Length
mm mm m
Square tube 10x10-500x500 0.6-25.0 1-12m
Rectangular tube 20x10-200x400 0.7-13.0 1-12m
