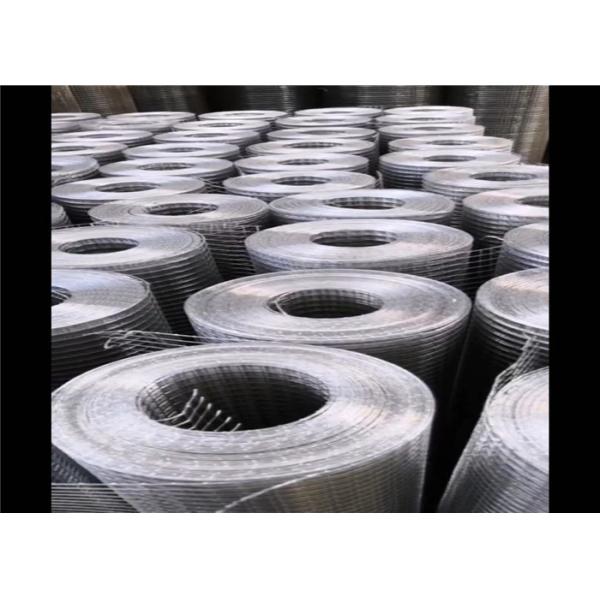

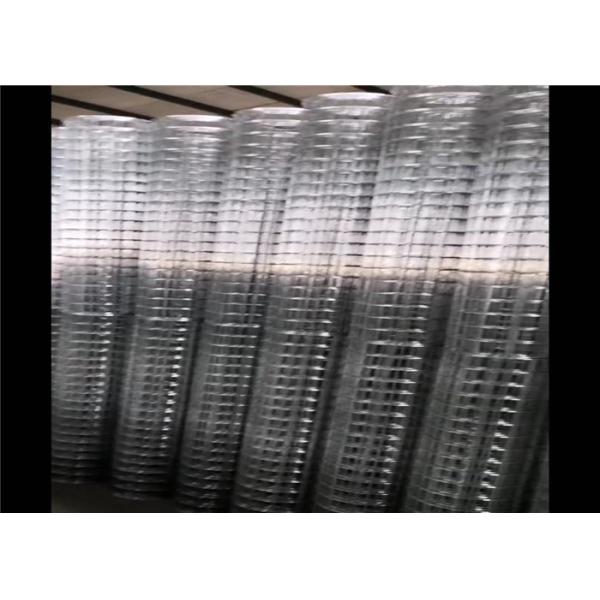

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
PVC-Coated Galvanized Welded Wire Mesh for Plant Protection
Specifications
Brand Name :
QiJie
Model Number :
xx-01001
Certification :
ISO9001:2008, SGS, CE
Place of Origin :
CHINA
MOQ :
50 rolls
Price :
USD9.90-USD45.90
Payment Terms :
TT,LC,
Supply Ability :
1000 rolls/per day
Delivery Time :
10-25days
Packaging Details :
Plastic film or water proof paper
Material :
Carbon steel wire
Mesh Opening :
12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter :
0.4mm - 1.5mm
Roll Width :
0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length :
15M,30M,50M ect
Surface Treatment :
Hot dipped galvanized or electric galvanized
Application: :
Fence Mesh
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Product Description:

Galvanized Welded Wire Mesh is a high-performance metal mesh made by welding high-quality low-carbon steel wires into regular grids, then undergoing hot-dip or electro-galvanization. The galvanized layer provides strong corrosion resistance, while the welded structure ensures stability, making it suitable for long-term indoor and outdoor use.
Galvanized Welded Wire Mesh boasts outstanding durability and structural reliability. Its galvanized coating—especially the hot-dip galvanized layer—forms a dense protective barrier on the steel wire surface, effectively resisting corrosion from air, moisture, and weak corrosive media, allowing outdoor service life of 10-20 years.
Each wire intersection is firmly fixed by resistance welding, ensuring the mesh remains stable without loosening or deformation even under external pressure, and its automated production guarantees precise, uniform mesh sizes for consistent performance in various scenarios.

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.

Specification
Opening
Wire Diameter
In inch
In metric unit
1/4" x 1/4"
6.4 x 6.4mm
BWG24-22
3/8" x 3/8"
10.6x 10.6mm
BWG22-19
1/2" x 1/2"
12.7 x 12.7mm
BWG23-16
5/8" x 5/8"
16.0x 16.0mm
BWG21-18
3/4" x 3/4"
19.1 x 19.1mm
BWG21-16
1" x 1/2"
25.4x 12.7mm
BWG21-16
1-1/2" x 1-1/2"
38.0 x 38.0mm
BWG19-14
1" x 2"
25.4 x 50.8mm
BWG16-14
2" x 2"
50.8 x 50.8mm
BWG15-12
2" x 4"
50.8 x 101.6mm
BWG15-12
4" x 4"
101.6 x 101.6mm
BWG15-12
4" x 6"
101.6 x 152.4mm
BWG15-12
6" x 6"
152.4 x 152.4mm
BWG15-12
6" x 8"
152.4 x 203.2mm
BWG14-12
Roll Width: 0.5m-2m; Roll Length: 5m, 10m, 30m, etc.
Material: galvanized, PVC coated, stainless steel.
Note: Special specifications can be made according to customers requires.
Product application
Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Specification
Opening
Wire Diameter
Width 0.4-2m
Length 5-50m




electric galvanized before welded,
electric galvanized after welded,
hot-dipped galvanized before welded,
hot-dipped galvanized after welded,
PVC coated,
Stainless steel wire
Inch
Metric Unit
1/4"x1/4"
6.4mmx6.4mm
BWG24-22
3/8"x3/8"
10.6mmx10.6mm
BWG22-19
1/2"x1/2"
12.7mmx12.7mm
BWG23-16
5/8"x5/8"
16mmx16mm
BWG21-18
3/4"x3/4"
19.1mmx19.1mm
BWG21-16
1"x1/2"
25.4mmx25.4mm
BWG21-16
1-1/2"x1 1/2"
38mmx38mm
BWG19-14
1"x2"
25.4mmx12.7mm
BWG16-14
2"x2"
50.8mmx50.8mm
BWG15-12
2"x4"
101.6mmx101.6mm
BWG15-12
4"x4"
101.6mmx152.4mm
BWG15-12
4"x6"
101.6mmx152.4mm
BWG15-12
6"x6"
152.4mmx152.4mm
BWG15-12
6"x8"
15.4mmx203.2mm
BWG14-12
Note:Special specification can be made according to customers requires

SURFACE TREATMENT

1.Electrical zinc coating mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

2.Pre Galvanized mesh

Use the hot dip gal. wire direct do the welding,cutting the edge of the panel which can make sure the edge is smooth and not hurt your hands,packing

3.Hot dip galvanized mesh

First welding,cutting the edge of the panel which can make sure the edges is smooth and not hurt your hands,clectrical zinc coating,packing

4.PVC coated welded wire mesh
Black wire + PVC coated
Galvanized wire+PVC coated

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Feature of plastering welded wire mesh:

1. economic and good looking

2. anti-corrosion and long service life

3. wide scope of using

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Welded Wire Mesh Welding style:

Hot dipped galvanized after or before welding

Electro galvanized after or before welding

Weaving and characteristics:

Hot dipped galvanizing after welding

Welding with hot dipped galvanized iron wire

Electric galvanizing after welding

Welding with electric galvanized iron wire

PVC coated welded wire mesh

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

PVC-Coated Galvanized Welded Wire Mesh for Plant Protection PVC-Coated Galvanized Welded Wire Mesh for Plant Protection

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
