Crocodile mouth hole anti-skidwalkway/aluminum tread plate
Crocodile mouth hole anti-skidwalkway/aluminum tread plate
Crocodile mouth hole anti-skidwalkway/aluminum tread plate
Crocodile mouth hole anti-skidwalkway/aluminum tread plate
Specifications
Brand Name :
QIJIE
Model Number :
grip strut grating
Certification :
iso
Place of Origin :
hebei,China
MOQ :
100pcs
Payment Terms :
30%TT in advance,Balance before loading
Supply Ability :
1000pcs per month
Delivery Time :
15-18days
Packaging Details :
Pallets
Material :
Aluminum,Galvanized Steel Wire
products name :
grip strut grating
Type :
Perforated Mesh,Etching or stamping
Technique :
Perforated
Weave style :
perforated,Punched,Punching
Hole shape :
Round,diamond,etc,plum blossom,octagonal
Surface treatment :
Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Color :
All the color chip have,White,blue,Silver,golden
Product name :
hexagonal perforated metal sheet,expandable sdiamond mesh
Thickness :
0.5-8mm,0.3MM- 8MM
Feature :
Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Width :
1m or 1.22m,1.22 m or below
Usage :
etc.,decorative,oil/air filter,food
Length :
2m or 2.44m
Size :
Customized Size,standard
Shape :
square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Pitch :
1.0mm-100MM,or as request.
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

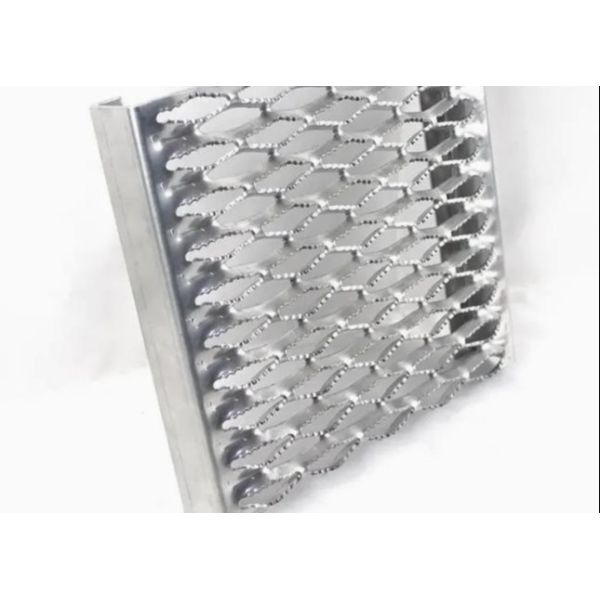

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel
Pattern:Round type,Crocodile mouth type

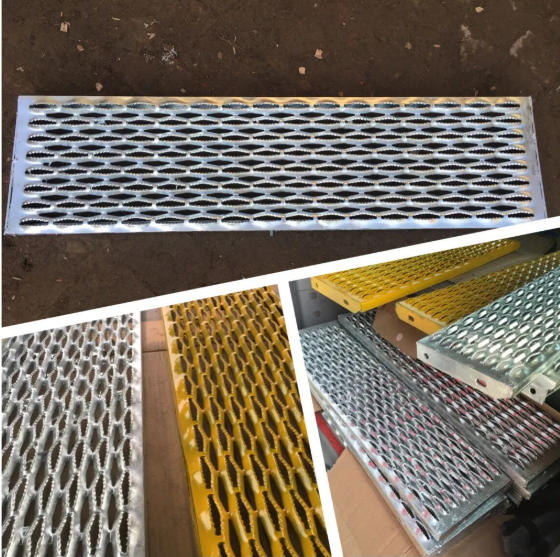

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Widths & Depths

Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.

Standard widths include:

  • 2 Diamond (4 ¾” wide)
  • 3 Diamond (7” wide)
  • 4 Diamond (9-1/2” wide)
  • 5 Diamond (11-3/4” wide)
  • 8 Diamond (18-3/4” wide)
  • 10 Diamond (24” wide)

Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.

Stock lengths of 10’ and 12’ are readily available and custom lengths are available on special order.

Materials

Grip Strut planks are available in the following materials:

  • Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
  • HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
  • 5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
  • 304 or 316L stainless steel, 16 gauge

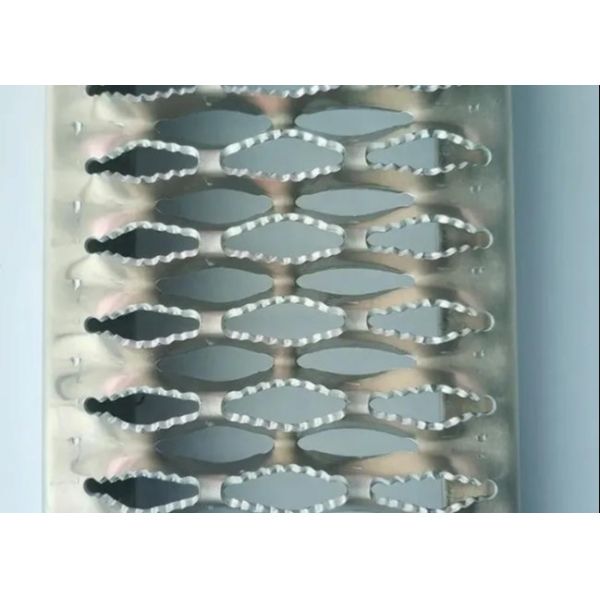

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Additional Grip Strut Products

In addition to plank grating, the distinct benefits of the Grip Strut surface are also available in OSHA compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut. For further details, please see related products below.

Application

1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.
Product Parameters
Structure
Plank thickness
Width
Channel height
Clear span


2-diamond
14G
4-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


3-diamond
14G
7"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


4-diamond
14G
9-1/2"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


5-diamond
14G
11-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'

8-diamond
14G
18-3/4"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'

10-diamond
14G
24"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'
