Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh
Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh
Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh
Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :
Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh

Specification of stainless steel wire rope mesh

material stainelss steel 304 316 316L etc.
wire diameter 1.0 - 3.0mm
feature flexible, high-Strength
technique woven wire mesh
mesh rolls size 1x30m 2x30m 4x30m or according to clients' requirements
structure 7*7 or 7*19
surface flat and bright

Weaving Types
Handwoven, ferruled type.

Use of stainless steel wire rope mesh

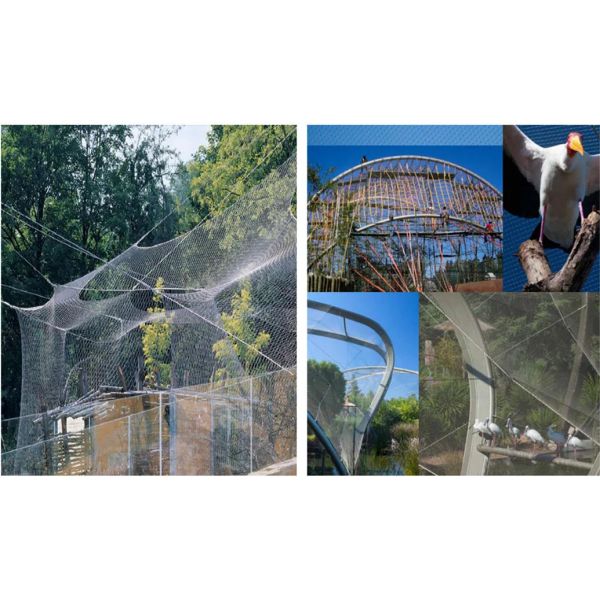

Zoo fence: animal enclosures, aviary mesh, bird cage, wildlife park, marine park, etc.
Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc
Safety net: stair/balcony railing, balustrade, bridge safety net, anti-fall net, etc.
Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall system

Advantages of stainless steel cable mesh
1. Excellent flexible performance.
2. Virtually indestructible.
3. Most impacting resistant and breaking resistant force, most resisting rain, snow,hurricane
4. High strength, strong toughness,free angles curving and fold, easy for transportation and installment.
5. Service life is over 30 years.
Material: SUS302, 304, 316, 316L
Wire diameter: 1.0mm-3.0mm
Structure:7*7,7*19.
Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".

Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh

For aviary mesh / zoo fence

Model Structure Rope Diameter Mesh Opening
2076 7*7 or 7*19 2.0mm 76*76mm
2051 7*7 or 7*19 2.0mm 51*51mm
1651 7*7 or 7*19 1.6mm 51*51mm
1638 7*7 or 7*19 1.6mm 38*38mm
1238 7*7 or 7*19 1.2mm 38*38mm
1230 7*7 or 7*19 1.2mm 30*30mm
1225 7*7 or 7*19 1.2mm 25*25mm

Flexible 7*7 304 Stainless Steel Wire Rope Zoo Safety Mesh Steel Cable Mesh

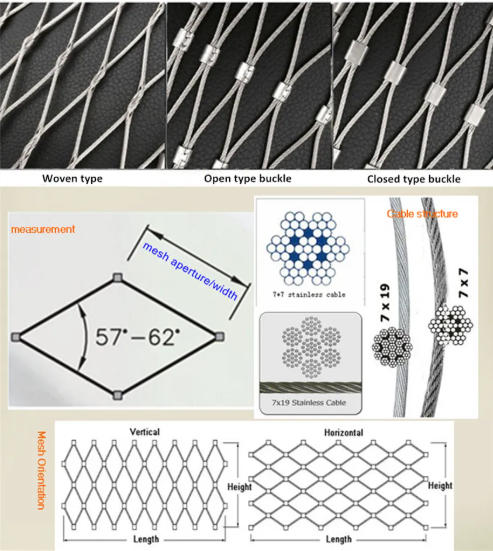

1:Flexible stainless steel cable mesh (Inter-woven type)
Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.

Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
BR-01 7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
BR-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
BR-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
BR-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
BR-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
BR-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
BR-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
BR-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
BR-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
BR-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
BR-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17
BR-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
BR-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17
BR-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
BR-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
BR-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
BR-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
BR-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
BR-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
BR-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
BR-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
BR-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
BR-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22
BR-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22

2:Flexible stainless steel cable mesh (Ferrule type)
The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems.
Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
BR-01 7 × 19 1/8 3.2 120 × 208 7.38
BR-02 7 × 19 1/8 3.2 100 × 173 7.38
BR-03 7 × 19 1/8 3.2 90 × 156 7.38
BR-04 7 × 7 3/32 2.4 100 × 173 4.18
BR-05 7 × 7 3/32 2.4 90 × 156 4.18
BR-06 7 × 7 3/32 2.4 80 × 139 4.18
BR-07 7 × 7 3/32 2.4 70 × 121 4.18
BR-08 7 × 7 5/64 2 100 × 173 3.17
BR-09 7 × 7 5/64 2 90 × 156 3.17
BR-10 7 × 7 5/64 2 80 × 139 3.17
BR-11 7 × 7 5/64 2 70 × 121 3.17
BR-12 7 × 7 1/16 1.6 80 × 139 2.17
BR-13 7 × 7 1/16 1.6 70 × 121 2.17
BR-14 7 × 7 1/16 1.6 60 × 104 2.17
BR-15 7 × 7 1/16 1.6 51 × 87 2.17
BR-16 7 × 7 3/64 1.2 80 × 139 1.22
BR-17 7 × 7 3/64 1.2 60 × 104 1.22
BR-18 7 × 7 3/64 1.2 50 × 87 1.22
BR-19 7 × 7 3/64 1.2 40 × 69 1.22
