Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence
Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence
Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence
Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :
Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

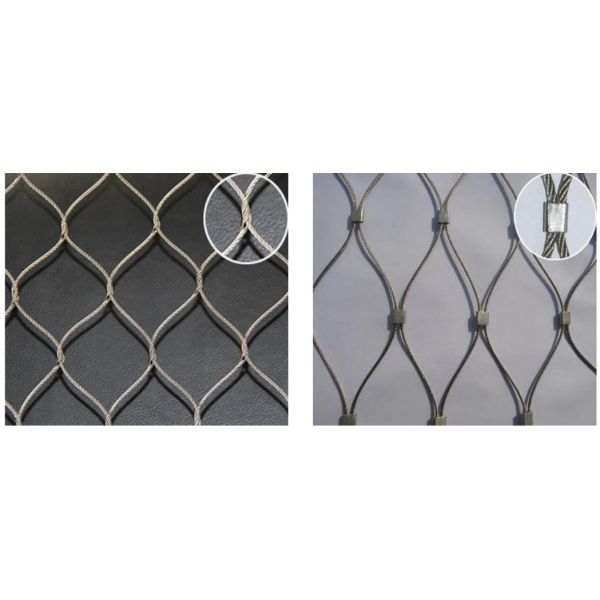

Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence​

Stainless steel rope mesh is widely used in the lion mesh, lion enclosure fence mesh,lion enclosure,lion fence,lion enclosures,lion enclosure net,lion fence net,lion fence mesh,lion enclosure mesh,lion cage mesh,lion cage net,lion fence netting.

The flexible stainless steel cable net is widely used in geographical environments, aquaculture, wild animal fencing, engineer anti-explosion,throw screen,handrail screen,etc

The flexible stainless steel rope net is produced with high quality stainless steel wire cable and stainless steel ferrule(STAINLESS STEEL FERRULE ROPE MESH), the stainless steel grade includes type201, type304, type304L, type316, type316L.

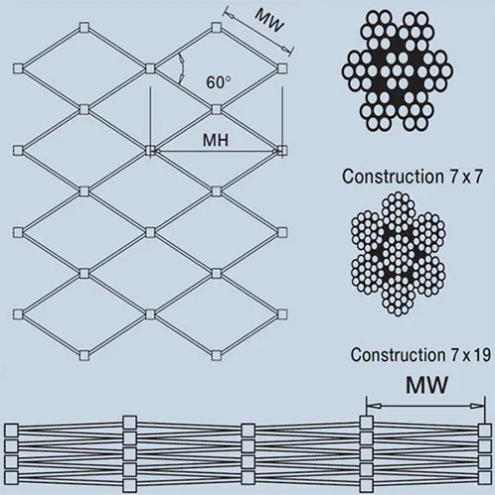

The structures of the stainless steel wire cable have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
The standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence

Stainless Steel Woven Cable Nets Sheet
Item No.s Cable Diameter Mesh Opening Size Normal Break
inch mm inch mm lbs.
M-3212W 1/8 3.2 4.75 x 4.75 120 x 120 1,600
M-3210W 1/8 3.2 4 x 4 102 x 102 1,600
M-3290W 1/8 3.2 3.55 x 3.55 90 x 90 1,600
M-3276W 1/8 3.2 3 x 3 76 x 76 1,600
M-3250W 1/8 3.2 2 x 2 51 x 51 1,600
M-2410W 3/32 2.4 4 x 4 102 x 102 920
M-2490W 3/32 2.4 3.55 x 3.55 90 x 90 920
M-2476W 3/32 2.4 3 x 3 76 x 76 920
M-2460W 3/32 2.4 2.4 x 2.4 60 x 60 920
M-2450W 3/32 2.4 2 x 2 51 x 51 920
M-2076W 5/64 2 3 x 3 76 x 76 676
M-2060W 5/64 2 2.4 x 2.4 60 x 60 676
M-2050W 5/64 2 2 x 2 51 x 51 676
M-2038W 5/64 2 1-1/2 x 1-1/2 38 x 38 676
M-1676W 1/16 1.6 3 x 3 76 x 76 480
M-1650W 1/16 1.6 2 x 2 51 x 51 480
M-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
M-1630W 1/16 1.6 1.2 x 1.2 30 x 30 480
M-1625W 1/16 1.6 1 x 1 25.4 x 25.4 480
M-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
M-1230W 3/64 1.2 1.2 x 1.2 30 x 30 270
M-1225W 3/64 1.2 1 x 1 25.4 x 25.4 270
M-1220W 3/64 1.2 4/5 X 4/5 20 x 20 270

Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence

Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence

Stainless Steel Woven Cable Nets Sheet
Item No.s Cable Diameter Mesh Opening Size Normal Break
inch mm inch mm lbs.
M-3212W 1/8 3.2 4.75 x 4.75 120 x 120 1,600
M-3210W 1/8 3.2 4 x 4 102 x 102 1,600
M-3290W 1/8 3.2 3.55 x 3.55 90 x 90 1,600
M-3276W 1/8 3.2 3 x 3 76 x 76 1,600
M-3250W 1/8 3.2 2 x 2 51 x 51 1,600
M-2410W 3/32 2.4 4 x 4 102 x 102 920
M-2490W 3/32 2.4 3.55 x 3.55 90 x 90 920
M-2476W 3/32 2.4 3 x 3 76 x 76 920
M-2460W 3/32 2.4 2.4 x 2.4 60 x 60 920
M-2450W 3/32 2.4 2 x 2 51 x 51 920
M-2076W 5/64 2 3 x 3 76 x 76 676
M-2060W 5/64 2 2.4 x 2.4 60 x 60 676
M-2050W 5/64 2 2 x 2 51 x 51 676
M-2038W 5/64 2 1-1/2 x 1-1/2 38 x 38 676
M-1676W 1/16 1.6 3 x 3 76 x 76 480
M-1650W 1/16 1.6 2 x 2 51 x 51 480
M-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
M-1630W 1/16 1.6 1.2 x 1.2 30 x 30 480
M-1625W 1/16 1.6 1 x 1 25.4 x 25.4 480
M-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
M-1230W 3/64 1.2 1.2 x 1.2 30 x 30 270
M-1225W 3/64 1.2 1 x 1 25.4 x 25.4 270
M-1220W 3/64 1.2 4/5 X 4/5 20 x 20 270
