Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :

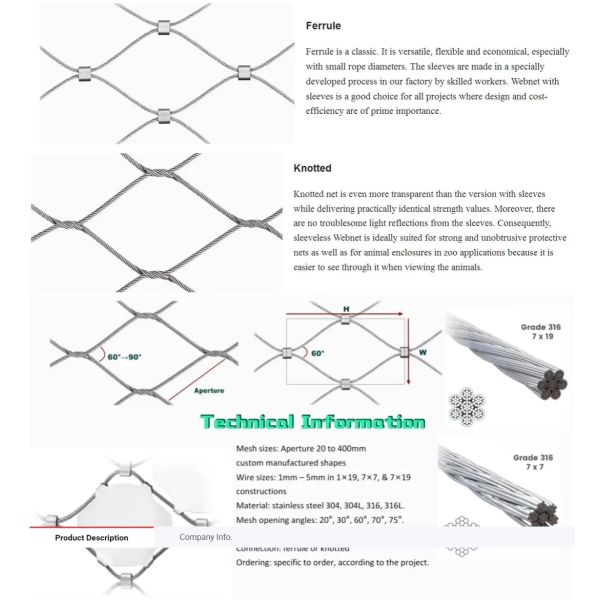

Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh

Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability,security,aesthetic property and durability etc.

Standard areas
Rope diameter Mesh Width
1,0 mm 25 mm - 200 mm
1,5 mm 18 mm - 200 mm
2,0 mm 30 mm - 400 mm
3,0 mm 40 mm - 400 mm

Stainless Steel 304/316 7*7 Zoo Wire Mesh Fence Green Wall Mesh Safety Net Stainless Steel Rope Mesh

Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
BR-01 7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
BR-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
BR-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
BR-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
BR-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
BR-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
BR-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
BR-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
BR-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
BR-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
BR-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17
BR-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
BR-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17
BR-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
BR-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
BR-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
BR-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
BR-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
BR-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
BR-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
BR-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
BR-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
BR-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22
BR-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22


Specifications can be customized according to customer needs.

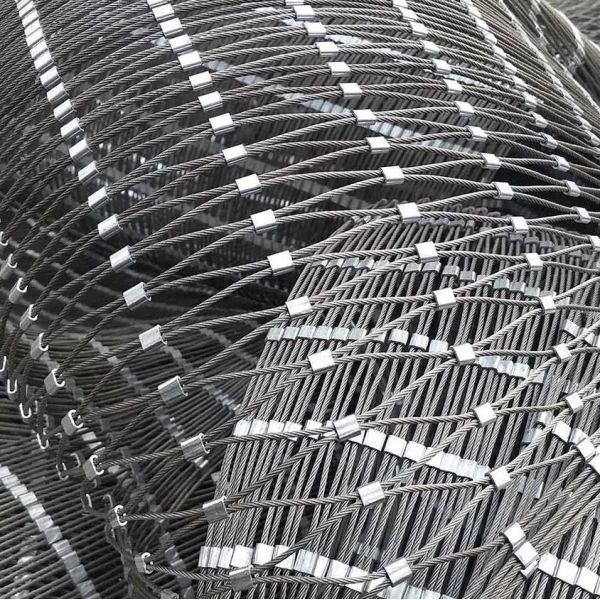

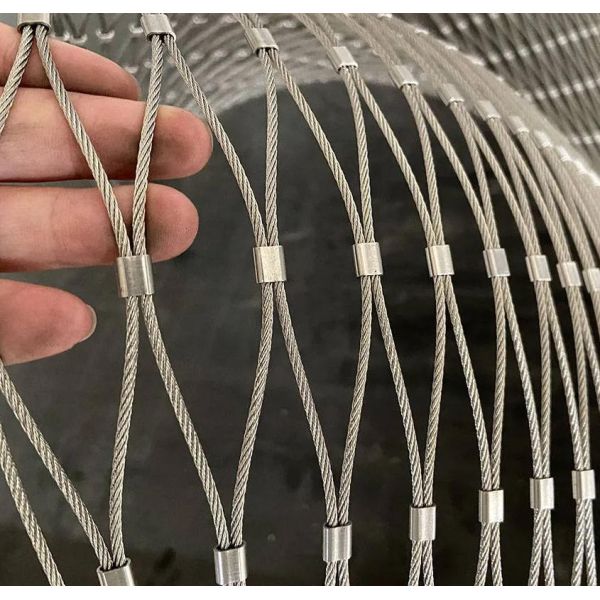

Ferruled mesh:

Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
BR-01 7 × 19 1/8 3.2 120 × 208 7.38
BR-02 7 × 19 1/8 3.2 100 × 173 7.38
BR-03 7 × 19 1/8 3.2 90 × 156 7.38
BR-04 7 × 7 3/32 2.4 100 × 173 4.18
BR-05 7 × 7 3/32 2.4 90 × 156 4.18
BR-06 7 × 7 3/32 2.4 80 × 139 4.18
BR-07 7 × 7 3/32 2.4 70 × 121 4.18
BR-08 7 × 7 5/64 2 100 × 173 3.17
BR-09 7 × 7 5/64 2 90 × 156 3.17
BR-10 7 × 7 5/64 2 80 × 139 3.17
BR-11 7 × 7 5/64 2 70 × 121 3.17
BR-12 7 × 7 1/16 1.6 80 × 139 2.17
BR-13 7 × 7 1/16 1.6 70 × 121 2.17
BR-14 7 × 7 1/16 1.6 60 × 104 2.17
BR-15 7 × 7 1/16 1.6 51 × 87 2.17
BR-16 7 × 7 3/64 1.2 80 × 139 1.22
BR-17 7 × 7 3/64 1.2 60 × 104 1.22
BR-18 7 × 7 3/64 1.2 50 × 87 1.22
BR-19 7 × 7 3/64 1.2 40 × 69 1.22


Specifications can be customized according to customer needs.

Feature:

1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modify
