Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Specifications
Brand Name :
QIJIE
Model Number :
grip strut grating
Certification :
iso
Place of Origin :
hebei,China
MOQ :
100pcs
Payment Terms :
30%TT in advance,Balance before loading
Supply Ability :
1000pcs per month
Delivery Time :
15-18days
Packaging Details :
Pallets
Material :
Aluminum,Galvanized Steel Wire
products name :
grip strut grating
Type :
Perforated Mesh,Etching or stamping
Technique :
Perforated
Weave style :
perforated,Punched,Punching
Hole shape :
Round,diamond,etc,plum blossom,octagonal
Surface treatment :
Spray coating/Spray painting/Fluorocarbon coating,Hot Dipped Galvanized,galvanized and fluoroca
Color :
All the color chip have,White,blue,Silver,golden
Product name :
hexagonal perforated metal sheet,expandable sdiamond mesh
Thickness :
0.5-8mm,0.3MM- 8MM
Feature :
Corrosion Resistance,Good-looking and good quality,Durable,Acid resistance,anti-resistance
Width :
1m or 1.22m,1.22 m or below
Usage :
etc.,decorative,oil/air filter,food
Length :
2m or 2.44m
Size :
Customized Size,standard
Shape :
square,Can be cut into round or square shape,Round Shape,oval,Hexagon
Pitch :
1.0mm-100MM,or as request.
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

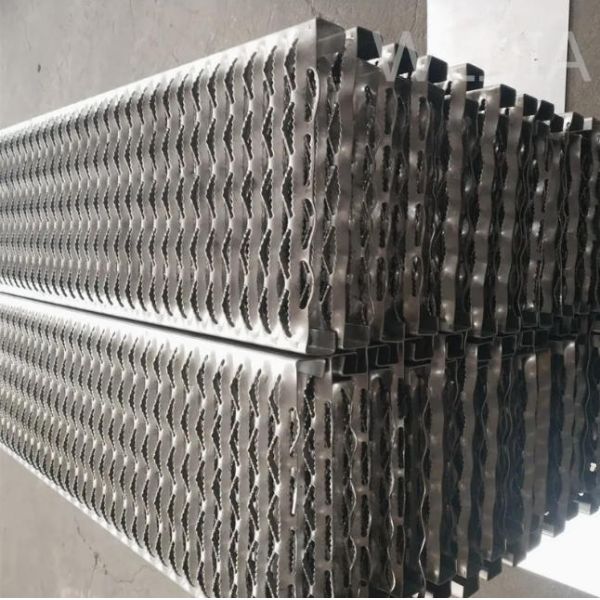

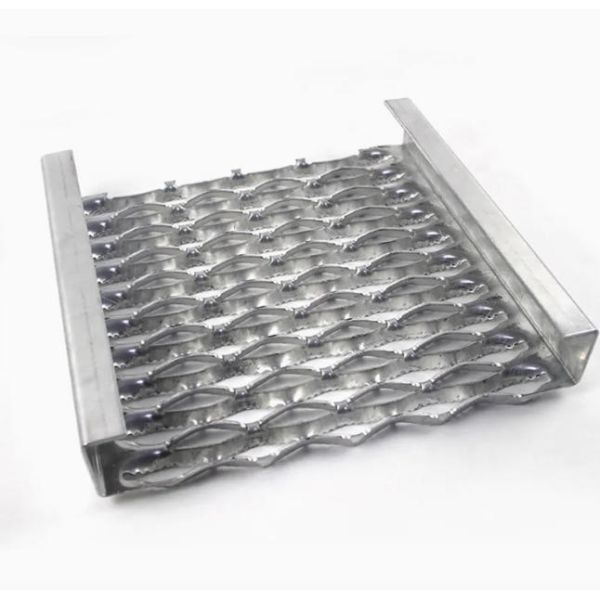

Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating​

Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate made of high quality steel, aluminum and stainless
steel offers the high slip resistant surface. The surface of the plank has diamond-shaped holes with serrated tooth for
grabbing in every direction under practically all conditions. The holes can be different numbers and it provides the enough
air opening to drop the waste. Perforated Anti-skid Grip Strut , Alligator Mouth Hole Checkered Plate is easy and quick to
install, besides, high strength-to- weight performance offers a high load capacity. Perforated Anti-skid Grip Strut , Alligator
Mouth Hole Checkered Plate can lasts a long life and is ideal for oily environment and industry.

Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating

Application

1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.

Product Parameters
Structure
Plank thickness
Width
Channel height
Clear span


2-diamond
14G
4-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


3-diamond
14G
7"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


4-diamond
14G
9-1/2"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'


5-diamond
14G
11-3/4"
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'
12G
1-1/2"
2'; 2'-6"; 3'
2"
2'; 2'-6"; 3'; 4'

8-diamond
14G
18-3/4"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'

10-diamond
14G
24"
2"
2'; 2'-6"; 3'; 4'
12G
2"
2'; 2'-6"; 3'; 4'

Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating

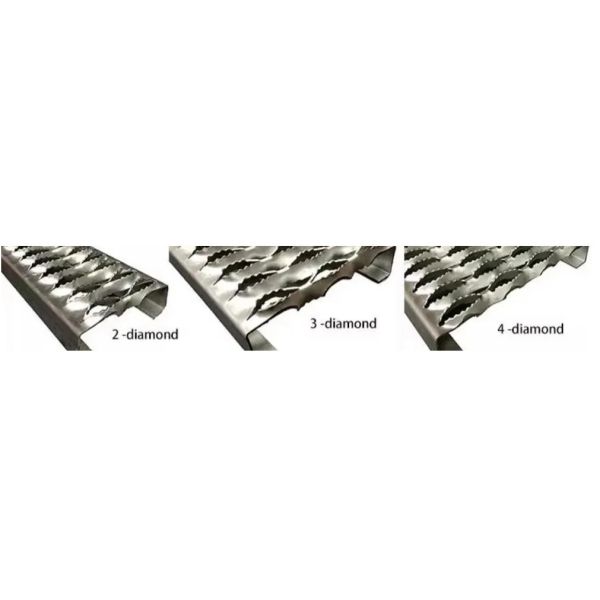

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.


Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

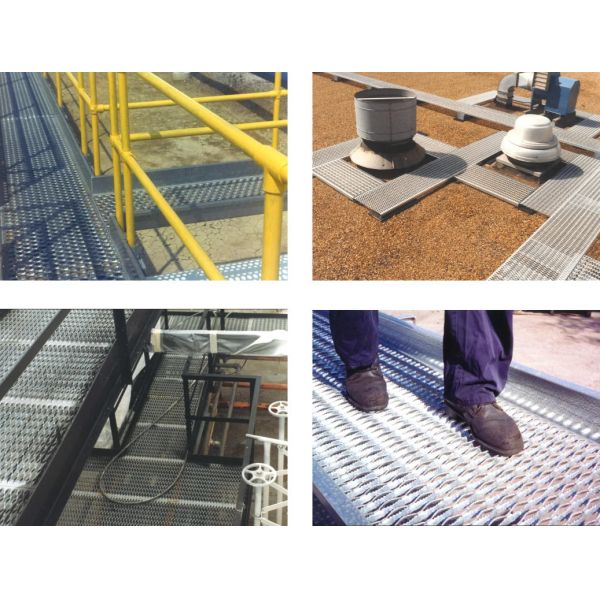

Product Application
Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways
Non Slip Steel Grating Walkway Safety Steel Grip Strut Grating
