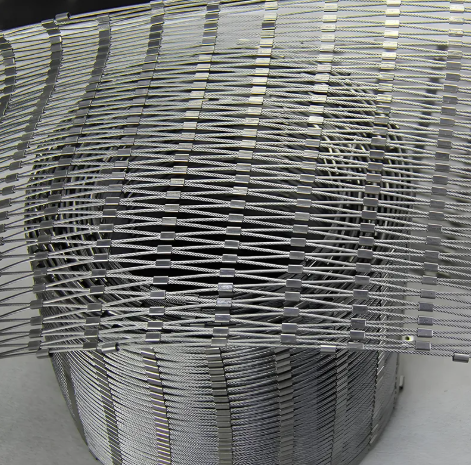

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :
Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description
Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
Steel wire rope: Made by twisting high-strength steel wire, common materials include stainless steel wire, galvanized steel wire, etc. The steel wire rope mesh made of stainless steel wire is corrosion-resistant and suitable for humid and highly corrosive environments; Galvanized steel wire improves its rust prevention ability by coating it with a zinc layer on the surface, which is relatively low-cost and widely used. The diameter and strength grade of steel wire rope are diverse, with diameters generally ranging from 2-8mm and strengths ranging from 1570MPa to 2160MPa to meet different protection requirements.
Connection method: The steel wire rope is interwoven into a mesh structure through specific weaving techniques or connectors such as buckles and loops. Common weaving techniques include twisted weaving, where adjacent steel wire ropes are twisted together at intersections to form a stable diamond or square mesh. This connection method gives the mesh good integrity and flexibility; Buckle and loop connections are made by clamping metal buckles or sleeve connections at the intersection of steel wire ropes for easy installation and adjustment.
Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier

Flexible Stainless Steel Cable Mesh
Type Knotted cable mesh Ferrule cable mesh
Combination Inter-woven Seamless ferrule
Hole pattern 90 degree diamond hole 60 degree diamond hole
Material SS304, 316, 316L, etc
Cable diameter 1 ~ 4 mm
Cable structure 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier

Feature:

  • Stainless steel provides the highest corrosion resistance.
  • Elegant and robust.
  • Light, robust yet transparent.
  • UV and weather resistant.
  • Flexible and pliable.
  • Climb resistant and prevents a secure foothold.
  • The minimum visual impact on views.
  • Recyclable.
  • Good price-benefit-ratio.
  • Easy installation and low maintenance.
  • Weave opening, meet any exact specification.

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier

Applications:
1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path

Stainless Steel Cable rope Mesh for Architectural Animal Enclosure Safety Barrier
