Rope Fencing Screen Architectural Wire Mesh
Rope Fencing Screen Architectural Wire Mesh
Rope Fencing Screen Architectural Wire Mesh
Rope Fencing Screen Architectural Wire Mesh
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :
Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

Rope Fencing Screen Architectural Wire Mesh

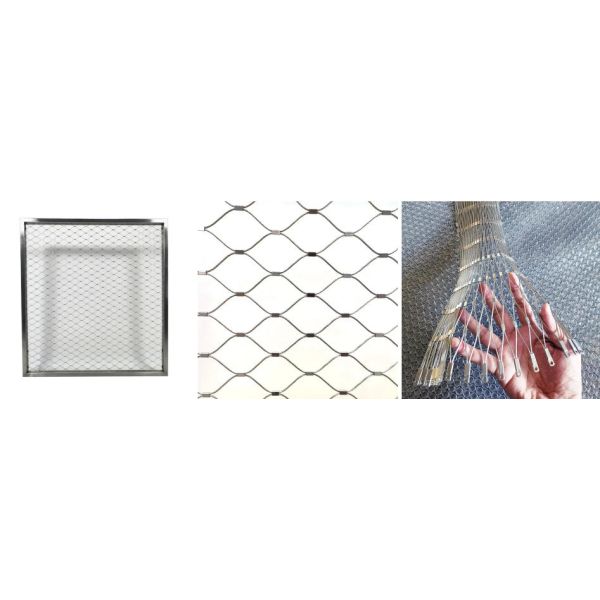

WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects
Rope Fencing Screen Architectural Wire Mesh
Product Description
Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20 270

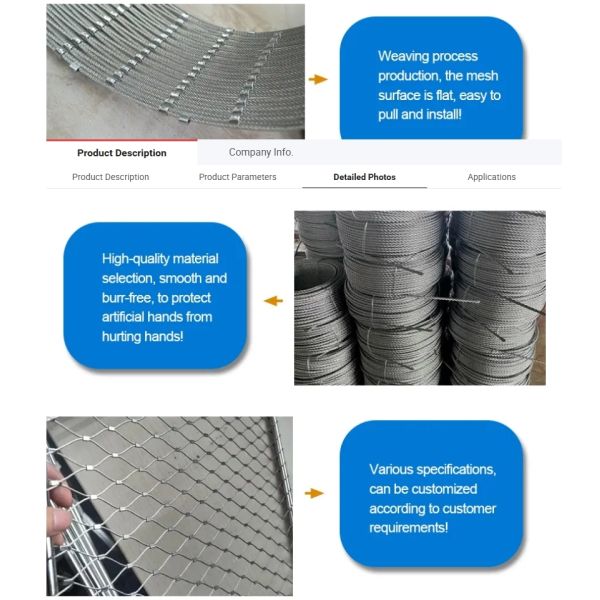

Weaving Method
Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.
Rope Fencing Screen Architectural Wire Mesh

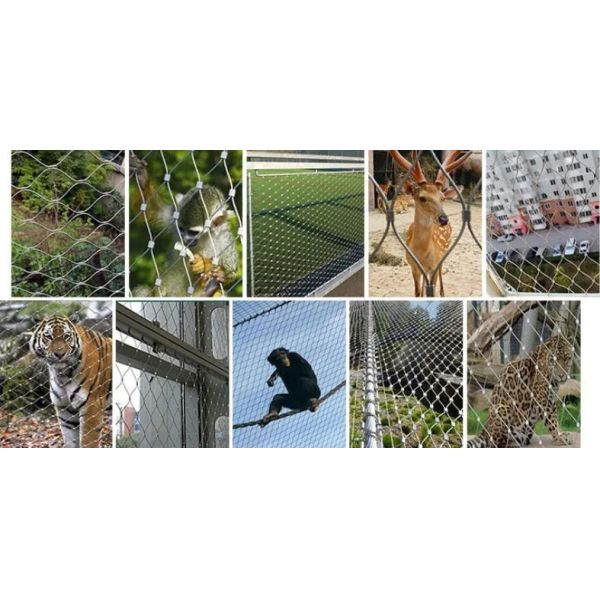

Application:

  1. Steel Mesh Balustrade - bridge, stair, balcony, path
  2. Cable Mesh - Excellent Solution to Safety
  3. Safety Net - Structural Measure to Prevent Suicide
  4. Helipad Safety Net - Modular Heliport Webbing
  5. Cable Zoo Mesh - Solution to Enclosing Most Animals
  6. Aviary Netting - Lightweight, Durable and Long Lasting
  7. Green Facade - Cable System for Most Climbing Plants
Rope Fencing Screen Architectural Wire Mesh

Rope Fencing Screen Architectural Wire Mesh

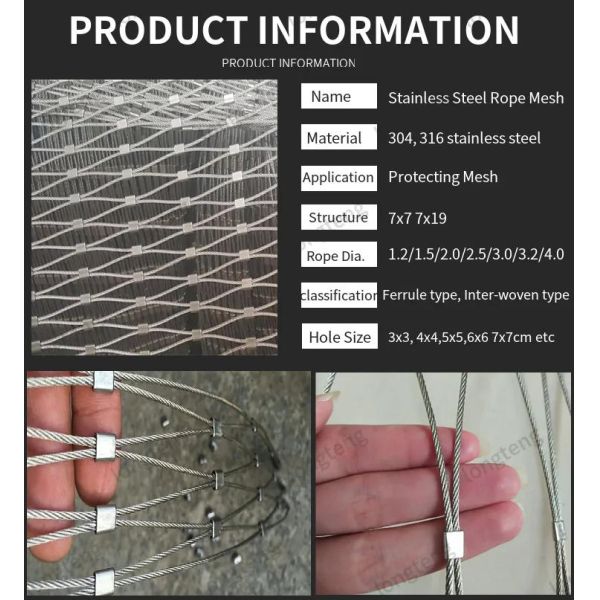

Product Name Stainless Steel Rope Mesh Decoration Rope Wire Mesh
Material SUS302, 304, 316, 316L
Wire diameter 1.0mm-3.0mm

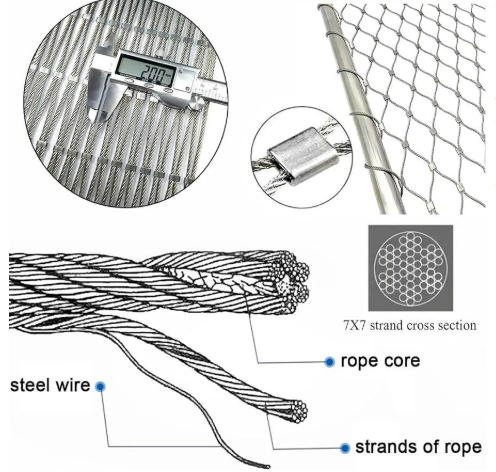

Structure 7*7,7*19.
Mesh opening size 1"*1",2"*2",3"*3",4"*4".
Feature
Handle Made
Environmental Protection
Extensive Use
Premium Quality
Direct from Factory
Product Life Cycle
Lifetime Support
Packing The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.
Advantage:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2.Anti-corrosive, resist the rust, can be repeated use.
3.Resists chewing by rodents and other pests
4.This product can bear the heavy snow and the gale very much.
5.Without toxic material, safety, environmental protection.

Main Featuers:
1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested - especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.

Rope Fencing Screen Architectural Wire Mesh

Feature:

  • Stainless steel provides the highest corrosion resistance.
  • Elegant and robust.
  • Light, robust yet transparent.
  • UV and weather resistant.
  • Flexible and pliable.
  • Climb resistant and prevents a secure foothold.
  • The minimum visual impact on views.
  • Recyclable.
  • Good price-benefit-ratio.
  • Easy installation and low maintenance.
  • Weave opening, meet any exact specification.

Rope Fencing Screen Architectural Wire Mesh

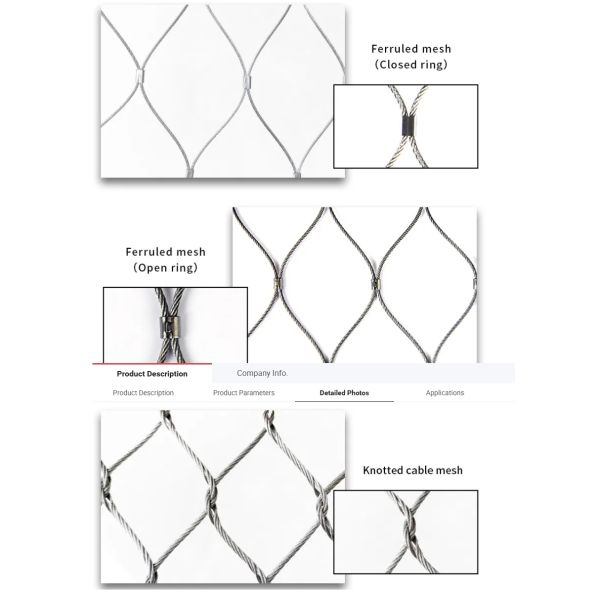

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Rope Fencing Screen Architectural Wire Mesh

Application:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Rope Fencing Screen Architectural Wire Mesh
