High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
Specifications
Brand Name :
QIJIE
Model Number :
Steel Wire Rope Mesh
Certification :
CE,SGS,ISO
Place of Origin :
Hebei, China
MOQ :
10 square meters
Payment Terms :
30%TT in advance, Balance before loading
Supply Ability :
3000 m2/month
Delivery Time :
10-15 working days
Packaging Details :
wooden case
Material :
STAINLESS STEEL WIRE
Type :
Rope Mesh, Ferrule Type or Knotted Type
Application :
Protecting Mesh
Weave Style :
Plain Weave
Technique :
woven
Processing Service :
Weave
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Accessories :
All could be provided
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence

The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201,304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh

Parameters of stainless steel wire rope mesh

material stainelss steel 304 316 316L etc.
wire diameter 1.0 - 3.0mm
feature flexible, high-Strength
technique woven wire mesh
mesh rolls size 1x30m 2x30m 4x30m or according to clients' requirements
structure 7*7 or 7*19
surface flat and bright

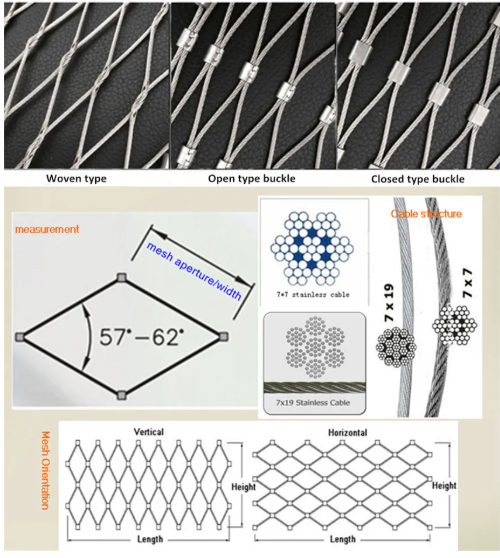

Weaving Types
Knotted Type, Ferruled type.

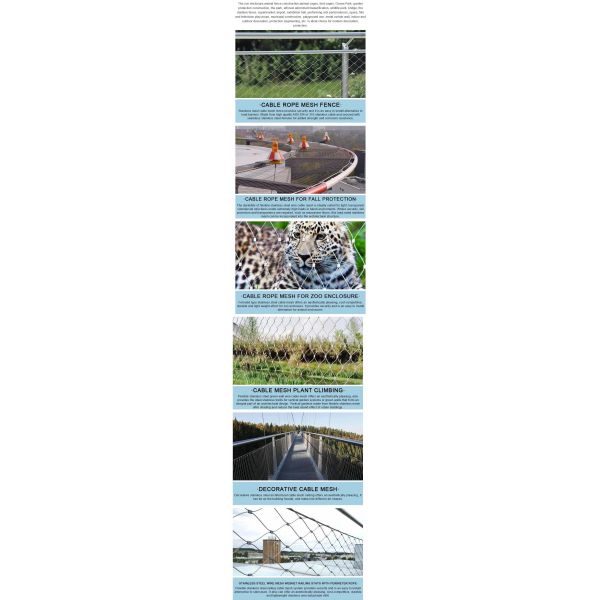

Use of stainless steel wire rope mesh
Zoo fence: animal enclosures, aviary mesh, bird cage, wildlife park, marine park, etc.
Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc
Safety net: stair/balcony railing, balustrade, bridge safety net, anti-fall net, etc.
Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall system

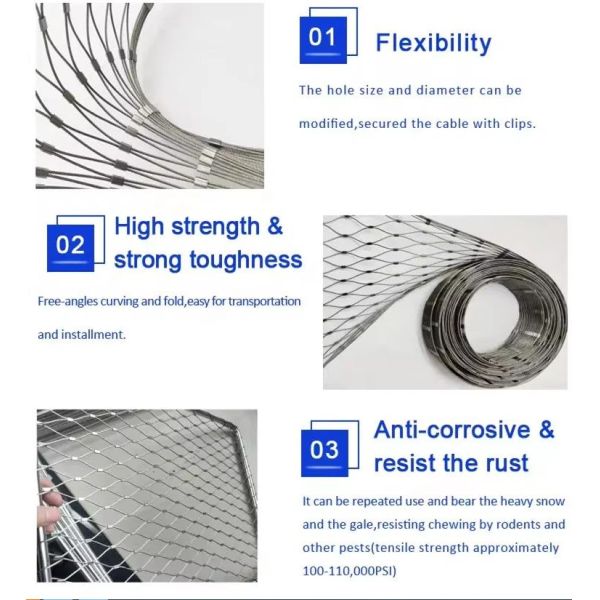

Advantages of stainless steel cable mesh
1. Excellent flexible performance.
2. Virtually indestructible.
3. Most impacting resistant and breaking resistant force, most resisting rain, snow
4. High strength, strong toughness,free angles curving and fold, easy for transportation and installment.
5. Service life is over 30 years.
Material: SUS302, 304, 316, 316L
Wire diameter: 1.0mm-3.0mm
Structure:7*7,7*19.
Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
1.Flexible stainless steel cable mesh (Inter-woven type)
Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

The specification of stainless steel knotted rope mesh
Code
Rope Construction
Rope Diameter
Opening Size
Breaking Force
Inch
mm
Inch
mm
KN
BR-01
7 × 19
1/8
3.2
4.7" × 4.7"
120 × 120
7.38
BR-02
7 × 19
1/8
3.2
4" × 4"
102 × 102
7.38
BR-03
7 × 19
1/8
3.2
3.6" × 3.6"
90 × 90
7.38
BR-04
7 × 19
1/8
3.2
3" × 3"
76 × 76
7.38
BR-05
7 × 19
1/8
3.2
2" × 2"
51 × 51
7.38
BR-06
7 × 7
3/32
2.4
4" × 4"
102 × 102
4.18
BR-07
7 × 7
3/32
2.4
3.6" × 3.6"
90 × 90
4.18
BR-08
7 × 7
3/32
2.4
3" × 3"
76 × 76
4.18
BR-09
7 × 7
3/32
2.4
2.4" × 2.4"
60 × 60
4.18
BR-10
7 × 7
3/32
2.4
2" × 2"
51 × 51
4.18
BR-11
7 × 7
5/64
2
3" × 3"
76 × 76
3.17
BR-12
7 × 7
5/64
2
2.4" × 2.4"
60 × 60
3.17
BR-13
7 × 7
5/64
2
2" × 2"
51 × 51
3.17
BR-14
7 × 7
5/64
2
1.5" × 1.5"
38 × 38
3.17
BR-15
7 × 7
1/16
1.6
3" × 3"
76 × 76
2.17
BR-16
7 × 7
1/16
1.6
2" × 2"
51 × 51
2.17
BR-17
7 × 7
1/16
1.6
1.5" × 1.5"
38 × 38
2.17
BR-18
7 × 7
1/16
1.6
1.2" × 1.2"
30 × 30
2.17

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence

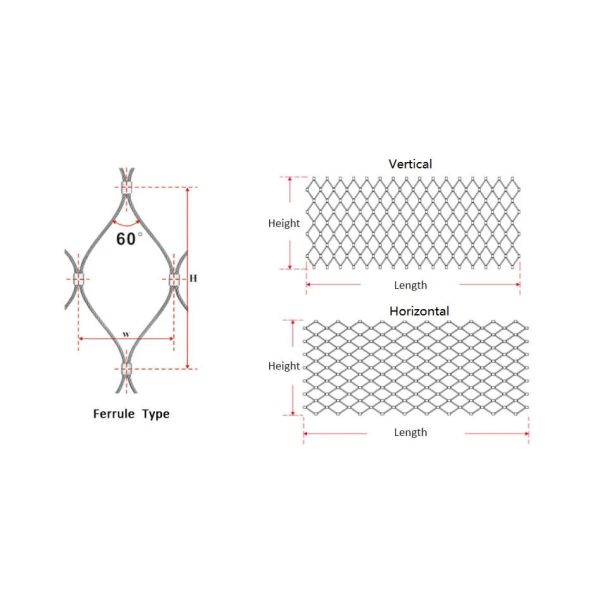

2.Flexible stainless steel cable mesh (Ferrule type)
Our flexible stainless steel cable mesh are supplied in two main series : Inter-woven and Ferrule. Our mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc and two main strand structures:7*7 and 7*19.cable dia.1mm-4mm and mesh size:20mm-160mm. The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
The specification of stainless steel ferrule rope mesh
Code
Rope Construction
Rope Diameter
Aperture
Breaking Force
Inch
mm
mm
kN
BR-01
7 × 19
1/8
3.2
120 × 208
7.38
BR-02
7 × 19
1/8
3.2
100 × 173
7.38
BR-03
7 × 19
1/8
3.2
90 × 156
7.38
BR-04
7 × 7
3/32
2.4
100 × 173
4.18
BR-05
7 × 7
3/32
2.4
90 × 156
4.18
BR-06
7 × 7
3/32
2.4
80 × 139
4.18
BR-07
7 × 7
3/32
2.4
70 × 121
4.18
BR-08
7 × 7
5/64
2
100 × 173
3.17
BR-09
7 × 7
5/64
2
90 × 156
3.17
BR-10
7 × 7
5/64
2
80 × 139
3.17
BR-11
7 × 7
5/64
2
70 × 121
3.17
BR-12
7 × 7
1/16
1.6
80 × 139
2.17
BR-13
7 × 7
1/16
1.6
70 × 121
2.17
BR-14
7 × 7
1/16
1.6
60 × 104
2.17
BR-15
7 × 7
1/16
1.6
51 × 87
2.17
BR-16
7 × 7
3/64
1.2
80 × 139
1.22
BR-17
7 × 7
3/64
1.2
60 × 104
1.22
BR-18
7 × 7
3/64
1.2
50 × 87
1.22

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence

High Security SUS 304 316 Stainless Steel Wire Rope Cable Ferrule Mesh for Balcony Railing Fence
