Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
Specifications
Brand Name :
Qijie
Model Number :
field fence machine
Certification :
sgs
Place of Origin :
China
MOQ :
1pcs
Price :
Discuss
Payment Terms :
L/C, T/T
Supply Ability :
15pcs
Delivery Time :
15-18days
Packaging Details :
wood case, steel pallet
Material :
steel
Name :
Automatic Field Fixed Knot Cattle /Deer Grassland
Max Length of Roll :
100m
wire gauge :
2.5mm-3.0mm
Description

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

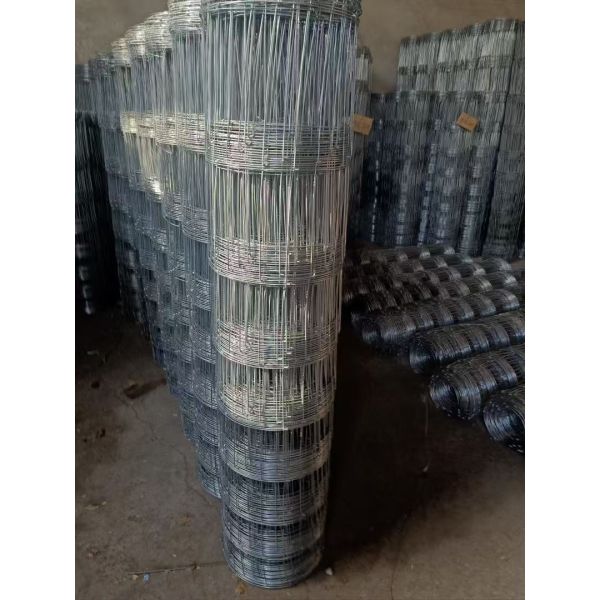

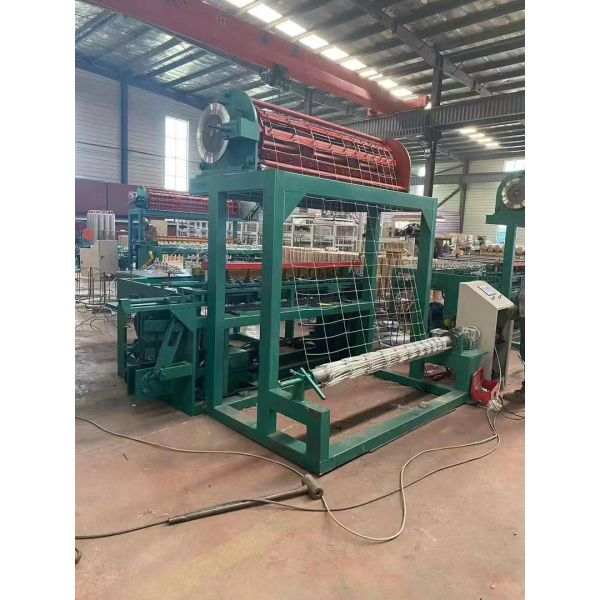

Fixed Knot field fence machine is used to weave wrap-around fence. it can weave the diameter wire and weft wire together automatically. lt is developed after many years since our company has independent intellectual property rights, self-made.lt uses sophisticated computer control, advanced production technology.With novelty, high degree of automation, operational safety and reliability,.

Model Parameters 18-2080 20-2438
Maximum Fence width 2080mm(82") 2438mm(96")
Maximum number of Line Wires 18 20
Line Wire Spacing 76mm(3")x6+100mm(4")x2+127mm(5")x2
+152mm(6")x3+178mm(7")x4		 76mm(3")x6+100mm(4")x2+127mm(5")x2
+152mm(6")x3+178mm(7")x6
Line wire spacing Min. 76mm (3''). It can be increased by a multiple of 25mm (1'')
Stay Wire Spacing 75mm.150mm.225mm.300mm.450mm
Edge Wire Size ф2.5mm-3.0mm
Line Wire Size $2.50mm
Stay Wire Size ф2.5mm
Knot Wire Size ф2.0mm,$2.2mm
Line Wire Tensile Range 850-1350N/mm2
Stay Wire Tensile Range 525-850N/mm2
Knot Wire Tensile Range 400-525N/mm2
Max Length of roll 100m/roll
No.Strokes (Stay Wires) Per Minute 25row/min
Control system servo motor,PLC
Total Machine weight 8T 10T
Approximate Floor Area Required 10mx22m 11mx22m

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price

1 .Solid steel plate and gear boxes ensure levels of vibration are kept to a minimum in operation.
2.Precision running gear in all critical areas maintains reliability and quiet operation

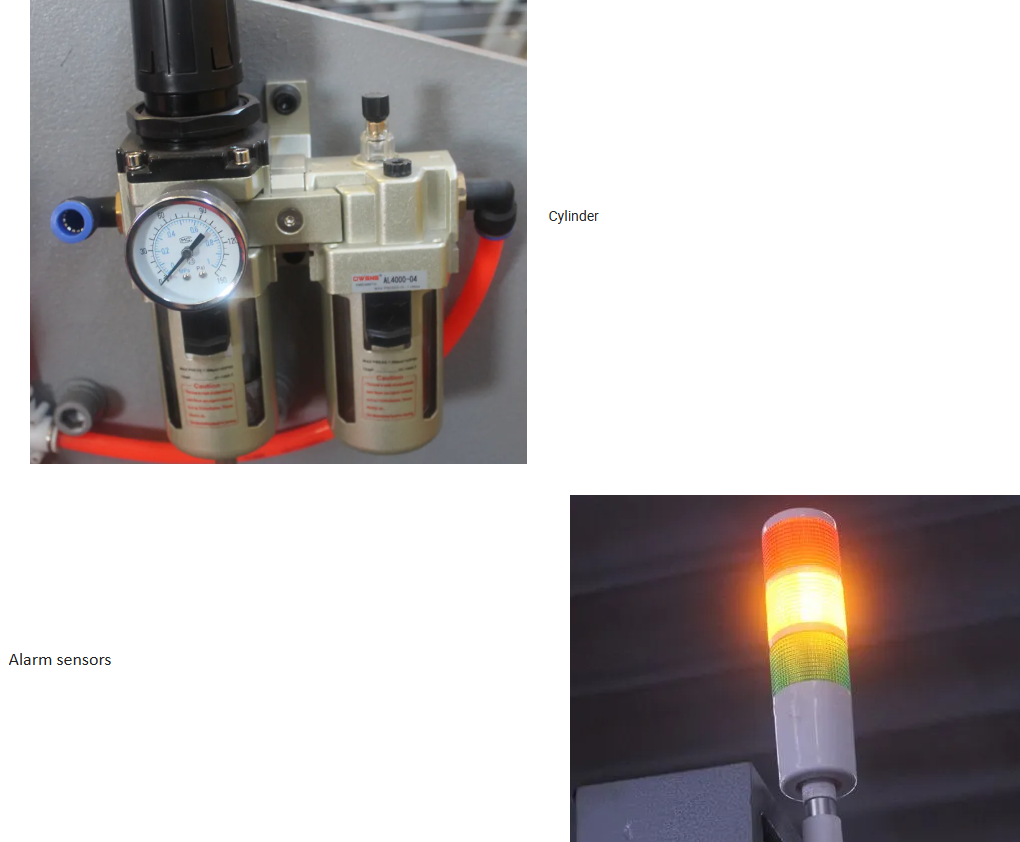

3.Comprehensive level of sensing equipment in the tie feed, back frame, stay-feed and through-process sensors.
These sensors pick up faults and missing wire which allows the machine to be confidently run with minimal supervision.
4.Auto Wire-Stripping-Table releases finished rolls to the pickup zone and re-sets for windup allows for the easy removal of any type of roll.
5.Setup allows minimum line wire spacing of 3" and produces a tight strong fence highly suitable
for security,horse and pig fencing applications with the Fixed Knot, through to 48" for economy fences.
6.Replacement components available on request, with an extensive range of parts stocked and ready for direct shipment.

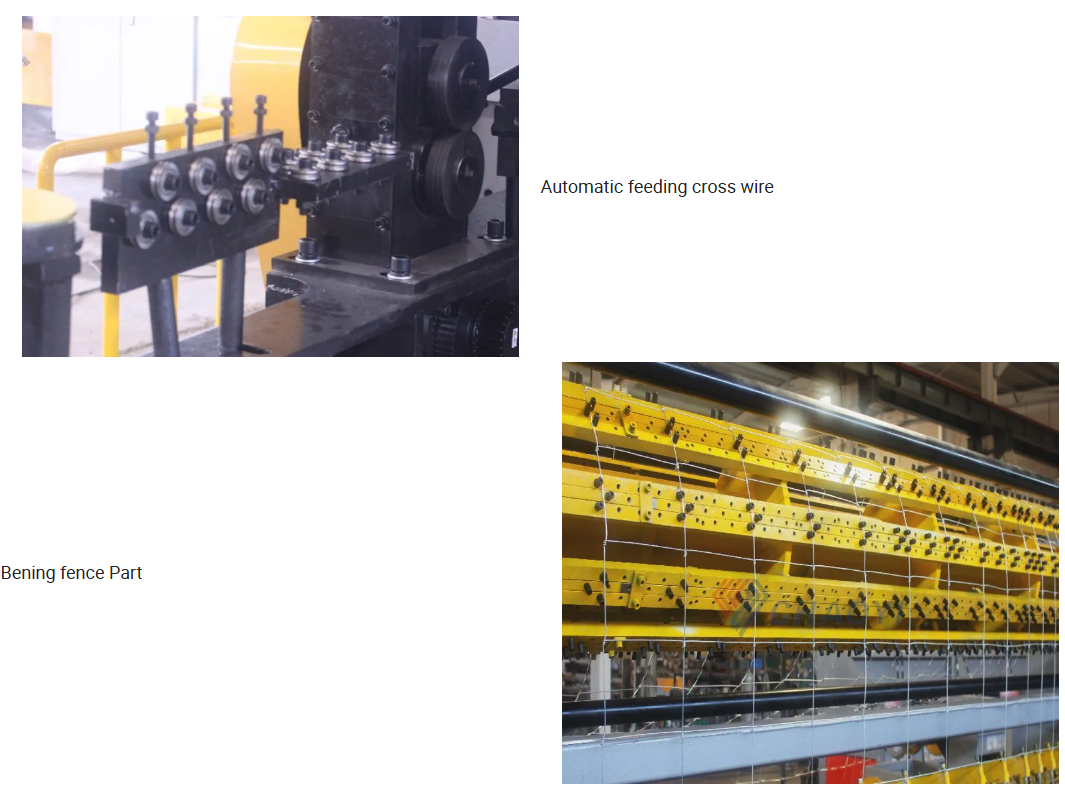

7.Automated Crimp Drum and Dual Stay Wire feed allows for rapid changeovers where frequent specification changes are required
8.Fixed knot fence machine specification (Special specifications can be made by your requests)

Automatic Field Fixed Knot Cattle /Deer Grassland Mesh Fence Netting Machine Price
