High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning
High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning
High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning
High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning
Specifications
Brand Name :
XMESH
Model Number :
QJ-355
Certification :
SGS
Place of Origin :
Hebei, China
MOQ :
200pcs
Payment Terms :
TT/LC
Supply Ability :
3000 pcs per month
Delivery Time :
15-25days
Packaging Details :
With steel pallets
Material :
manganese steel
Wire diameter :
6.0 mm
Hole shape :
rectangle
Weaving type :
Plain weave
Technic :
Woven mesh
Tensile strength :
800 - 1000 MPa
Email :
devin@industrialmetalmesh.com
whatsapp :
+8615369013183
Description

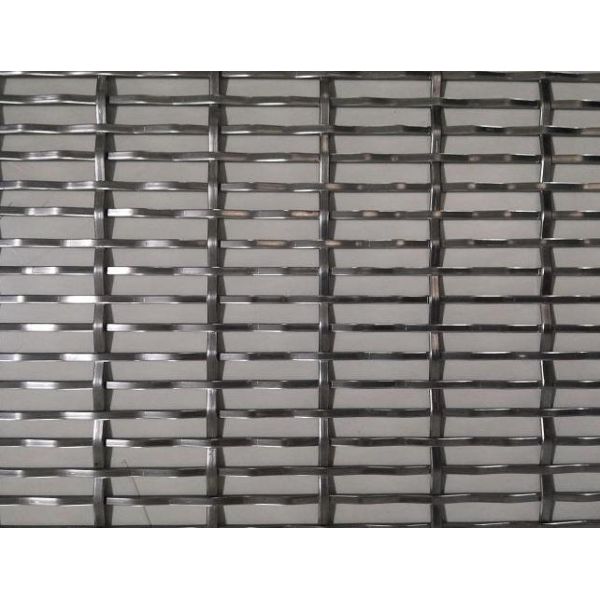

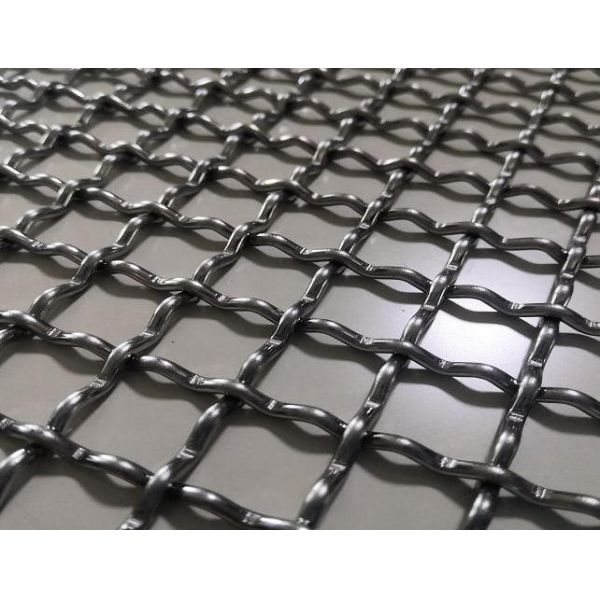

High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning​

It is also called Quarry Screen Mesh, Minning Screen Mesh, and Stone Crusher Screen Mesh.

King De Long Vibrating Screens are manufactured using high-quality wires such as mild steel or stainless steel, or with other materials available on request. We weave a full range of square, slotted, and elongated holes and crimps for all screen sizes. These Screen Mesh can be supplied flattened with raw edges, hooked or curved.

High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning

We manufacture Vibrating Screen Mesh for our customers with the following range of specifications:

Common Wire Mesh Aperture: 1.2mm to 150mm
Woven Wire Thickness: 1.2mm – 13mm
Mesh Types: Square Mesh, Rectangular Slotted Mesh, and Elongated Mesh
Crimping Types: Single Crimp, Double Crimp, Lock Crimp, Flat Top

High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning

Applications:

Vibrating screen machines.
Crushers.
Trommel.
Mining industry.
Quarry.
Chemical industry.
Dewatering industry.
Sand and gravel industry.
Aggregate industry.
Food processing.

Features

High strength, high bearing capacity.
High corrosion resistance, acid, and alkali resistance.
Good adaptability, high-temperature, and low-temperature resistance.
No blinding and plugging.
Easy to install and maintain.
Various types of vibrating screen mesh.

Here are some very commonly used Crimped Woven Vibrating Screen Mesh Specifications, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.

Commonly Used Crimped Woven Vibrating Screen Mesh Specifications
Aperture mm Wire Diameter mm Open Area (%) Weight Kg/m2
8 2 64 5.6
10 2 69.4 4.7
15 2 73.5 4
15 2.5 75.6 4.1
20 2.5 79 3.9
20 3 75.6 5.5
25 2.5 82.6 3.2
25 3 81.2 3.9
30 3 82.6 3.8
40 4 82.6 5.1
50 4 85.7 4.2
50 5 82.6 6.4

Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.

King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.

For your reference, some photos of our products and factory are listed here, please check.


High Carbon Steel Crimped Woven Vibrating Screen Mesh for Minning
