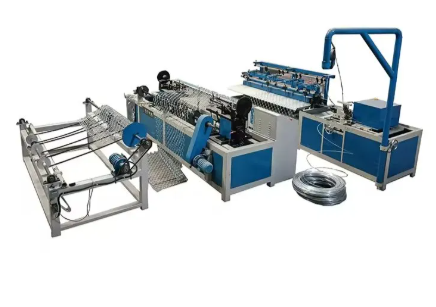

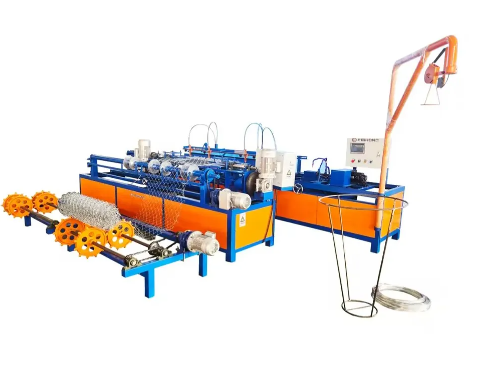

Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Specifications
Brand Name :
Qijie
Model Number :
chain link fence machine
Certification :
sgs
Place of Origin :
China
MOQ :
1pcs
Price :
Discuss
Payment Terms :
L/C, T/T
Supply Ability :
15pcs
Delivery Time :
15-18days
Packaging Details :
wood case, steel pallet
Machineweight :
2500 kg
Email :
devin@industrialmetalmesh.com
Powersupply :
380V, 50Hz, 3 Phase
wire Thickness :
1.7mm
Power :
3KW
Production capacity :
500-1500 sqm per day
Machinedi mensions :
3500mm x 1500mm x 1800mm
Meshtype :
Welded Wire Mesh
Feed Wire Systerm :
Double Wire Or Single Wire
Description

Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection

MONOFILAMENT CHAIN LINK FENCE MACHINE
This machine is easy to operate, offers stable operation, and a long service life. It's particularly suitable for working with low-quality raw materials (wire).
Powered by a servo motor, the monofilament chain link fence uses various dies to form the wire into a wavy shape. The wavy wire is then flipped over and joined to the next piece, completing the net. Furthermore, our side-locking mechanism is highly effective, and a shrinking machine allows the net to be retracted for transport.
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
ADVANTAGES OF MONOFILAMENT CHAIN FENCE MACHINES
This automatic chain fence machine utilizes high-quality components such as NSK bearings, a Parker hydraulic system, hardened and brazed gears, and internationally renowned electrical components.
Strict quality management ensures the superior quality and long service life of the chain fence machine.
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Flexible Mesh Dimensions:
Produces mesh widths from 500-3000mm and lengths up to 30m or customized specifications
Efficient Roll Formation:
Automated rolling system creates compact, easy-to-handle mesh rolls
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
Specification
TECHNICAL PARAMETERS
Netting Width Specification
2M
3M
4M
No. Of Input Wires
1
Capacity(Based On Mesh Size 50mm*50mm)
60-70M2/H
Power Supply
380V 50Hz (Other Requirements Can Be Custom-Made)
Speed Of The Axle Of The Shaped Knife
200-700RPM
Suitable Wire To The Machine
Galvanized Wire, PVC Wire, Steel Wire
Diameter Of Wire
1.6-4.0Mm(Depend On The Mesh Size)
Power Consumption
7.17Kw, 5 Motors(Based on 4M, It relates to the Dia. of wire, and the power can be custom-made.)
Mesh Size
25*25mm-100*100mm (if the mesh size is 25*25mm, the steel wire should be all soft)
Weight Of Equipment
2.2T
2.5T
3.0T
Main Machine Outer Size
4.8M*1.1M*2.3M
5.5M*1.1M*2.3M
6.5M*1.1M*2.3M
Auxiliary Machine Outer Size
2.5M*1.5M*1.1M
4M*1.5M*1.1M
4.5M*1.5M*1.1M
The Color Of The Machine
Can Be Custom-Made
Max. Winding Capacity
30 Meters Per Roll

INTELLIGENT PRODUCTION CONTROL
Automated Wire Joining:
A Sophisticated joining mechanism ensures a seamless connection between wire segments

Transportation & Storage Optimization:
Mesh Compacting System: Integrated shrinking machine reduces mesh volume for cost-effective transportation and storage
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
COMPREHENSIVE INDUSTRIAL APPLICATIONS

Airport Perimeter Fencing:
High-security applications requiring robust, reliable barrier solutions

Railway Security Systems:
Durable fencing for transportation infrastructure protection

Highway Safety Barriers:
Weather-resistant fencing for roadway safety and boundary demarcation

Commercial & Industrial Security:
Professional-grade fencing for factories, warehouses, and commercial properties
Diamond Wire Mesh Chain Link Fence Weaving Netting Making Machine for Baseball Field Protection
