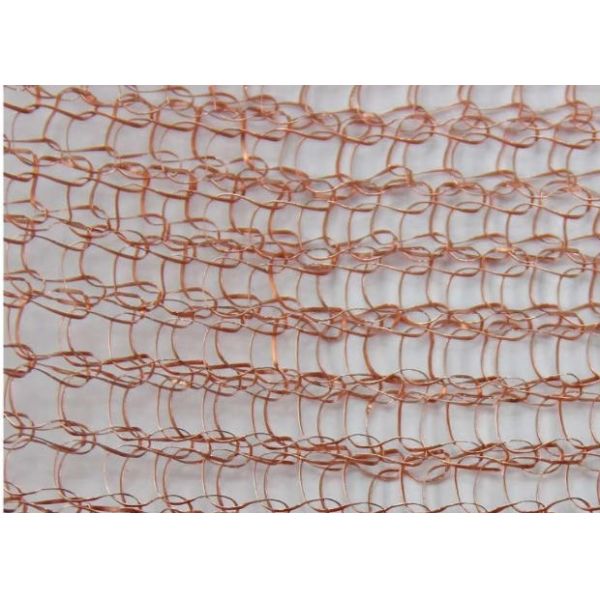

Premium Copper Wire Mesh Double Round Knitted Wire Mesh
Premium Copper Wire Mesh Double Round Knitted Wire Mesh
Premium Copper Wire Mesh Double Round Knitted Wire Mesh
Premium Copper Wire Mesh Double Round Knitted Wire Mesh
Specifications
Brand Name :
Qijie
Model Number :
copper wire mesh
Certification :
copper wire mesh
Place of Origin :
China
MOQ :
100pcs
Price :
Discuss
Payment Terms :
L/C, T/T
Supply Ability :
1500pcs
Delivery Time :
15-18days
Packaging Details :
paper cartons
Material :
copper wire
wire diameter :
0.16mm
width :
60mm
Description

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Stainless steel knitted wire mesh for demister pad Introduction:
gas-liguid Separator, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L,;other galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Stainless steel knitted wire mesh for demister pad Specifications
AVAILABLE MATERIALS / ALLOY
STAINLESS STEEL: 304, 304L, 316L 430, INCONEL, MONEL,COPPER, BRASS,ALUMINUM,MILD STEEL (PLAIN & GALVANIZED)
WIRE DIAMETER
0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
ROLL WIDTHS
40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
HOLE SIZES
4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Recommendations:
Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Stainless steel knitted wire mesh Application:

It mainly used for processing demister, for separating gases inside the droplet, also be extrusion molding, for manufacturing a filtration device, in the automotive industry, the electronics industry has also been widely used.
