Epoxy Coated FULL THREAD BAR 32MM PSB930
Epoxy Coated FULL THREAD BAR 32MM PSB930
Epoxy Coated FULL THREAD BAR 32MM PSB930
Epoxy Coated FULL THREAD BAR 32MM PSB930
Specifications
Brand Name :
Qijie
Model Number :
Anchor Plate
Certification :
Anchor Plate
Place of Origin :
China
MOQ :
150pcs
Price :
Discuss
Payment Terms :
L/C, T/T
Supply Ability :
150pcs
Delivery Time :
15-18days
Packaging Details :
paper cartons
Material :
steel
Application :
Anchor Plate for Slope
Technique :
Perforated
Description

epoxy coated Threadbar Anchor System

1 Specification:

Threadbars, which ensure ease of coupling and stressing. The wide range of capacities (up to 4500 kN) enable threadbar anchors to be used for many applications.

Typical section lengths range from 6 to 12 meters. Where multiple short sections are required, the Anchor System may be more suitable.

Steel Grade Yield Strength ReL(RP0.2) MPa Tensile Strength Rm, MPa Elongation at failure A/% Uniform Elongation Agt/% Strssel Relaxation
Original Stress Relaxation Rate Afteer 1000h r/%
PSB785 ≥785 ≥980 ≥7 ≥3.5 0.8R ≤3
PSB830 ≥830 ≥1030 ≥6
PSB930 ≥930 ≥1080 ≥6
PSB1080 ≥1080 ≥1230 ≥6
PSB500 ≥500 ≥≥630 ≥10 ≥2.5

Epoxy Coated FULL THREAD BAR 32MM PSB930

1)Quickly installed, easily grouted
Rock bolt is in many ways a typical combination mechanical bolt, installed as a temporary rock support and later grouted to become permanent. But there are important differences. It’s quick and easy to install, simple to grout even with varying consistency and the polypropylene sleeve seals the bolt against corrosion.

Epoxy Coated FULL THREAD BAR 32MM PSB930

Unique corrosion protection

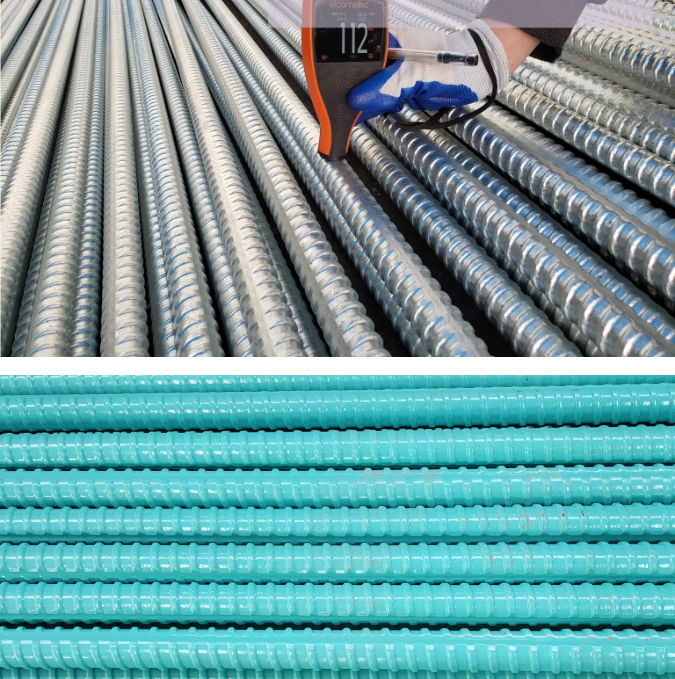

The rock bolt surface can be hot dip galvanized with zinc thickness ≥80um.

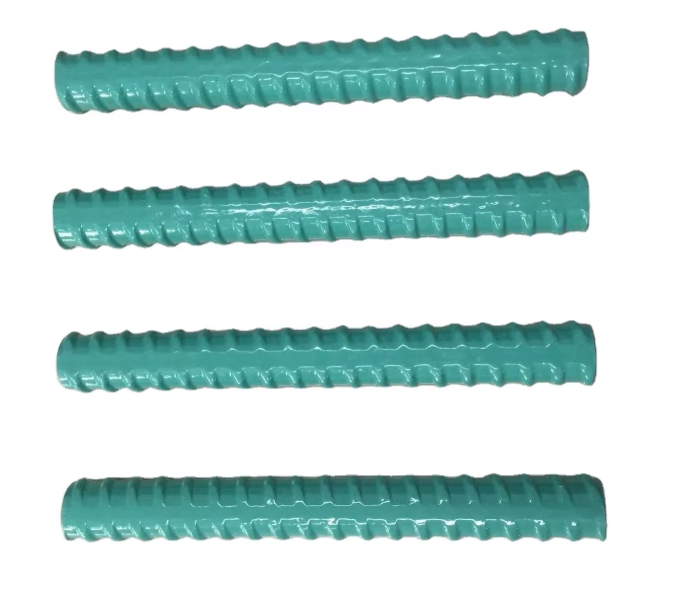

Epoxy coated threaded bars , thickness ≥80um or higher 220um, 280um.
Epoxy Coated FULL THREAD BAR 32MM PSB930

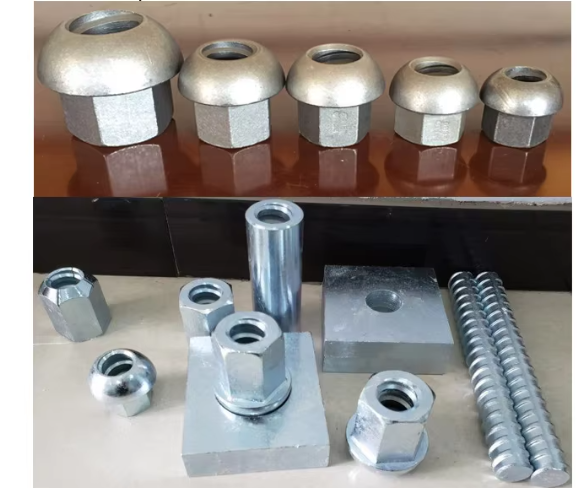

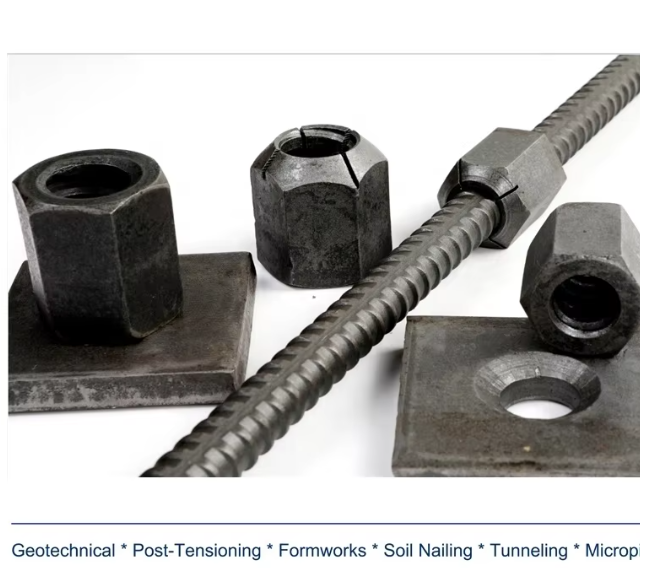

Full accessories are available: .

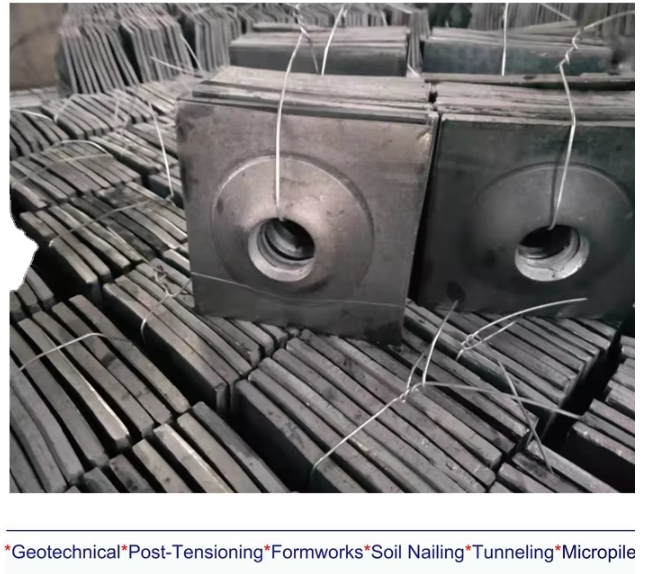

  • Bearing plates with angle compensation, different finishes, architectural features.

  • Borehole spacers : lantern or skid

  • Tubes for borehole grouting (bottom up)

  • Coupler forks for suspending sections within the borehole

Epoxy Coated FULL THREAD BAR 32MM PSB930

Epoxy Coated FULL THREAD BAR 32MM PSB930

Epoxy Coated FULL THREAD BAR 32MM PSB930

Epoxy Coated FULL THREAD BAR 32MM PSB930

Application

geotechnical, soil nailling,rock bolts,ground anchors,form work,reinforcement,post-tension system,bridge ,micro piles,mining and tunneling ect.
