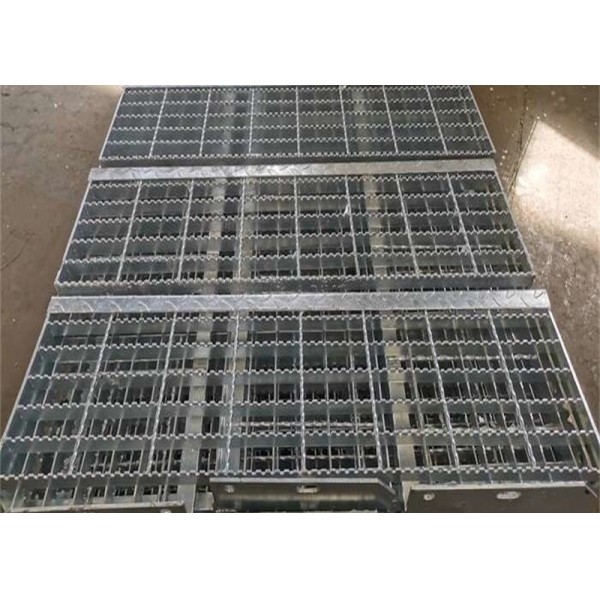

Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating
Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating
Specifications
Model Number :
Dimpled Hole Metal Sheets
Bearing bar shape :
Plain, Serrated I bar type Style Steel Grating
Payment Terms :
30%TT in advance, Balance before loading
Chemical Composition :
Fe, C, Si, Mn, S, P
Bearing bar width x thickness :
25x3mm
Delivery Time :
15-18days
Application :
Villa
Grate width :
800mm
Grate length :
1000mm
Mesh size :
30x100mm
Supply Ability :
1000pieces
Surface Treatment :
Hot-DIP Galvanizing, Painting or Untreated
Packaging Details :
pallets
Project Solution Capability :
graphic design, 3D model design, total solution for projects
MOQ :
10pieces
Email :
devin@industrialmetalmesh.com
Alloy Or Not :
Non-Alloy
Place of Origin :
China
Brand Name :
Dimpled Hole Metal Sheets
Cross bar shape :
round,twisted,bar shape
whatsapp :
+8615369013183
Description

Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating​

Galvanized Steel Grating
Our bar steel grating panels are manufactured in mild steel or stainless steel (AISI 304 or AISI 316). It is our standard practice to get mild steel bar grating panels hot dip galvanized to significantly increase their corrosion resistance, and on demand a polyester powder coated finish in any RAL color is also available as an option, which can allow the introduction of color in order to blend with the local environment. However our stainless steel (AISI 304 or AISI 316) panels are usually supplied in mill finish due to their inherent excellent corrosion resistance.
Our bar steel grating panels are very versatile and are used in many industries, such as commercial and residential areas, school buildings, industrial facilities, and airports.
To help you have some knowledge of our metal bar steel grating panels, we hereby show some pictures below for your information.


Specification
Learn more about the main components of metal bar grating
Material
Carbon Steel , Stainless Steel
surface treatment
Hot dip galvanizing,Painting,Spray coating,self colour
Product Process
Fully automatic pressure welding , manual welding
Bearing Bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
Bearing Bar Pitch
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
Steel Grade
ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Grating Standard
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JIS
Russia:GOST
Russian Standard
Common spacing of load-bearing flat steel:
11, 22, 33, 44
Common spacing for connecting flat steel:
11, 22, 33, 66
Surface treatment
Plating thickness ≥70 μm
Custom specifications available upon request


Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

Custom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel GratingCustom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel GratingCustom Heavy Duty Grating Supplier Galvanization Coat Metal Serrated Steel Grating

Key Features
· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
