Product descriptions

Chain link fence, also called Cyclone fences or diamond mesh fence, is made from steel wire fabrics. With variety of wire gauges and mesh size, chain link fence can be designed according to different applications. Moreover, it has the features of low cost,transparency, and easy installation. Chain link mesh rolls normally come with line wire and knuckled edges. Barbed edges are more popular and with higher security.

Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.

drawing of chain link fence

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

Loading of PVC coated Chain Link Fence

install of chain link fence

4' High x 250' Galvanized Chain Link Fence Packages Include:

• 250' - 4' High Galvanized Chain Link Fence Fabric
• 12 - 1-3/8" x 21' Galvanized Top Rails
• 20 - 1-5/8" x 6' Galvanized Line Posts
• 10 - 2-1/2" x 6'6" Galvanized Terminal Posts
• 20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
• 10 - 2-1/2" Chain Link Post Caps
• 14 - 48" Galvanized Chain Link Tension Bars
• 42 - 2-1/2" Galvanized Tension Bands
• 14 - 2-1/2" Galvanized Brace Bands
• 14 - 1-3/8" Rail End Cups
• 56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
• 1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
• 1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
• 2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

pvc coated chain link fence-001

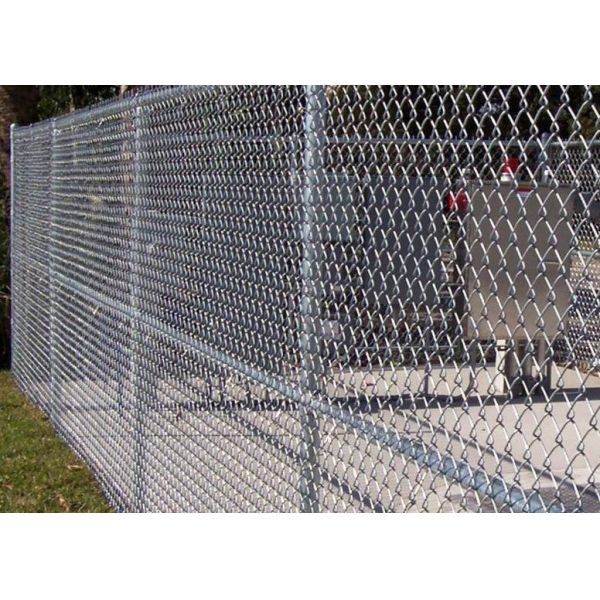

galvanized chain link fence-001

galvanized chain link fence-002

galvanized chain link fence-003

galvanized chain link fence-004

galvanized chain link fence-005
