Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend
Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend
Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend
Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend
Specifications
Model Number :
Steel Wire Rope Mesh
Raw Material :
Stainless Steel 304 316, Galvanized Wire
Technique :
woven
Supply Ability :
3000 m2/month
Application :
Protecting Mesh
Payment Terms :
30%TT in advance, Balance before loading
Weave Style :
Plain Weave
Delivery Time :
10-15 working days
Type :
Rope Mesh, Ferrule Type or Knotted Type
MOQ :
10 square meters
Packaging Details :
wooden case
Processing Service :
Weave
Place of Origin :
Hebei, China
whatsapp :
+8615369013183
Material :
STAINLESS STEEL WIRE
Email :
devin@industrialmetalmesh.com
Certification :
CE,SGS,ISO
Brand Name :
QIJIE
Accessories :
All could be provided
Description

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend​

Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net
The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201,304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh
The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19.
The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.

Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net

Also called SS cable mesh) made of high quality stainless steel wire twisted together, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility.
Item No.s
Cable Diameter
Mesh Opening Size(W×H)
inch
mm
inch
mm
BZ-32120F
1/8
3.2
4.75 x 8.23
120 x 207.8
BZ-32102F
1/8
3.2
4 x 6.9
102 x 176.7
BZ-3290F
1/8
3.2
3.55 x 6.15
90 x 156
BZ-3276F
1/8
3.2
3 x5.2
76 x 131.6
BZ-3251F
1/8
3.2
2 x3.46
51 x88.3
BZ-24102F
3/32
2.4
4x6.9
102x176.7
BZ-2490F
3/32
2.4
3.55x6.15
90x 156
BZ-2476F
3/32
2.4
3 x 5.2
76x 131.6
BZ-2460F
3/32
2.4
2.4x 4.16
60x 104
BZ-2451F
3/32
2.4
2x3.46
51 x 88.3
BZ-2076F
5/64
2.0
3 x 5.2
76 x 131.6
BZ-2060F
5/64
2.0
2.4x 4.16
60 x 104
BZ-2051F
5/64
2.0
2 x 3.46
51 x 88.3
BZ-2038F
5/64
2.0
1-1/2 x 2.6
38 x 65.8
BZ-1676F
1/16
1.6
1.2 x2.08
76 x 131.6
BZ-1651F
1/16
1.6
2x 3.46
51 x 88.3
BZ-1638F
1/16
1.6
1-1/2 x 2.6
38 x 65.8
BZ-1630F
1/16
1.6
1.2x2.08
30 x 52
BZ-1625F
1/16
1.6
1 x 1.73
25.4 x 44
BZ-1238F
3/64
1.2
1-1/2x2.6
38 x 65.8
BZ-1230F
3/64
1.2
1.2 x 2.08
30 x 52
BZ-1225F
3/64
1.2
1 x 1.73
25.4 x 44
BZ-1220F
3/64
1.2
4/5 x 1.39
20 x 34.6

Item
Cable Diameter
Mesh Opening
Application
YT-SS200/2
2.0mm
200*200mm
Architecture outdoor mesh
YT-SS40/02
2.0mm
40*40mm
Playground mesh,stadium protection mesh
YT-SS50/02
2.0mm
50*50mm
Playground mesh,decorative indoor mesh
YT-SS60/02
2.0mm
60*60mm
Architecture outdoor mesh,Playground mesh
YT-SS80/02
2.0mm
80*80mm
Decorative indoor mesh,Aviary mesh
YT-SS100/02
2.0mm
100*100mm
Airport protection mesh
YT-SS12002
2.0mm
120*120mm
Suspended ceiling mesh
YT-SS140/02
2.0mm
140*140mm
Overhead coverage mesh
YT-SS60/1.5
1.5mm
60*60mm
Playground mesh,Stairs Fence
YT-SS40/1.5
1.5mm
40*40mm
Playground mesh,aviary mesh,
Stairs Fence,Architecture mesh,
Animal enclosure
YT-SS100/1.5
1.5mm
100*100mm
Architecture outdoor mesh,
Pool protective net,Stairs Net
YT-SS50/1.5
1.5mm
50*50mm
Stairs Fence
YT-SS30/1.5
1.5mm
30*30mm
Shading canopy mesh,Tower Protection Net
YT-SS25/1.5
1.5mm
25*25mm
Aviary mesh
YT-SS20/01
1.0mm
20*20mm
Aviary mesh
YT-SS30/01
1.0mm
30*30mm
Aviary mesh
YT-SS40/01
1.0mm
40*40mm
Playground mesh,protection mesh
YT-SS50/2.5
2.5mm
50*50mm
Animal enclosure
YT-SS100/03
3.0mm
100*100mm
Safety net,overhead coverage mesh
YT-SS40/03
3.0mm
40*40mm
Playground mesh
YT-SS50/03
3.0mm
50*50mm
Barrier mesh,decorative indoor mesh
YT-SS80/03
3.0mm
80*80mm
Bridge safety net

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

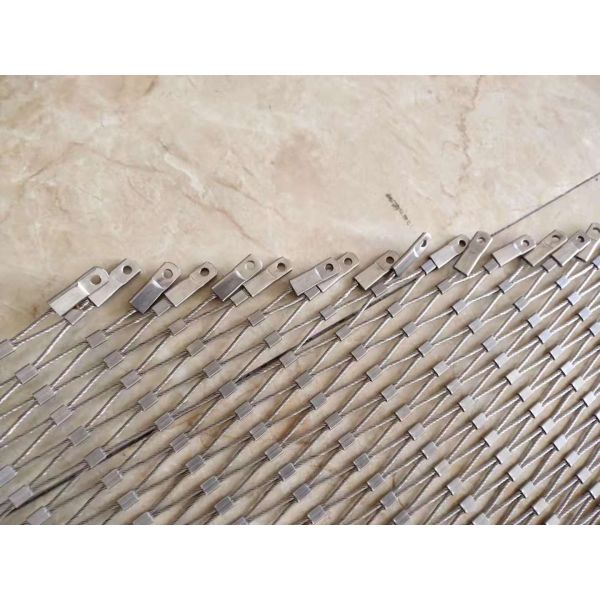

Buckle type

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.

Woven type

The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting

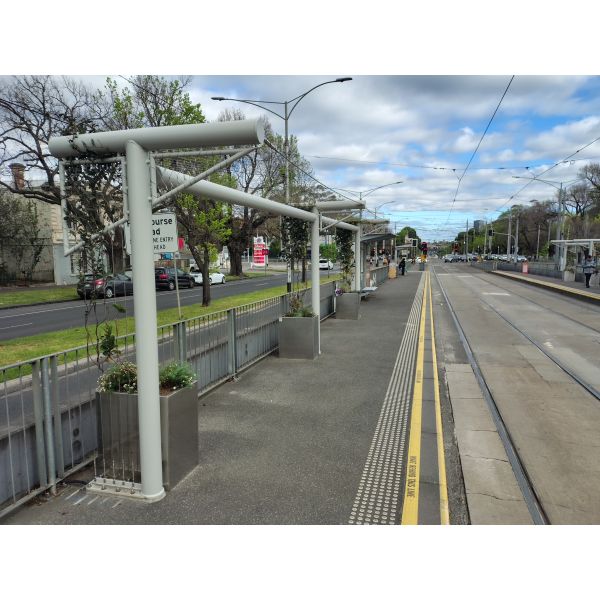

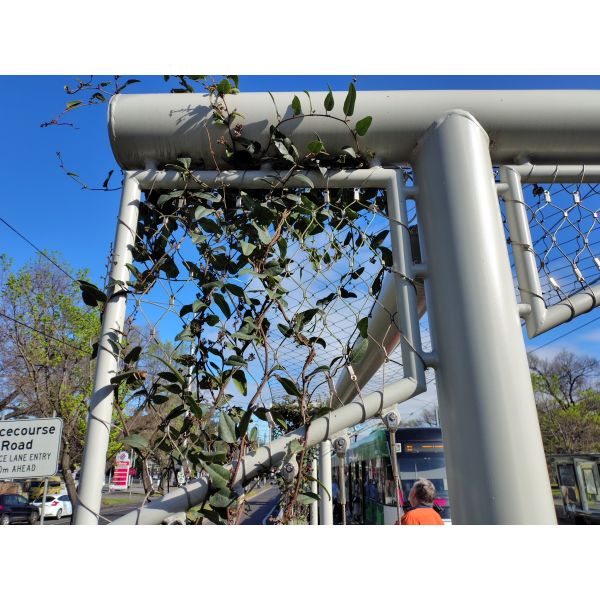

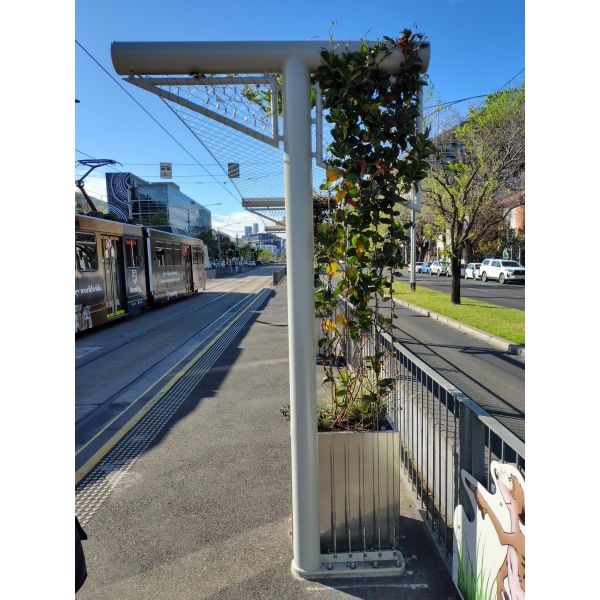

7. Green Facade - Cable System for Most Climbing Plants

Advantages

High-Strength Construction: Durable 304/316 Stainless Steel ensures longevity and reliability.
Exceptional Stability: Multiple junction points and high-strength closed ferrules provide robust support.
Superior Corrosion Resistance: Perfect for heavy-duty plant support in various environments.
Professional Factory: Over 16 years of experience guarantees high-quality and efficient production.
Customizable Packaging: Special packages can be tailored to meet specific customer needs.

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend

Family Outdoor Farm Stainless Steel Fence Rope Mesh/X Tend
