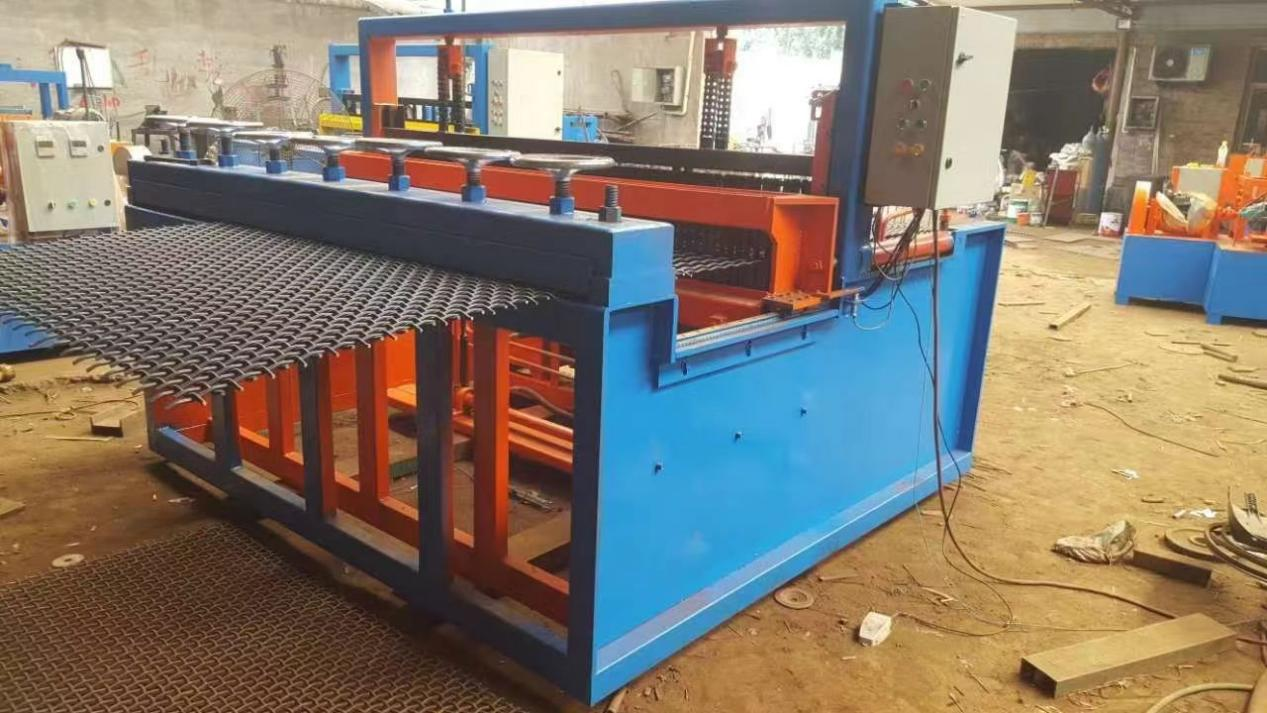

Fully automatic CNC knitting machine（0.75-2.5MM）
Fully automatic CNC knitting machine（0.75-2.5MM）
Fully automatic CNC knitting machine（0.75-2.5MM）
Fully automatic CNC knitting machine（0.75-2.5MM）
Specifications
Machinetype :
Automatic Wire Mesh knitting Machine
Model Number :
CNC knitting machine
Power Source :
Electric
MOQ :
1pcs
Delivery Time :
15-18days
Warranty :
1 Year
Payment Terms :
L/C, T/T
Motor Power :
11KW
Voltage :
380V
Price :
Discuss
Productname :
Wire Mesh Machine
Supply Ability :
15pcs
Weldingspeed :
20 - 60 times per minute
Certification :
sgs
Brand Name :
Qijie
Powersupply :
380V, 50Hz, 3 Phase
Packaging Details :
wood case, steel pallet
Place of Origin :
China
Description

Fully automatic CNC knitting machine(0.75-2.5MM)

Weaving and Characteristics: Doubles intermediate crimp, lock crimp, flat top crimp;Double crimp, sturdy structure.
Usage:Crimped Wire Mesh is used in Mine, coal Factory, Contruction and orther industries.Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour our stucture.

Fully automatic CNC knitting machine（0.75-2.5MM）

Product Parameters

MODEL LJ-01 LJ-02 LJ-03
Wire diameter 1-2.5mm 2.5-6mm 7-14mm
Mesh size 2-30mm 3-100mm 20-200mm
Width 1600mm 2500mm 2500mm
Motor 3.0KW 5.5KW 7.5KW
Speed 30-40row/min 20-40row/min 25row/min
Outside size 4000*2300*1800mm 3500*2100*1500mm 2900*2100*1700mm
Weight 3000kgs 3200kgs 3500kgs

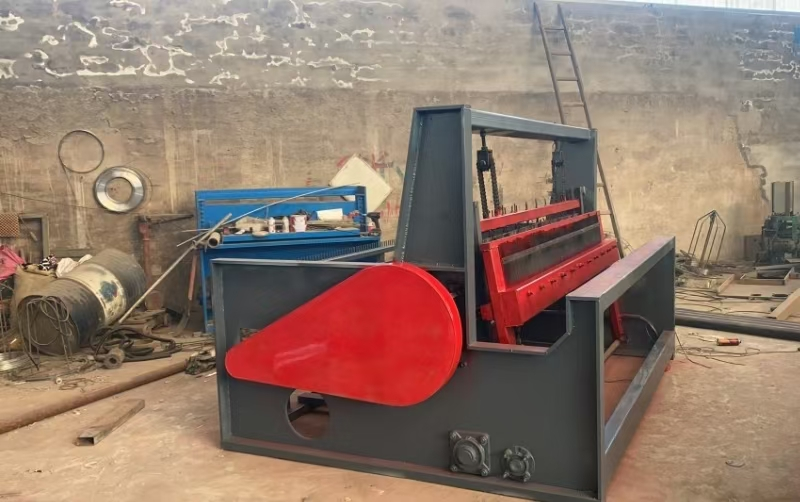

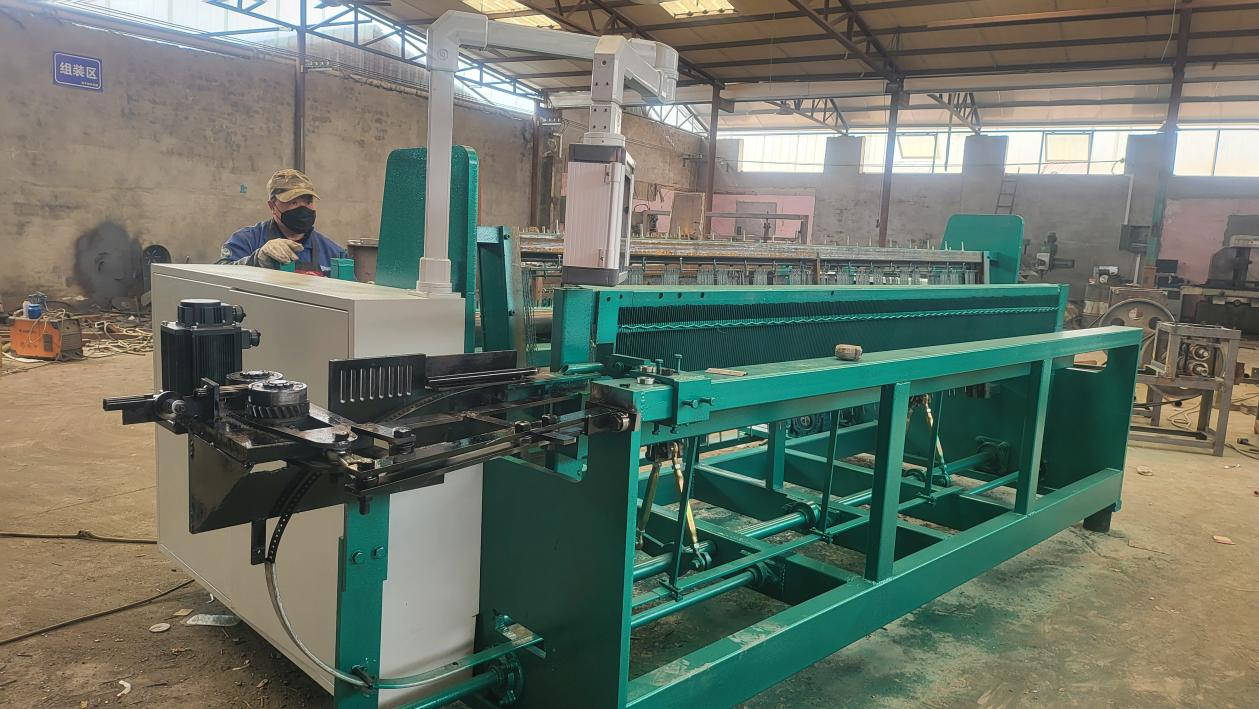

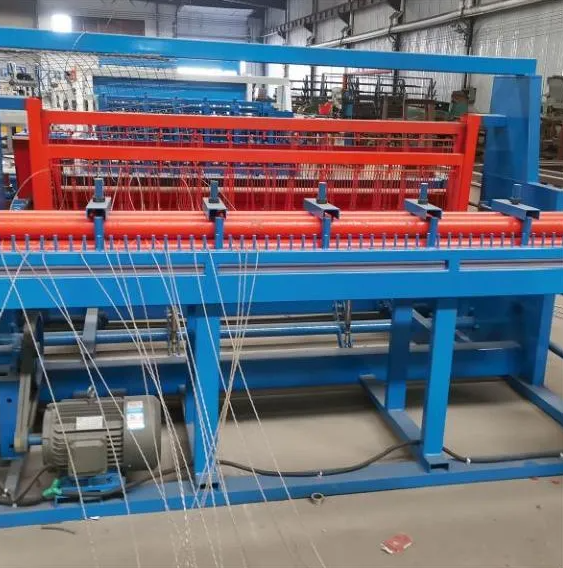

Main engine

Fully automatic CNC knitting machine（0.75-2.5MM）

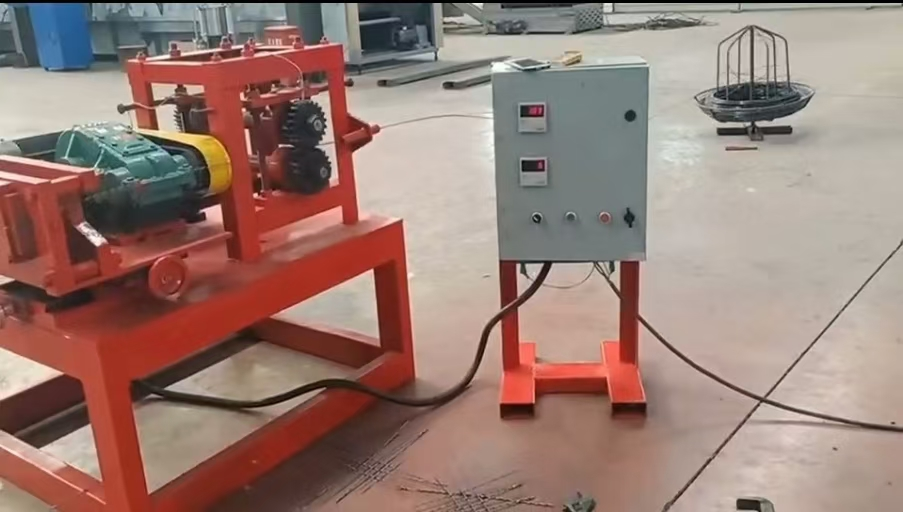

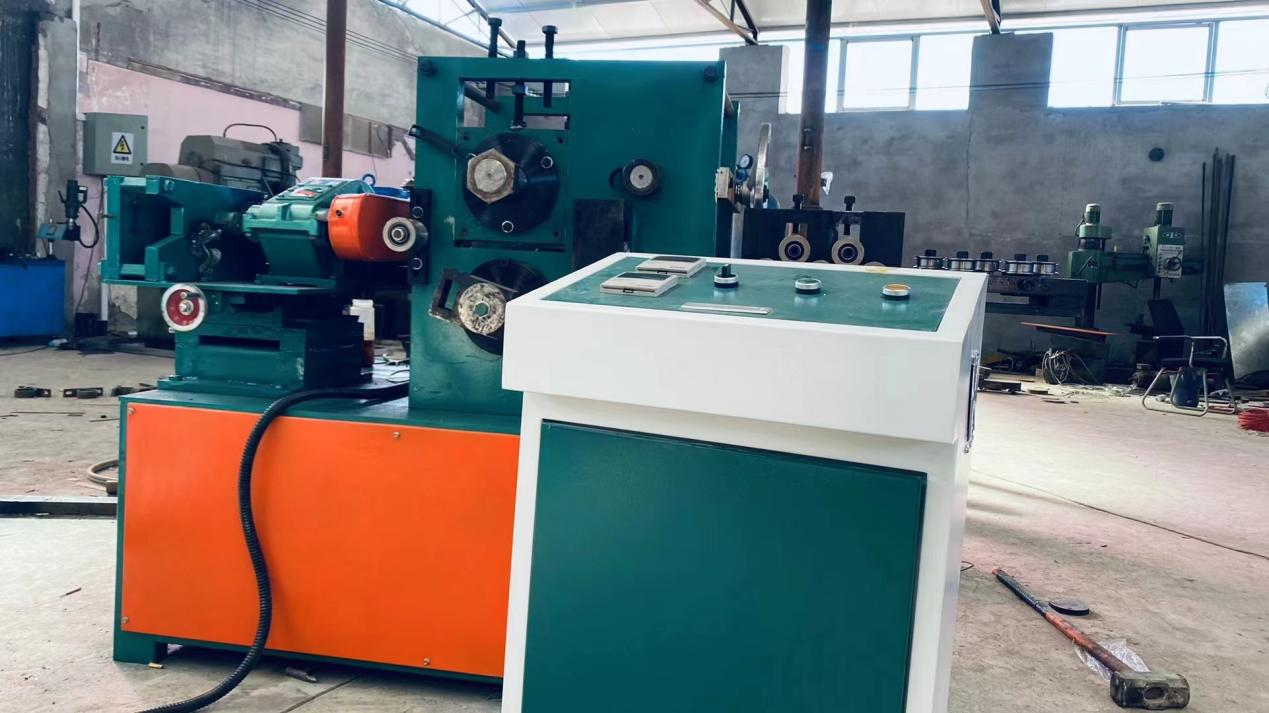

Auxiliary Machine

Fully automatic CNC knitting machine（0.75-2.5MM）

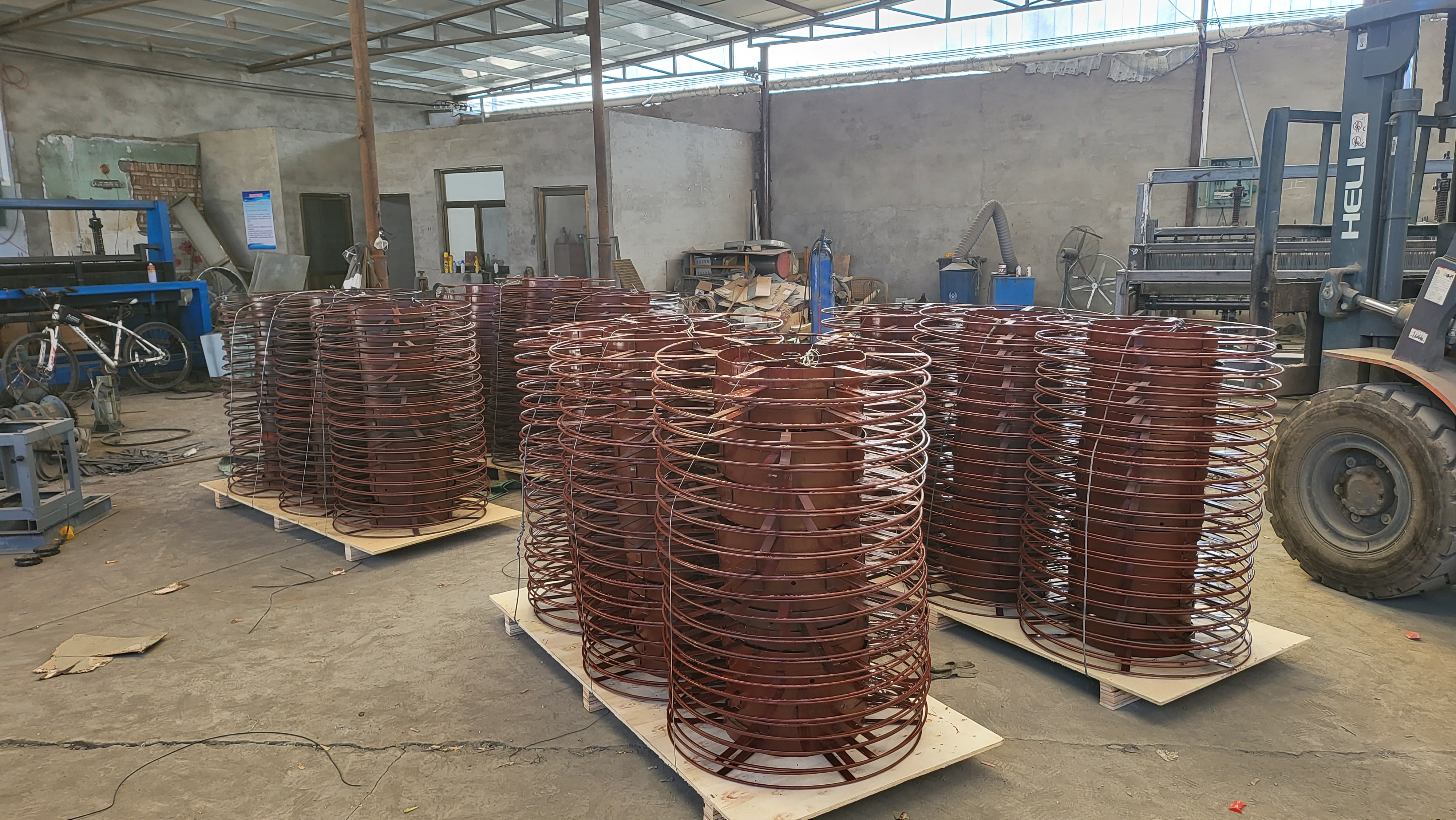

radial wire shaft

Fully automatic CNC knitting machine（0.75-2.5MM）

A knitting machine consists of the above three parts as a set. Here is the complete set price and specifications.

Weave width 1500MM 2000MM 2500MM 3000MM
Length 3500MM 4000MM 4500MM 5000MM
Width 2100MM 2100MM 2100MM 2100MM
Height 1400MM 1400MM 1400MM 1400MM
motor power 2.6KW+1.5KW+2.2KW+3KW 2.6KW+1.5KW+3KW+3KW 2.6KW+1.5KW+4KW+33KW 2.6KW+1.5KW+5.5KW+3KW
weight 2100KG 2600KG 3000KG 3500KG
Speed 20-40times/min = = =
Wire gauge 0.75-2.5MM wire dia. = = =
Price Usd7100 Usd7800 Usd8600 Usd10000

Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd450 per set. This price is the factory price only and does not include tax.

Fully automatic CNC knitting machine(1.5MM-4.5MM)

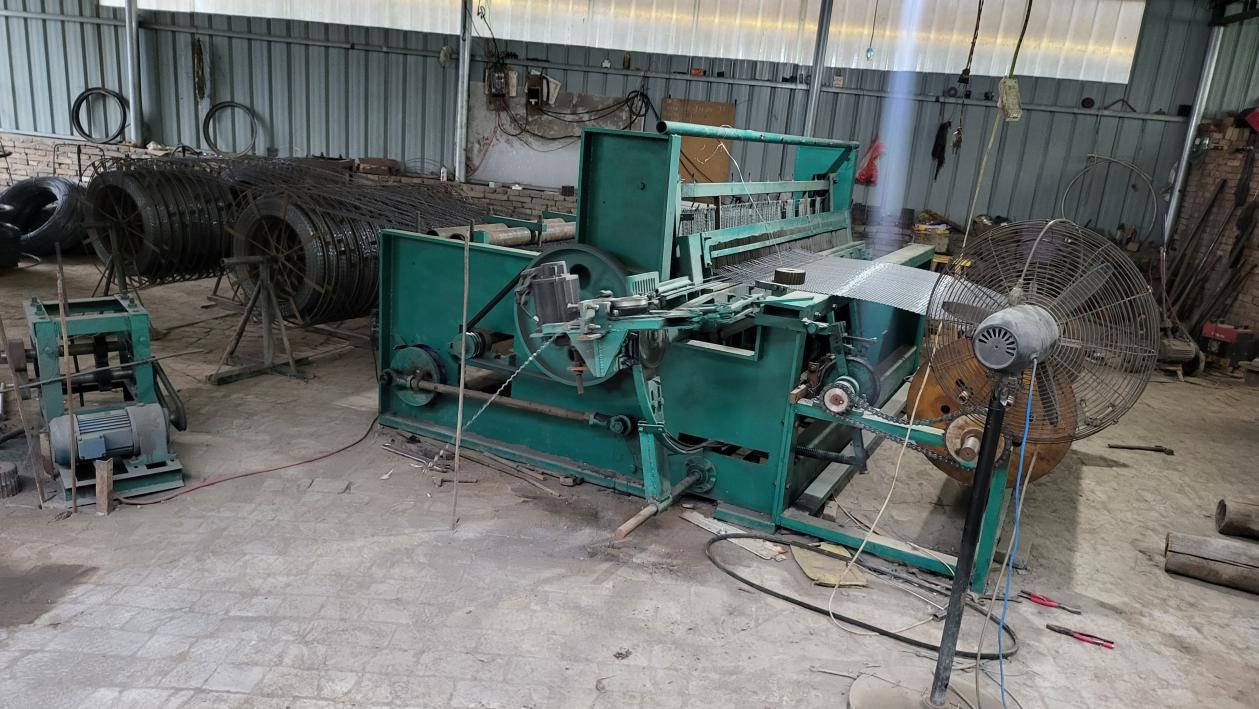

MainMachine

Fully automatic CNC knitting machine（0.75-2.5MM）

Fully automatic CNC knitting machine（0.75-2.5MM）

The two images show different models; the price list will differentiate between light and heavy-duty models. Please pay attention to the prices!

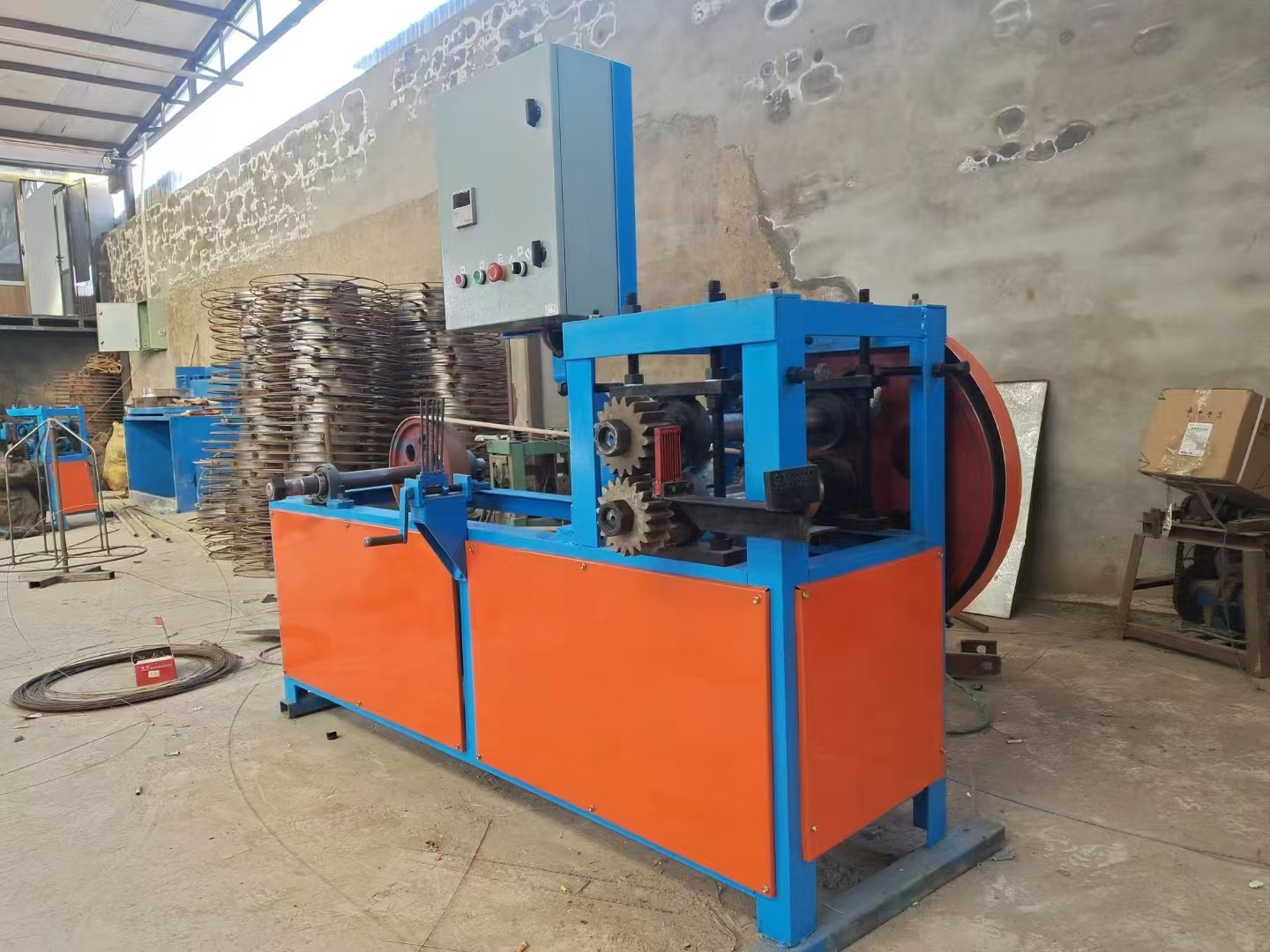

Auxiliary machine

Fully automatic CNC knitting machine（0.75-2.5MM）

radial wire shaft

Fully automatic CNC knitting machine（0.75-2.5MM）

A knitting machine consists of the above three parts as a set. Here is the complete set price and specifications.

Weave width 2000MM 2500MM 3000MM
Length 3400MM 3900MM 4400MM
Width 2100MM 2100MM 2100MM
Height 1500MM 1500MM 1500MM
motor power 2.6+2.6+1.5+5.5+3.8+4 2.6+2.6+1.5+5.5+3.8+4 2.6+2.6+1.5+6+3.8+4
Speed 25-40time/min = =
Weight 2600kg 3000kg 3400kg
Wire gauge 1.5-4.5MM = =
Light price Usd8600 Usd9300 Usd10300
Heavy price Usd9600 Usd10300 Usd11500

Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.

Fully automatic CNC knitting machine(2-6MM)

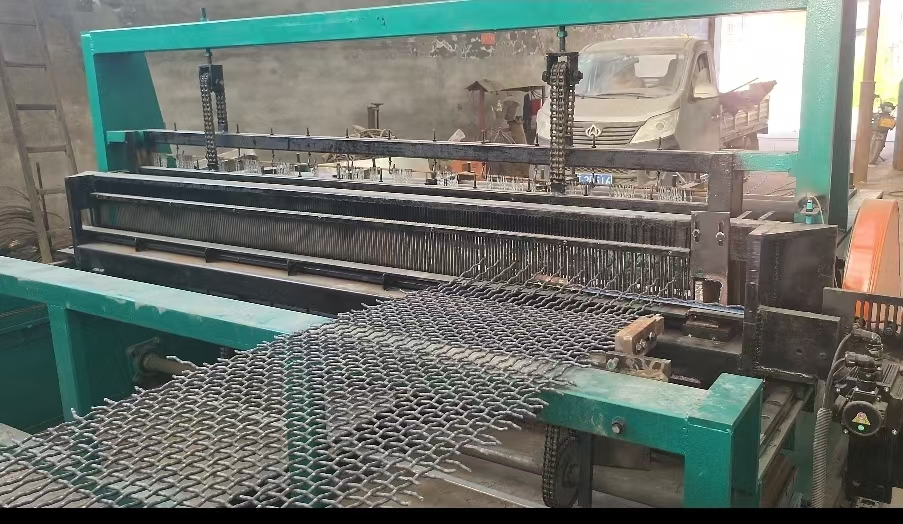

Main Machine

Fully automatic CNC knitting machine（0.75-2.5MM）

Auxiliary machine

Fully automatic CNC knitting machine（0.75-2.5MM）

The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.

Weave width 2000MM 2500MM
Length 3500MM 4000MM
Width 2100MM 2100MM
Height 1500MM 1500MM
Motor power 2.6+3.8+4+5.5+1.5+4 =
Speed 5-20times/min =
Weight 3000kg 3400kg
Wire Gauge 2-6MM 2-6MM
Price Usd9600 Usd10300

Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.

Semi-automatic knitting machine(1.8-6.5MM)

Note: Semi-automatic machines use manual threading methods.

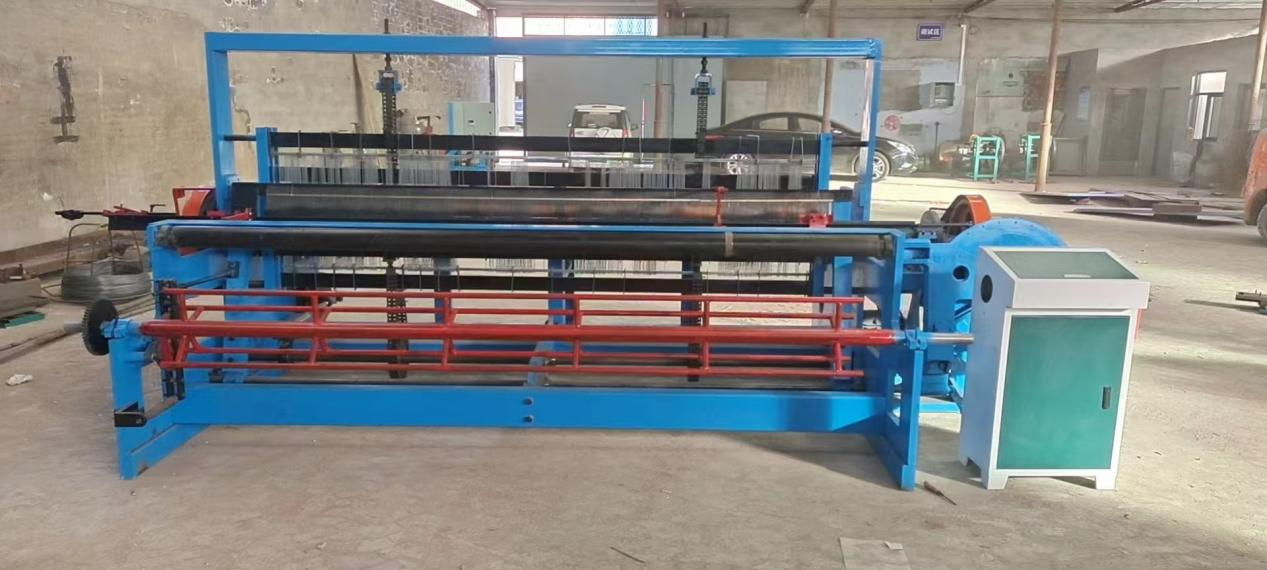

Main Machine​

Fully automatic CNC knitting machine（0.75-2.5MM）

Auxiliary machine

Fully automatic CNC knitting machine（0.75-2.5MM）

The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.

Weave width 2000MM 2500MM 3000MM 4000MM
Length 3000MM 3500MM 4000MM 5000MM
Width 2100MM 2100MM 2100MM 2100MM
Height 1500MM 1500MM 1500MM 1500MM
Motor power 4+4+1.5+4 = 4+5.5+1.5+4 =
Speed 10-25times/min = = =
Weight 3000kg 3400kg 3800KG 4000KG
Wire Gauge 2-6MM 2-6MM = =
Price Usd6200 Usd7000 Usd7700 Usd8500

Note: One set of molds is included with each machine model. Remaining molds are priced separately. Special voltages require an additional usd500 per set. This price is the factory price only and does not include tax.

Semi-automatic hydraulic braiding machine(6-12MM)

Note: Semi-automatic machines use manual threading methods.

Main Machine

Fully automatic CNC knitting machine（0.75-2.5MM）

Auxiliary machine

Fully automatic CNC knitting machine（0.75-2.5MM）

The knitting machine consists of the above two parts as a set. The complete set price and specifications are as follows.

Weave width 2000MM 2500MM 3000MM 4000MM
Length 2700MM 3200MM 3700MM 4700MM
Width 2100MM 2100MM 2100MM 2100MM
Height 1800MM 1800MM 1800MM 1800MM
Motor power 11kw = = =
Speed 10-25times/min = = =
Weight 2600kg 3000kg 3300kg 3600kg
Wire Gauge 6-12MM = = =
Price Usd8300 Usd8600 Usd9300 Usd10300
