Automatic High Tensile Twisted Wire Mesh Production Line
Automatic High Tensile Twisted Wire Mesh Production Line
Automatic High Tensile Twisted Wire Mesh Production Line
Automatic High Tensile Twisted Wire Mesh Production Line
Specifications
Motor Power :
11KW
Model Number :
CNC knitting machine
Packaging Details :
wood case, steel pallet
Voltage :
380V
MOQ :
1pcs
Delivery Time :
15-18days
Weldingspeed :
20 - 60 times per minute
Brand Name :
Qijie
Power Source :
Electric
Payment Terms :
L/C, T/T
Powersupply :
380V, 50Hz, 3 Phase
Supply Ability :
15pcs
Productname :
Wire Mesh Machine
Certification :
sgs
Warranty :
1 Year
Price :
Discuss
Machinetype :
Automatic Wire Mesh knitting Machine
Place of Origin :
China
Description

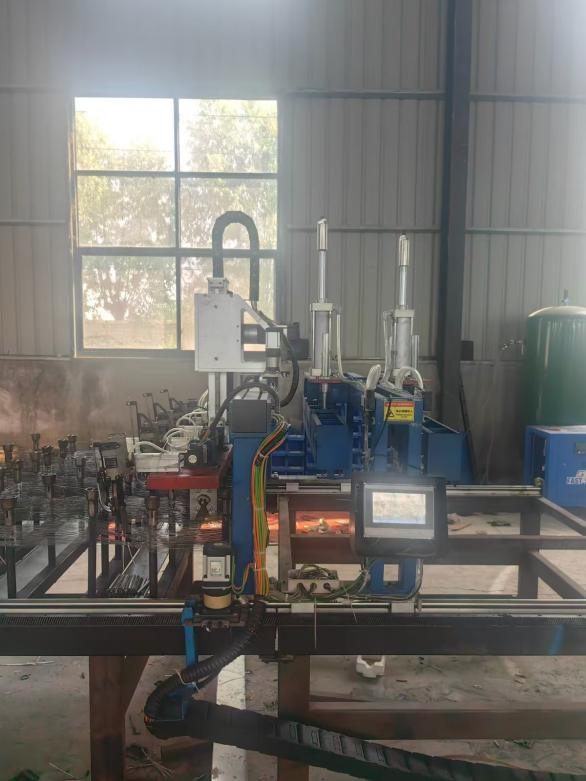

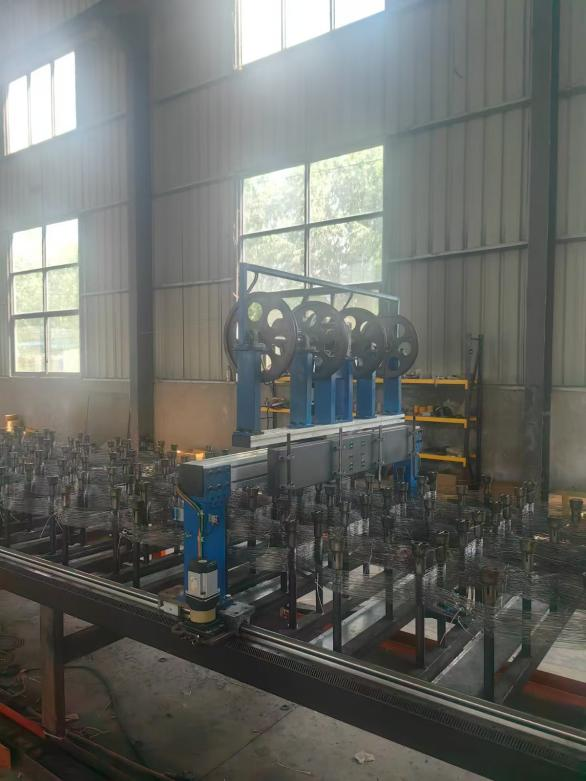

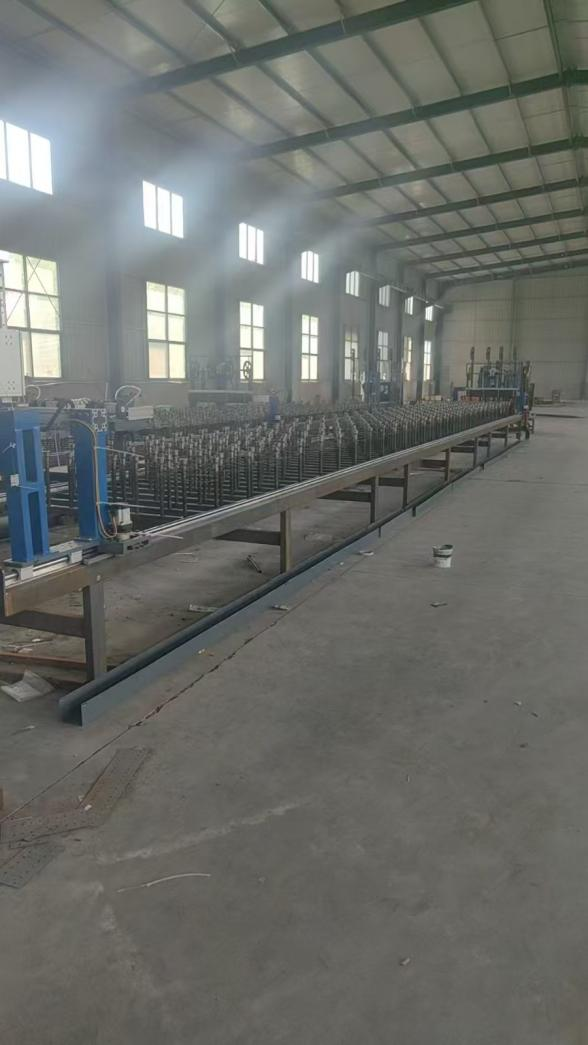

Automatic High Tensile Twisted Wire Mesh Production Line​

Automatic production line for manufacturing MZP wire barriers, complete with all necessary equipment for continuous production.
Required specifications:
• Wire diameter: 0.5 mm / 0.6 mm / 0.8 mm / 0.9 mm
• Production speed: not less than 20 meters per minute

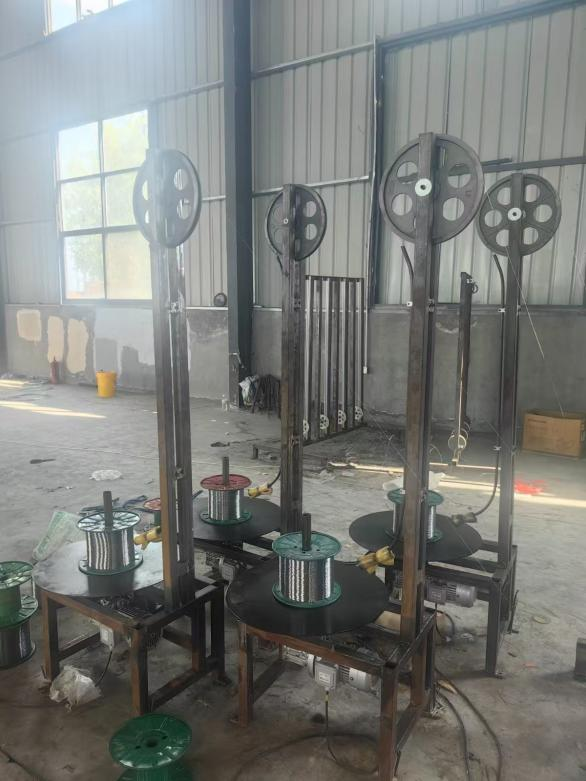

• Automatic wire feeding system
• Automatic winding/coiling system
• Maximum wire coil weight: up to 35 kg
• Installed power: not less than 2.1 kW
• Power supply: 380 V, 50 Hz (please specify if modification is required)
• PLC control with touch screen interface
• English operation software and user manual
• Complete set of tools and spare parts for commissioning

1 Automatic High Tensile Twisted Wire Mesh Production Line
2 WIRE DIAMETER 0.5mm 0.6mm 0.8mm 0.9mm
3 MESH WIDTH 10*10*1.1m

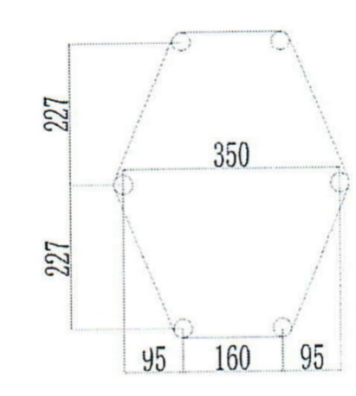

4 MESH HOLE SIZE

As per requirements in customer's picture

Automatic High Tensile Twisted Wire Mesh Production Line
5 WORKING SPEED 25m/min
6 MAIN MACHINE SIZE 17500*1700*1650MM
7

OVERALL WORKING DIMENSIONS

(INCLUDING WIRE UNCOILER)

 21000*3000*1650MM
8 MAIN MACHINE WEIGHT AROUND 4.5 TONS
9 POWER 220V,50HZ,Single Phase

Automatic High Tensile Twisted Wire Mesh Production Line

Automatic High Tensile Twisted Wire Mesh Production Line

Automatic High Tensile Twisted Wire Mesh Production Line

Automatic High Tensile Twisted Wire Mesh Production Line
