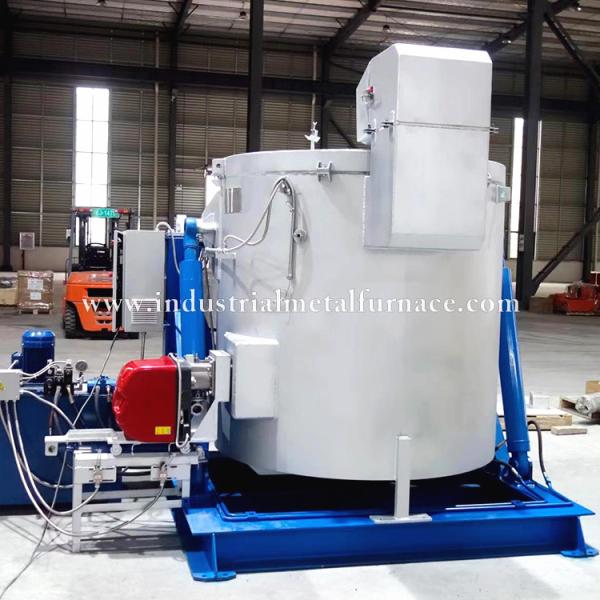

500kg Gas Fired Aluminum Melting Furnace with Riello Burner 720℃
500kg Gas Fired Aluminum Melting Furnace with Riello Burner 720℃
Specifications
Brand Name :
WONDERY
Model Number :
WDL-RGQ-500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
TO BE NEGOTIATED
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
500 SETS PER MONTH
Delivery Time :
60 WORKING DAYS
Packaging Details :
plywood case
Name of equipment :
gas fired melting furnace
Capacity :
500KG
Furnace type :
graphite crucible melting furnace
energy :
LPG, natural gas, propane
aluminum liquid temperature :
720℃
warranty :
12 months
Description

High-Efficiency 500kg Gas Fired Tilting Aluminum Melting Furnace -

Efficient 500kg Gas-Fired Tilting Aluminum Melting Furnace - Model WDL-RGQ-500

Our WDL-RGQ-500 Gas Fired Tilting Aluminum Melting Furnace delivers industrial-grade performance for melting aluminum and other low-melting-point alloys. Engineered for precision and reliability, it achieves a rated temperature of 850°C with superior energy efficiency and operational safety.

✅ Key Technical Specifications

Parameter Specification
Crucible Capacity 500 kg
Melting Rate ~250 kg/hour (continuous operation)
Fuel Type Natural Gas (8400 Kcal/Nm³)
Fuel Consumption 70-75 Nm³ per ton of aluminum
Rated Temperature 850°C
Wall Temperature < Ambient +50°C
Burner Type Riello (Auto Ignition & Flame Detection)
Crucible Brand Golden Elephant (6+ months service life)
Refractory Lining High-strength castable (5+ years life)
⚙️ Advanced Features

  • Riello Burner System: Fully automated with precision temperature control, auto-ignition, flame monitoring, and safety shut-off.

  • Hydraulic Tilting: Safe, smooth, and controlled pouring of molten metal.

  • Robust Construction: Furnace shell built with steel plates and sectional steel; lining made of high-compression (140MPa) refractory casting.

  • Safety Systems: Emergency outlet and leak alarm for crucible failure protection.

  • Thermal Efficiency: Multi-layer insulation with silicate aluminum fiber and lightweight bricks minimizes heat loss.

  • This furnace is an excellent solution for operations seeking to improve productivity and reduce melting costs with reliable, energy-efficient gas technology.
