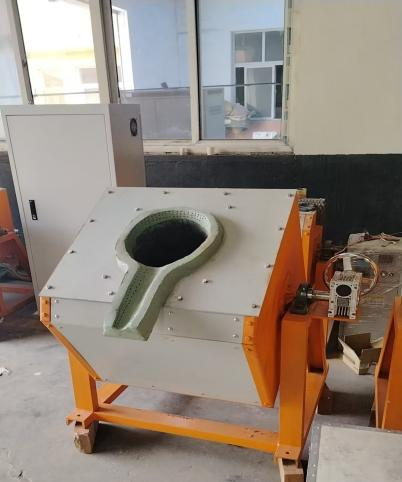

1000kg 300KW Aluminum IGBT Induction Melting Furnace

High-Efficiency Aluminum Melting Solution for Foundries and Casting Workshops

The WDL-DM-1000 Aluminum IGBT Induction Melting Furnace is a high-performance, energy-efficient melting system designed by WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. for professional aluminum processing applications. With a melting capacity of 1000 kg and a stable 300KW induction heating system, this furnace provides reliable and continuous operation for foundries, die-casting lines, and aluminum recycling plants.

Advanced IGBT Medium-Frequency Induction Technology

Equipped with a medium-frequency IGBT induction power supply, the system delivers fast melting, superior temperature control, and reduced energy loss.
Key features include:

• Output Power: 30–300KW

• Operating Frequency: 1–10kHz

• Input Voltage: 3×380V / 50Hz

• Transformer Capacity: 375KVA

• Power Factor: ≥0.95

This advanced induction design ensures a stable thermal field, uniform heating, and excellent melting efficiency. It is ideal for melting aluminum ingots, scrap aluminum, die-casting runners, and various aluminum alloys.

Durable Furnace Body with High-Quality Crucible

The hydraulic tilting furnace body is constructed with a robust steel-and-aluminum shell, providing strength and thermal stability during continuous operations.
Inside the furnace, a SIC graphite crucible offers:

• High thermal conductivity

• Strong resistance to oxidation

• Long service life in high-temperature environments

The standard melting temperature is 950°C, with a maximum operating temperature of 1200°C, suitable for a wide range of aluminum melting tasks.

Hydraulic Tilting System for Safe Metal Pouring

The WDL-DM-1000 adopts a fully integrated hydraulic tilting system, including pump unit, valves, gauge, and control interface. This system allows operators to tilt, stop, and reset the furnace smoothly, ensuring:

• Safe and accurate pouring

• Reduced labor intensity

• Lower operational risk

Both button and manual handle controls are available for operator preference and enhanced reliability.

Water-Cooled Power and Furnace Connections

A dedicated water-cooled cable system ensures safe and efficient power transmission between the induction power unit and the furnace body. The water cooling system improves electrical safety, extends coil lifespan, and maintains stable operating conditions.

Product Highlights

• Melting Capacity: 1000 kg

• Heating Method: IGBT medium-frequency induction

• Output Power: 300KW

• Crucible: Silicon carbide graphite crucible

• Tilting Method: Hydraulic tilting system

• Application: Aluminum melting and alloy preparation

• Recommended Industries: Foundries, die-casting workshops, aluminum recycling lines, manufacturing plants

The WDL-DM-1000 300KW Aluminum Induction Melting Furnace combines modern IGBT power technology with a durable furnace structure, offering a stable, efficient, and long-lasting melting solution. It is an ideal choice for workshops looking to upgrade to a higher-performance aluminum melting system with improved safety and energy efficiency.
