Specifications
Surge protection :
±6KV
Power Supply Pin :
1/2 (V+),3/6 (V-); 4/5 (V+),7/8 (V-)
Housing :
Din-rail/Wall mounting
Payment Terms :
T/T,PayPal
Certificaiton :
CE FCC ROHS compliance
Products Status :
Stock
Power input :
12 to 52v DC redundant power
Product Name :
2 port Optical Fiber Converter
Data Rate :
10/100Mbps
Brand Name :
Olycom
Model Number :
IM-MC110FE V1
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
MTBF :
≥100000 hours
Description

Mini 2 port 10/100mpbs Industrial fiber media converter

with 1RJ45+1SFP LC ethernet switch for outdoor use


Key Features of Industrial Fiber Media Converter


  • 1×10/100 Mbps auto-negotiation RJ45 port
  • 1×100 Mbps SFP fiber slot

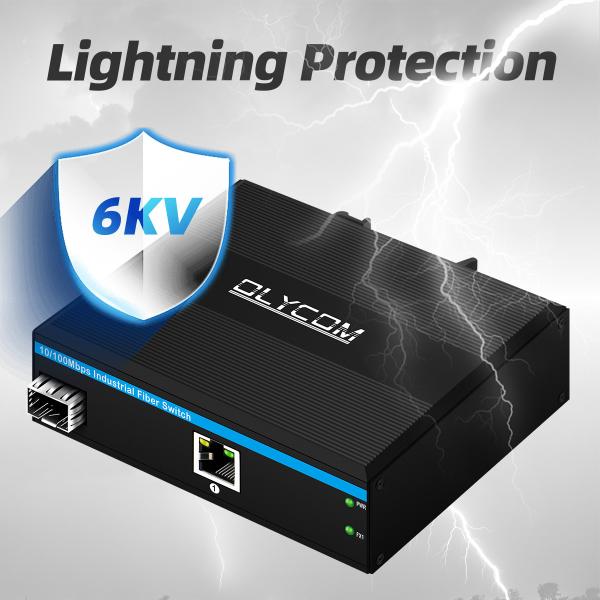

  • Built-in 6KV Ethernet surge protection, suitable for harsh outdoor deployment scenarios
  • Auto MDI/MDIX crossover detection supported
  • Flow control: IEEE 802.3x standard for full-duplex mode; backpressure mechanism for half-duplex mode
  • Compliant with IEEE 802.3 10Base‑T and IEEE 802.3u 100Base‑TX standards
  • Adopts store-and-forward switching architecture


Specification of Ethernet switch for outdoor use


Product Name 10/100Mbps Industrial Fiber Media Converter (1TP+1F)
Model No. IM-MC110FE
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage:DC 12-52V

No-load power:5W

Reverse connection:support
Environment

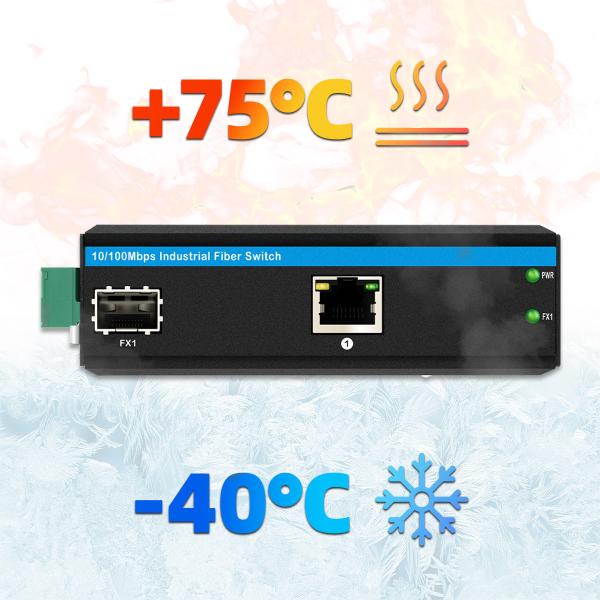

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4
Safety

CE Mark ,commercial

CE/LVD EN60950

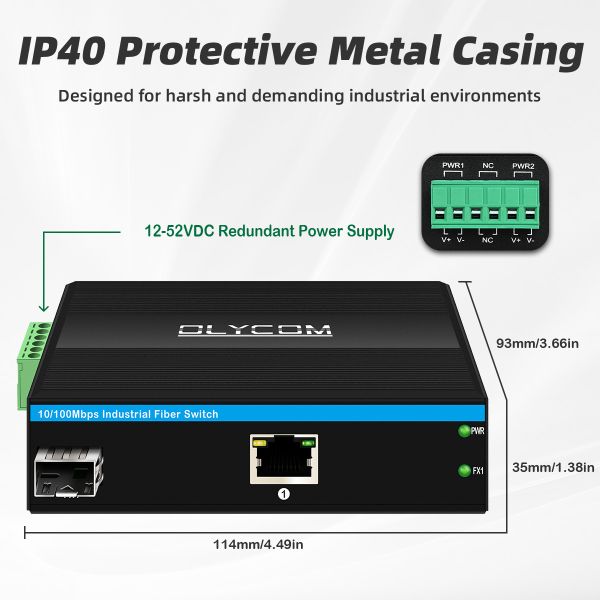

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension: 113.8 x 93 x 34.9mm

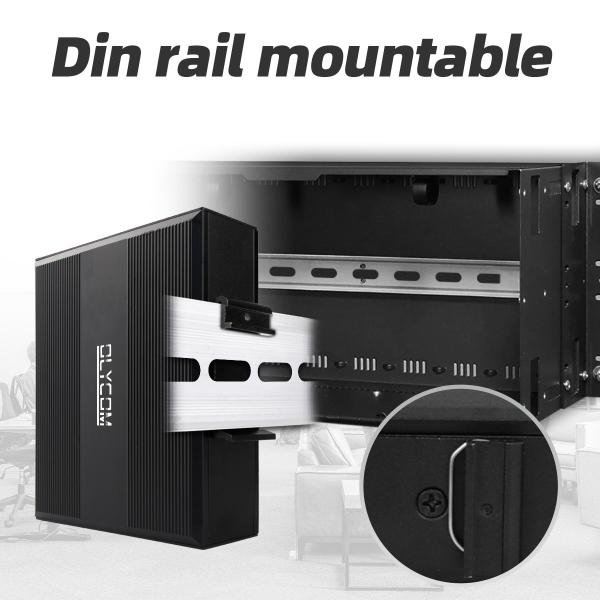

Mounting method:Din-rail mounting
Warranty 3 years



Application



Packing of unmanaged switch


PACKING LIST CONTENT QTY UNIT
2-port 10/100mpbs Industrial Fiber Media Converter 1 SET
User Manual 1 PC
Warranty Card 1 PC
Removable Terminal Block 1 PC
Note: Industrial Switch does not include the power supply and SFP module.



FAQ


1. What installation method does it support?

A: It supports Din Rail and wall mounting.

If a special mounting kit is required, it is OK, we dealt with it before.


2. Is it managed?

A: No, this series is unmanaged.

We have another managed series for your choice.


3. What is in the packing box?

A: there is a device, protective foam, user manual and warranty card.

For some models, there will be extra material like console cable or mounting hangers.


4. Can I have my logo on the device?

A: Yes, we are an OEM manufacturer.

Please just send your logo in PS/AI format, we will take care of the rest.


5. Can you help write the label content?

A: Yes,please let us know if you need to put your model name/logo/description on the label.

The standard language is English. If this is about some different languages like Korean, Italian or Russian, please just send the accurate format, we will copy and paste.
