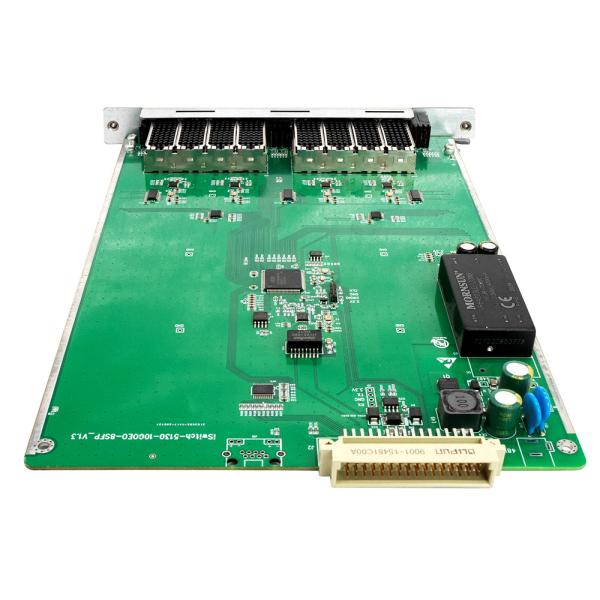

10G SFP+ to SFP+ DWDM OEO Transponder

Specification

Introduction

1. The 10G incoherent OEO service card supports four types of service access with 42M~11.3G rates.
2. Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 1.25 Gbit/s~11.3 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process.
3. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 11.3G or below.

Application

QC Framework (Optical Transmission Equipment)

1. Standards

Comply with ISO9001, CE, FCC, RoHS, IEC 61753, ITU-T G.694.1; meet industrial field networking and long-distance transmission specifications.

2. Process

Incoming inspection of optical fibers, connectors, transmission chips and lightning protection modules;

Production assembly and optical path coupling inspection;

Optical transmission index test, relay transmission verification, surge & ESD protection test;

Wide temperature cycle test, anti-interference test, long-time uninterrupted operation test;

Aging screening and full performance regression test before delivery.

3. Tests

Optical loss, dispersion tolerance, transmission distance, relay capability, ESD/lightning protection, -40~75℃ temperature adaptability.

4. Tools

Optical time-domain reflectometer (OTDR), fiber loss tester, ESD simulator, environmental test chamber.

5. System

Full optical path test records, serial number traceability, component and supplier quality archive.

6. Improvement

Transmission stability analysis, on-site fault simulation, lightning protection and anti-interference optimization.

FAQ

Are you a manufacturer?

Yes, we have our production line and R&D team.

Please visit us via below VR link to see our office and production area.

https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.

Can I visit your factory?

Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.

Please let us know if you have a plan.
