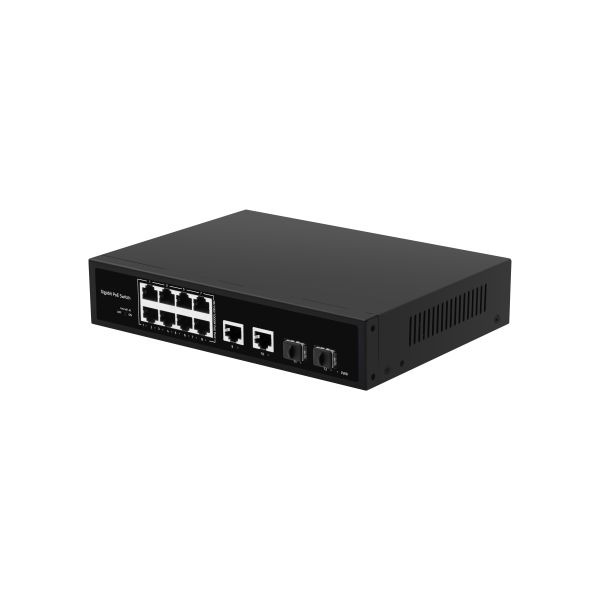

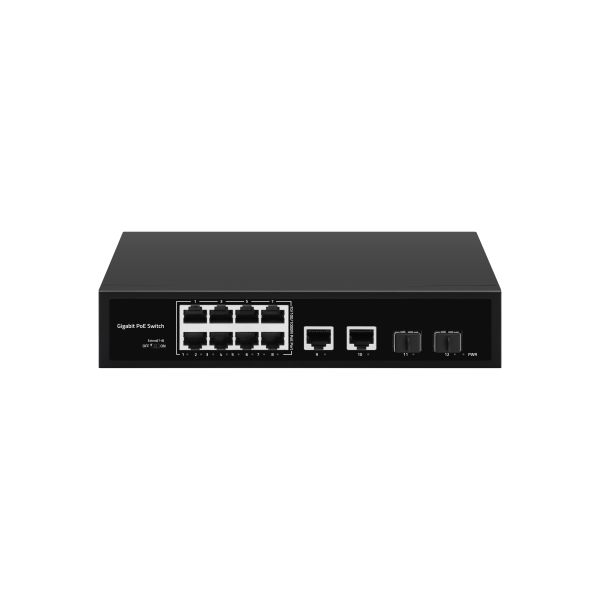

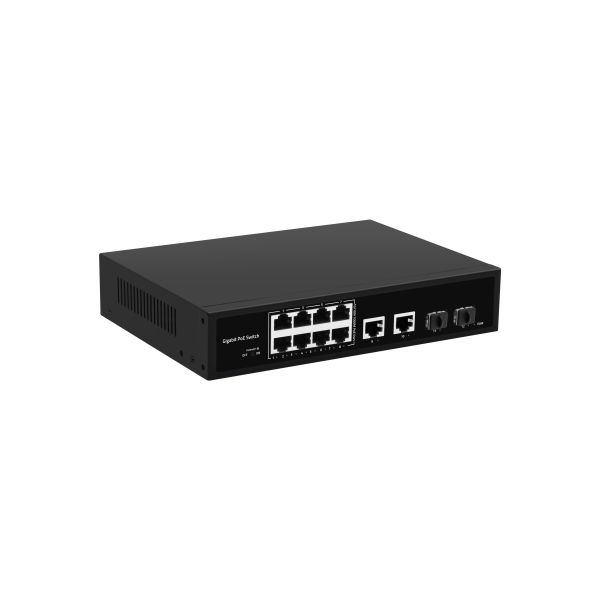

8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
Specifications
Brand Name :
Olycom
Model Number :
OM21008-PSE-GE
Certification :
CE FCC
Place of Origin :
Guangdong, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T,PayPal
Supply Ability :
3000pcs/month
Delivery Time :
4~8 working days
Packaging Details :
Netural Packing
Product name :
8 port poe switch
PoE Output Power :
15.4W/30W
Data Rate :
10/100/1000Mbps
Transfer Mode :
Store and forward
OEM :
Accept
Power :
AC100-240V50/60Hz
Bandwidth :
24Gbps
Description
Factory Price 8 Port PoE Switch with Fiber Network Connectivity
Professional 120W Power over Ethernet switch with PoE watchdog functionality, designed for business and industrial network applications.
Key Features
  • 8 Gigabit PoE Ports + 2 Gigabit Ethernet ports + 2 Gigabit SFP Ports
  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x standards
  • Ethernet Ports support 10/100/1000M auto-negotiation
  • AI mode automatically enables 10M speed for Ports 7-8 in Extend mode
  • PoE QoS Priority support with priority levels from 1 to 8 (enabled by default)
  • Flow control: IEEE 802.3X standard for full duplex, Back Pressure for half duplex
  • Zero configuration feature for automatic adaptive equipment supply
  • Panel indicators for status monitoring and failure analysis
  • DIP switch support for Default and Extend modes
8 Port 120W Gigabit POE Switch with POE Watchdog for Business Fiber Network
Technical Specifications
I/O Interface
Power AC100-240V 50/60Hz
Ethernet 8× Gigabit PoE Ports, 2× Gigabit Ethernet ports, 2× Gigabit SFP Ports
Chipset EN8850DH
Performance
Bandwidth 24Gbps
Packet Forward Rate 17.856Mpps
Package Cache 448Kbit
MAC Address 2K
Jumbo Frame 9216 bytes
Forwarding Mode Storage & forward
MTBF 100,000 Hours
Standards Compliance
Network Protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Standard IEEE802.3af (15.4W), IEEE802.3at (30W)
Network Medium 10Base-T: Cat 3,4,5 UTP/STP (≤100m), 100Base-TX: Cat 5 UTP/STP (≤100m), 1000Base-TX: Cat 5 UTP/STP (≤100m)
Optical Medium Multimode: 50/125, 62.5/125, 100/140μm; Single-mode: 8/125, 8.7/125, 9/125, 10/125μm
Environmental Specifications
Working Environment Temperature: -10°C to 50°C; Humidity: 10% to 90% non-condensing
Storage Environment Temperature: -40°C to 70°C; Humidity: 5% to 95% non-condensing
Function Indicators
Indicator PWR (Power), 1-12 Green Light (Link&Data)
PWR On: Powered on; Off: Powered off
1-10 Green Light (Link&Data) On: Link normal; Off: Link blocked; Flashing: Data transmitting
DIP Switch Default: Common mode, all interfaces communicate, transmission distance <100m, 10/100/1000M adaptive; AI mode disabled
Extend: Link extension mode, ports 7-8 force 10M, transmission distance 250M (enables PoE watchdog)
Physical Structure
Structure Size Product: 220×161×44.5mm; Package: 315×215×85mm; Net Weight: 0.92kg; Gross Weight: 1.22kg
Packing Info Carton: 445×445×335mm; Quantity: 10 PCS; Weight: 13.2KG
Power Voltage Input: AC 100-240V 50-60Hz; Supply: 52V / 2.3A 120W
Power Product: maximum 10W; PoE: maximum 110W
Packaging List Switch (1 pc), Power cord (1 pc), User manual (1 pc), Certification (1 pc)
Application Scenarios
  • Subway optical broadband networks: telecommunications, cable TV, network system integration
  • Special broadband networks: financial, government, oil, railways, electricity, public security, transportation, education sectors
  • Multimedia transmission: integrated transmission of image, voice and data for remote teaching, video conferencing, and video telephony
  • Real-time monitoring: synchronous transmission of control signals, images, and data
Manufacturing Process
  1. Welding: Solder necessary components onto PCB boards
  2. Cleaning: Remove dust and debris to prevent circuit dysfunction
  3. Assembling: Build product components including panels, screws, and PCB boards
  4. Testing: Verify basic functionality after assembly
  5. Aging: 24-48 hour stress test to ensure long-term reliability and check LED indicators, voltage stability
  6. Testing: Validate data and video signal processing, transmission rates, data packet integrity
  7. QC Testing: Final quality inspection before packaging according to customer specifications
After completing all manufacturing steps, products are packaged with appropriate labels and prepared for market distribution.
