Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Specifications
Brand Name :
Olycom
Model Number :
OM-FBS-22-SLC(AC+DC)
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T,PayPal
Supply Ability :
3000pcs/month
Delivery Time :
5~8 working days
Packaging Details :
1 piece in a carton, 0.8kg
Product name :
Optical Fiber bypass switch
Connector :
LC/SC
Fiber Type :
SM/MM
Mounting type :
Din rail, wall-mounted
Power input :
AC Input(100-240V) and Dual DC Input
Operating environment temperature :
-20 ° ~70 ° c
OEM :
Accept
Description
Fiber Optical Bypass Switch AC/DC Dual Power Input D2*2B LC SM/MM
The Fiber Optical Bypass Switch with AC/DC dual power input provides reliable optical path protection with low loss, high stability, and exceptional reliability for mission-critical fiber networks.
Product Introduction
  • Features low insertion loss, high stability, and superior reliability
  • Customizable optical switch modules for complex test system requirements
  • Enhances product testing efficiency and system uptime
  • Core component for optical communication system monitoring and protection
  • Compatible with high-density optical communication systems
Technical Specifications
Parameter Specification
Product Name D2*2B Bypass Switch
Power Interface Standard industrial terminal block
Polarity Protection Supported
Optical Fiber Interface LC/SC
Wavelength Range 850±40/1300±40nm; 1260~1650nm
Test Wavelength 850/1300nm; 1310/1550nm
Insert Loss Typ: 0.6 dB Max: 1.0 dB; Typ: 0.6dB Max: 1.0 dB
Return Loss MM≥30 dB SM≥50 dB
Channel Crosstalk MM≥35 dB SM≥55 dB
Polarization Loss ≤0.05 dB
Wavelength Loss ≤0.05 dB
Temperature Loss ≤0.05 dB
Repeatability ≤0.05 dB
Service Life ≥100,000,000 cycles
Switching Time ≤10 ms
Transmission Optical Power ≤500 mW
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Optical Fiber Bypass Connection Diagram
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Application Scenarios
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Primary Applications
  • Metropolitan Area Networks (MAN): Ensures uninterrupted backbone connectivity during equipment power failures or maintenance
  • Optical Communication System Monitoring: Enables real-time protection and rerouting of fiber paths in monitoring and protection systems
  • Laboratory R&D and Testing Platforms: Supports dynamic optical path switching for automated testing and high-efficiency test environments
  • Add/Drop Multiplexing & Dynamic Optical Configuration: Ideal for systems requiring frequent optical path changes without physical rewiring
  • High-Density Fiber Systems: Suitable for telecom, data centers, utilities, and industrial networks with strict uptime requirements

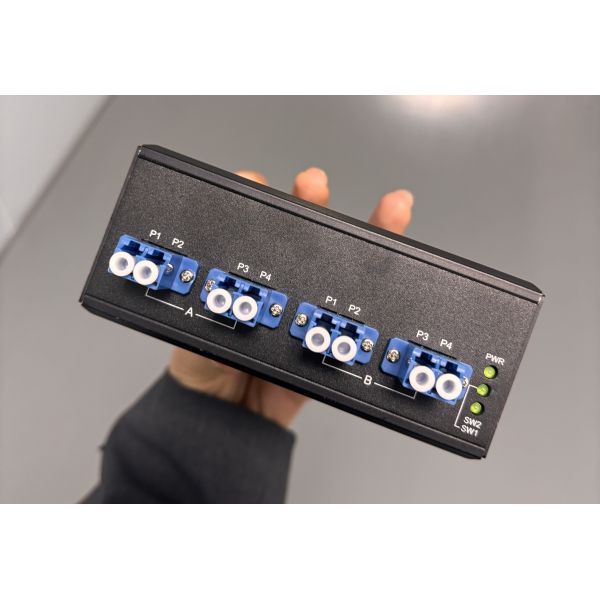

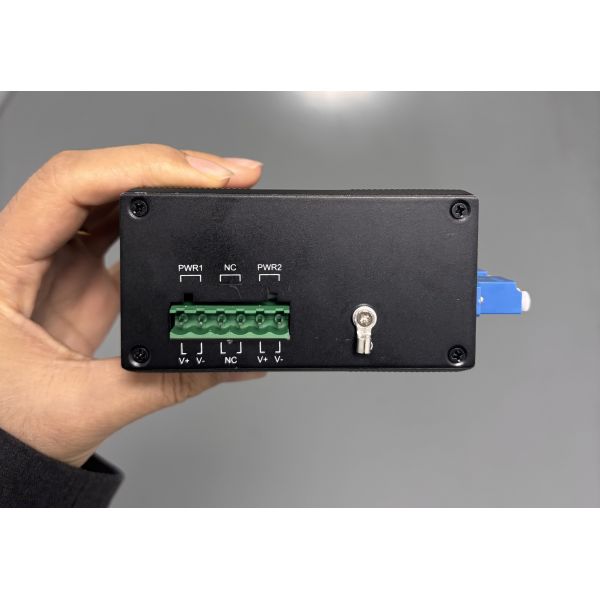

Product Images
Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability Fiber Optical Bypass Switch with AC/DC Dual Power Input LC/SC Connector and SM/MM Fiber Type for High Reliability
Frequently Asked Questions
Q: What's the function of this bypass fiber switch?
A: This product protects fiber paths. If the protected fiber switch loses power, the optical path automatically bypasses the failed switch and directly connects to the next fiber switch, ensuring network continuity when individual switches are powered off.
Q: Does it include the power supply?
A: No, power adapter is not included and must be purchased separately. The input voltage range is 12V-52VDC.
Q: What temperature range can this device handle?
A: Operating temperature range is -20°C to 70°C (-4°F to 158°F).
Q: Does it come with a small din rail?
A: The switch supports 35mm DIN rail mounting, but the DIN rail itself is not included.
Q: Is it a managed product?
A: No, this is an unmanaged product designed for automatic optical path protection.
Package Contents
  • 1x Bypass Mechanical Optical Switch
  • 1x User Manual
  • Removable Terminal Block
