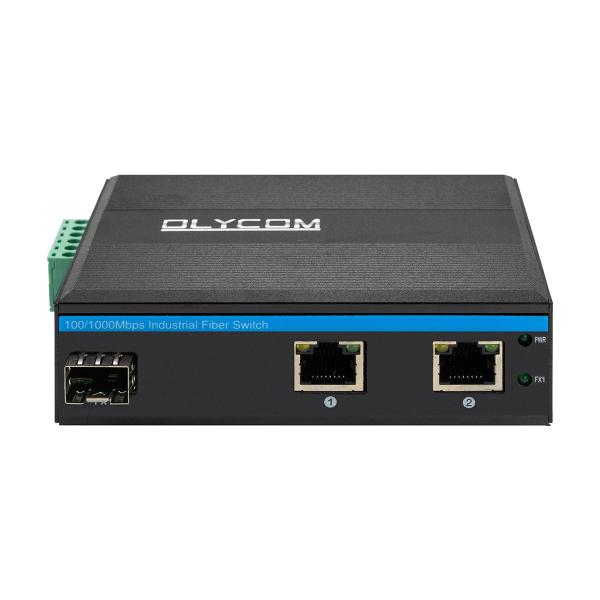

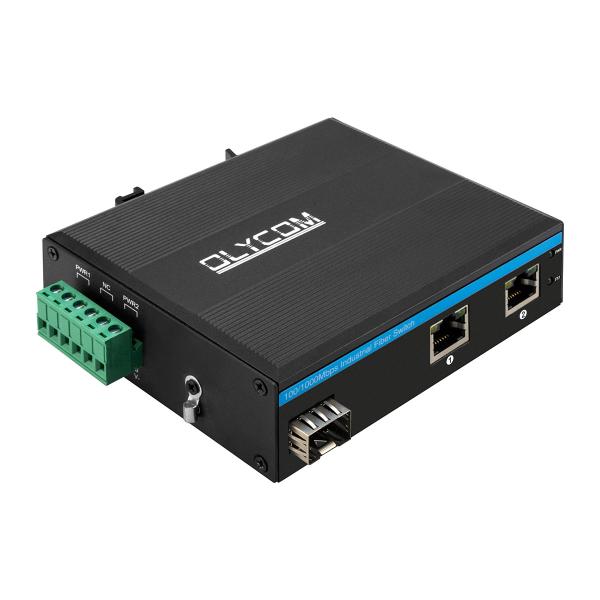

Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
Specifications
Brand Name :
OLYCOM
Model Number :
IM-FP122GE
Certification :
CE、RoHS、FCC
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
One unit device and one user manual are inside one box , sealed and well protected.
Name :
2 Port Industrial PoE Ethernet Switch
Fiber :
1*100M/1G SFP Fiber
Copper :
2*10/100/1000M RJ45/PoE
PoE Standard :
802.3af/802.3at
Input Voltage :
DC48-52V
PoE Budget :
30W/60W
Customization :
Support
Chip :
Realtek
Description

Olycom Gigabit 15.4W 30W PoE Rugged Network Switch


Introduction of Industrial Ethernet Switch

IM-FP122GE series is the 10/100/1000 Mbps industrial PoE fiber switch featuing

  • Compliance with IEEE802.3af/at
  • Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
  • 1x100/1000Mbps auto-sensing SFP fiber ports
  • 2x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 2 ports
  • Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • DIN rail or Wall installation
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • Operating environment temperature: -40°C～75°C

The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of Industrial Fiber Switch

Product Name Gigabit Unmanaged Industrial PoE Fiber Switch(1F+2TP)
Model No. IM-FP122GE
Port

1x100/1000M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

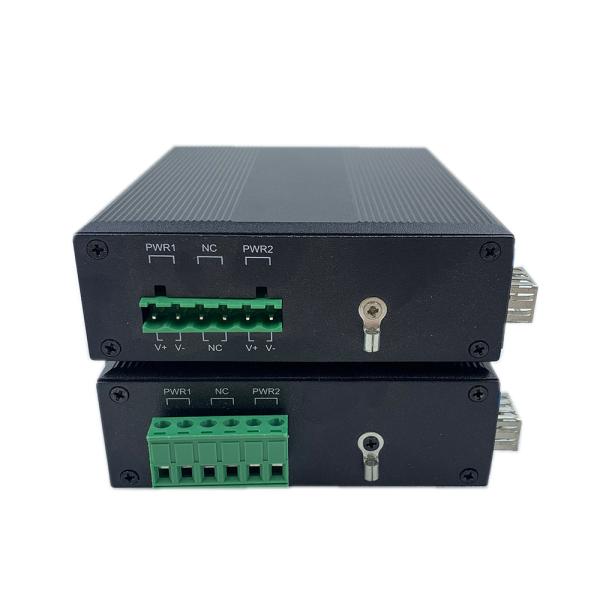

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 6Gbps (non-traffic jam)

Forwarding rate: 8.928Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power

Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)

Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device

Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps

About PoE

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V

Reverse connection: support

Power Consumption: Full loading without PoE≤5W

PoE Wiring: 1/2 (V+), 3/6 (V-)

Industry Standards
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV


Certification
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014

Packing List

  • 1pc switch
  • 1pc user manual

Remark

Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us

Shipping box information

Product size: 11.4*9.3*3.5cm

Inner box size: 23*16.5*5.8cm

Product weight: 0.35Kg

Packing weight: 0.45Kg

Master box size: 67*33*47cm

Packing quantity: 40Pcs

Packing weight: 20Kg

Industrial Optical Module
OSPL1E06D-85 100BASE-FX(850nm)
OSPL1E06D 100BASE-FX
OSPL1E20D 100BASE-LX
OSPL1E40D 100BASE-EX
OSBL1E20D-35 100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53 100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX(1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V1.6A AC220V to DC48V1.6A, -30℃～70℃
IM-DAC220/DC48V2.5A AC220V to DC48V2.5A, -40℃～70℃

Application of CCTV PoE Switch

Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail

Industrial Unmanaged POE Switch 2 Port Gigabit SFP Fiber Network IP40 Fanless DIN Rail
