RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
Specifications
Brand Name :
Olycom
Model Number :
OM2101-RS232-S05-SC V1
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
2000 pairs/month
Delivery Time :
3~7 working days
Packaging Details :
1 pair in a carton, 1kg gross weight
Product name :
Industrial Multimode Serial Fiber Converter
Wavelength :
850nm
Distance :
500 meters
Dimension :
110*104*28mm
Rate :
0-120Kbps
Optical port :
SC, FC/ST optional
Description

Multimode RS232 Serial Fiber Media Converter

Key Features of serial fiber converter

  • Plug-and-play, hot pluggable
  • Extends RS232 transmission up to 2Km on MMF, 80Km on SMF
  • Industrial Wall Mount Compact size rugged case
  • Protects against electrical interference and chemical corrosion
  • Built-in surge and static protection
  • Diagnostic and unit indicator LEDs
  • Wide temperature range
Specification of multimode serial converter
Standard EIA /TIA RS232, RS-422, RS-485
Fiber Connector SC standard, ST/FC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate 0-120Kbps
Baud Rate 300 Baud to 115,200 Baud
RS-485 D+, D-, GND
RS-422 R+, R-, T+, T-, GND
RS-232 IN, OUT, GND
Power rate 2W, 5-40V
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 110mm*104mm*28mm
Weight 0.3kg/pcs

Packing Box of RS232 fiber modem

RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted

RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted

Ordering Details

OM2101-RS232-M2-SC

RS232 serial to fiber converter, DB9-RS232, MM, dual fiber, 2Km, SC
OM2101-RS232-S20-SC

RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 20Km, SC
OM2101-RS232-S40-SC

RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 40Km, SC
OM2101-RS232-S60-SC

RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 60Km, SC
OM2101-RS232-S80-SC

RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 80Km, SC
OM2101-RS485/RS422-M2-SC

RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
OM2101-RS485/RS422-S20-SC

RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
OM2101-RS232/RS485/RS422-M2-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
OM2101-RS232/RS485/RS422-S20-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
OM2101-RS232/RS485/RS422-S40-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
OM2101-FV24-M2-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
OM2101-FV24 -S20-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
OM2101-FV24-S40-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
OM2101-FV24-S60-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 60Km, SC
OM2101-FV24-S80-SC

RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 80Km, SC

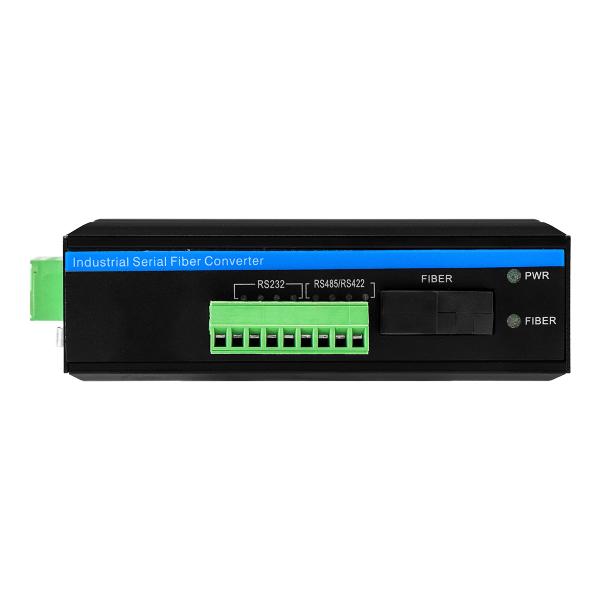

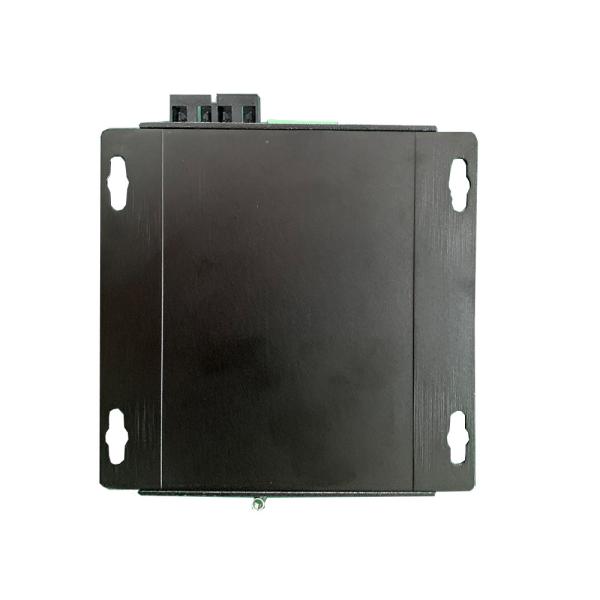

Detailed Photos

RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted

RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted

Our Advantages

  1. Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
  2. Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.

FAQ

1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.

2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.

3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.

RS232 Serial Converter Multimode Fiber Optic 850nm Duplex SC Port Wall Mounted
