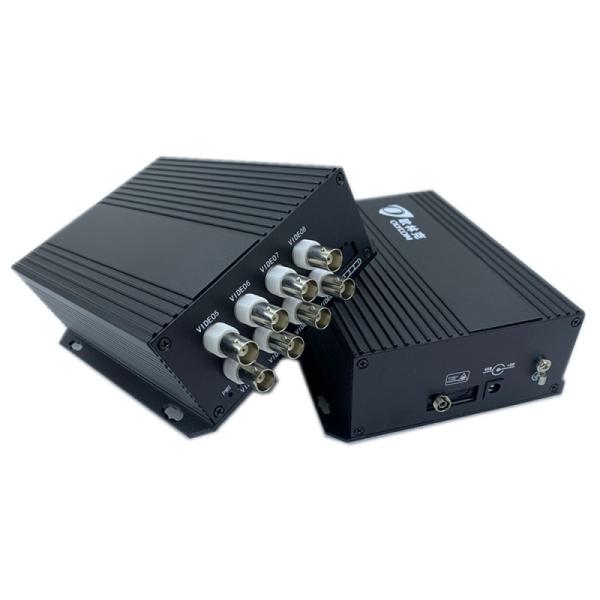

8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
Specifications
Product Name :
8ch Optical Video Converter
Interface :
FC standard, ST/SC optional
Transmission Distance :
2KM-120KM
Certificaiton :
CE FCC ROHS compliance
Dimension-standalone :
179mm×130.5mm×50mm
Wavelength :
1310nm/1550nm
Brand Name :
Olycom
Model Number :
OM610-8V↑WT/R
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T,PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
1pc in a box
Description
8-Channel 1080p AHD CVI TVI 20km BNC Extender Fiber Optical HD Video Converter
The OM610-8V↑WT/R optical video transmitter and receiver system transmits 8 channels of video signals over optical fiber. This advanced solution supports transmission distances up to 20km on single-mode fiber and 1km on multimode fiber.
Key Features
  • Robust metal casing for industrial durability
  • Advanced lightning-proof protection system
  • Low optical link loss - maximum 30dB
  • EMI, RFI, and ground loop interference elimination
  • Bi-directional transmission on single fiber using WDM technology
  • Hot plug-and-play capability with switch power supply
  • Available in standalone and 3U rack mount configurations
Technical Specifications
Optical Specifications
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic Fiber Compatibility Single mode (9/125um) 20Km, multimode (50/125um) 1Km, (62.5/125um) 500m
Receiving Sensitivity -30dBm
Interface FC standard, ST/SC optional
Video Specifications
Channel Quantity 8 channels (camera to control center)
Compatible Systems NTSC/PAL/SECAM
Impedance/Voltage BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain < ±1%
Differential Phase < ±1
S/N Ratio >60dB (weighting, 8 bit)
Interface BNC
Electrical, Environmental & Mechanical
Operating Voltage DC 5V1A
Operating Temperature -20℃ to +70℃
Storage Temperature -45℃ to +85℃
Humidity 0~95% non-condensing
Dimension (Standalone) 179mm × 130.5mm × 50mm
Weight 0.66kg/piece (Net), 1.00kg/piece (Gross)
Applications
  • Expressway security protection and toll station systems
  • City traffic monitoring systems
  • Building and campus monitoring systems
  • Industrial monitoring (airports, chemical plants, railways)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil fields, TV station program broadcasting
  • Stadium and gymnasium live video transmission
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
Packaging
8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring 8ch Port 1080p HD Video Digital Optical Converter with 20km Transmission for Industrial Monitoring
Frequently Asked Questions
Q: Can I place a sample order for the video fiber converter?
A: Yes, we welcome sample orders for quality testing and verification. Mixed samples are acceptable.
Q: What is the lead time for orders?
A: Sample preparation takes 3-5 days, while mass production requires 8-10 working days.
Q: Is there a minimum order quantity for optical fiber switches?
A: We offer low MOQ requirements, with single unit samples available for evaluation.
Q: How do you ship products and what is the delivery time?
A: We ship via DHL, UPS, FedEx, or TNT with 3-5 day delivery. Air and sea freight options are also available.
Q: What is your quality control and defective rate?
A: Our products undergo strict quality control with a defective rate of less than 0.2%.
