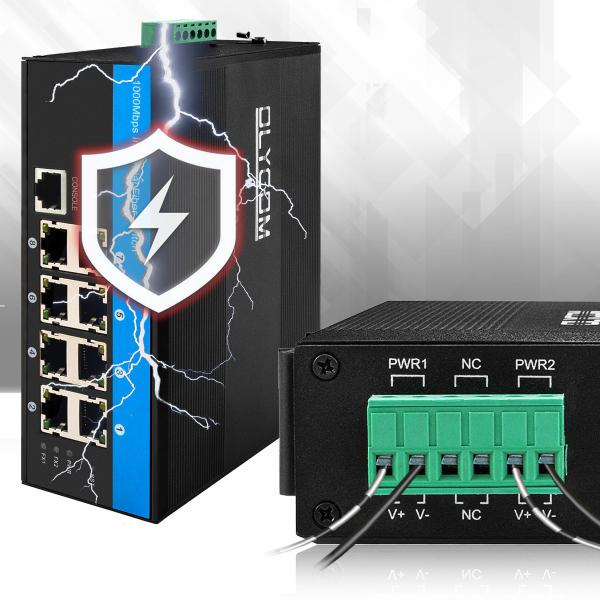

8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
Specifications
Certification :
CE ISO9001 RoHS FCC
PoE protocol :
802.3af/802.3at
Fiber Speed :
100M/1G/2.5G
Dimension :
158*115*60mm
Mounting :
Din rail/Wall/Desktop
Copper Speed :
10/100/1000Mbps
Product name :
8 port industrial PoE managed switch
Weight :
750g net weight
Brand Name :
Olycom
Model Number :
IM-WP088GW
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
2500pcs/month
Delivery Time :
4~7 working days
Packaging Details :
1pc in a box, 0.9kg gross weight
Description
8 Port 15.4W/30W PoE Managed Switch
Key Features of 8 port PoE switch
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40 ° ~75 °C
Specification of industrial managed switch
Product Name 10/100/1000Mbps Managed Industrial Ethernet Switch
Port

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth:16Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W

PoE output voltage: 48V
Environment

Working temperature: -40°～ 75°C

Storage temperature: -40°～ 85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail/Wall mounting
Warranty Replacement within 1year; 3 years repairing

Management Features

  1. Support cable diagnosis and can locate the fault point
  2. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  3. Support Qos, transport classification Qos, Cos, bandwidth control(input/output direction), storm suppression ,differentiated services
  4. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  5. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  6. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  7. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP

​

8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE

FAQ

How can I install the device?

A: Each model in this series supports DIN35/Wall mounting.

It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.

Is it possible to print my logo?

A: Yes, it is usually on the top panel of the device.

How can I get a sample unit for testing?

A: We have many Amazon stores. Please search our brand Olycom or the model names if you know.

You are also welcome to talk with us for a standard purchase.

Application of 8 port managed switch

8-Port Managed PoE Switch Gigabit Network 240W Active PoE Rugged Case Vitesse Chipset CE
