Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE
Specifications
POE budget :
120W
Uplink :
Gigabit Lan Ethernet
Brand Name :
Olycom
Certification :
ISO9001 CE RoHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, PayPal
Supply Ability :
500pcs/week
Delivery Time :
4~7 working days
Packaging Details :
1pc in a carton, 0.45kg G.W
POE standard :
15.4W/30W
Size :
11.4*9.3*3.5cm
Model Number :
IM-WP054GE
Product name :
5 port gigabit network switch
Voltage :
DC48V
Description

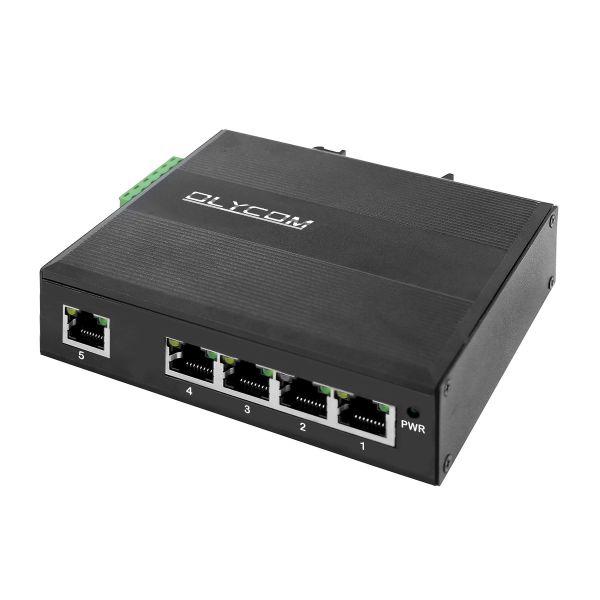

5-Port Din Gigabit PoE PSE Network Switch
Introduction to Gigabit POE Switch

  • Rugged metal housing
  • Plug and play: Simple setup, without additional software or configuration
  • Support desktop use, din rail or wall mounting
  • 5 x 10/100/1000Mbps Auto-sensing RJ45 ports

  • UTP port is auto-sensing with Auto MDI/MDI-X and supports 802.3af 802.3at POE

  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • Detect the PoE models of electrical devices
  • A store-and-forward switching mechanism

Specification of Rugged Ethernet Switch

Product Name 10/100/1000Mbps Industrial POE Ethernet Switch(5TP)
Port 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth: 10Gbps(non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 114*93*35mm

Mounting method: Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing

Application of 5 port POE switch

Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE

Dimension of Industrial network switch

Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE

Hardened 5 Port E-Mark Verified Ethernet Switch Gigabit Network Hub Unmanaged 120W PoE CE

Our Advantages

  • Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
  • Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
  • In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
  • Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.

About OLYCOM

Company Overview

Founded in 2003, OLYCOM is a global provider of fiber optic and networking solutions, serving customers in 120+ countries. With ISO9001-certified manufacturing and strong R&D capabilities, the company delivers reliable, cost-effective connectivity solutions for modern networks.

Core Products

Industrial Ethernet switches, DWDM systems, PoE switches, media converters, and SFP modules (1G–400G), covering enterprise, telecom, and industrial applications.

Key Features

Rugged industrial design, wide power input, advanced L2 features (VLAN, QoS, ERPS), high-capacity DWDM transmission (up to 96 channels), and full PoE standards support.

Global Reach

Strong partnerships with distributors, system integrators, and enterprises across North America, Europe, Southeast Asia, and the Middle East.

Why OLYCOM

Continuous R&D investment, strict quality control (CE, FCC, RoHS), flexible OEM/ODM services, and balanced cost-performance solutions.

Applications

Telecom, surveillance, data centers, industrial automation, and smart city infrastructure.

Vision & Mission

To deliver reliable, scalable, and efficient networking solutions that support global digital connectivity.

FAQ

1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.

2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.

3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.

4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.

5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
