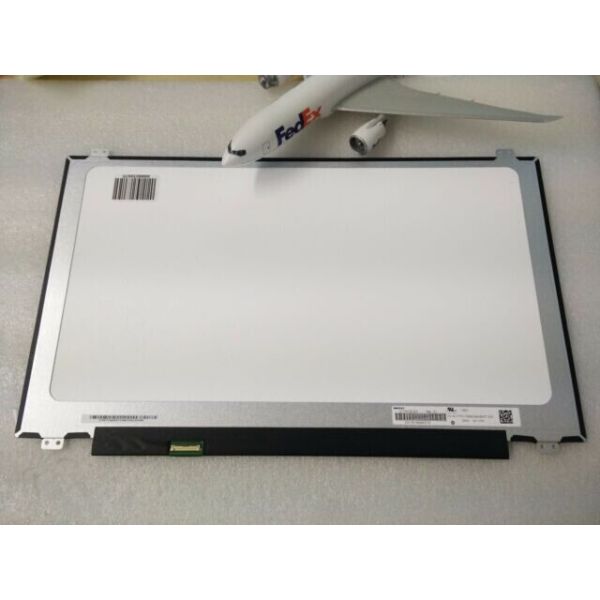

1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
Specifications
Brand Name :
Innolux
Model Number :
N173HCE-E31
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1
Price :
50
Payment Terms :
TT / Escrow 10(we pay hkinventory escrow fee) / Paypal / WesternUnion
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Size :
17.3 Inch
Resolution :
1920×1080
Luminance :
300 cd/m² (Typ.)
Contrast Ratio :
700:1 (Typ.) (TM)
View Direction :
Symmetry
Response Time :
14/11 (Typ.)(Tr/Td)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Operating Mode :
AAS, Normally Black, Transmissive
Interface Type :
30 pins eDP (2 Lanes) , Connector
Designed For :
Laptop
Description

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N173HCE-E31 is a 17.3” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins eDP interface. This module supports 1920 x 1080 FHD model and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.

1.2GENERAL SPECIFICATI0NS

ItemSpecificationUnitNote
Screen Size17.3” diagonal
Driver Elementa-si TFT active matrix--
Pixel Number1920 x R.G.B. x 1080pixel-
Pixel Pitch0.1989 (H) x 0.1989 (V)mm-
Pixel ArrangementRGB vertical stripe--
Display Colors262,144color-
Transmissive ModeNormally black--
Surface TreatmentHard coating (3H), High resolution Adaptable AG--
Luminance, White300Cd/m2
Power ConsumptionTotal TBD W (Max.) @ cell TBD W (Max.), BL TBD W (Max.)


1.3LED CONVERTER SPECIFICATION

Parameter

Symbol

Value

Unit

Note

Min.Typ.Max.
Converter Input Power Supply VoltageLED_Vccs(6.0)(12.0)(21.0)V
Converter Inrush CurrentILEDRUSH--1.5A(1)

LED_EN Control Level

Backlight On (2.2)-(5.0)V(4)
Backlight Off0-(0.6)V(4)
LED_EN ImpedanceRLED_EN30K--ohm(4)

PWM Control Level

PWM High Level (2.2)-5V(4)
PWM Low Level0-(0.6)V(4)
PWM ImpedanceRPWM30K--ohm(4)
PWM Control Duty Ratio (5)-100%

PWM Control Permissive Ripple

Voltage

VPW M_pp--100mV
PWM Control FrequencyfPWM(190)-(2K)Hz(2)
LED Power CurrentLED_VCCS =Typ.ILED(TBD)(TBD)(TBD)mA(3)

2.1STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may damage LCD module when it is operating.

It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the response time will become slowly, and the starting voltage of LED will be higher than the room temperature.

2.2OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This can prevent the CMOS LSI chips from damage during latch-up.

The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while assembling with converter. Do not disassemble the module or insert anything into the Backlight unit

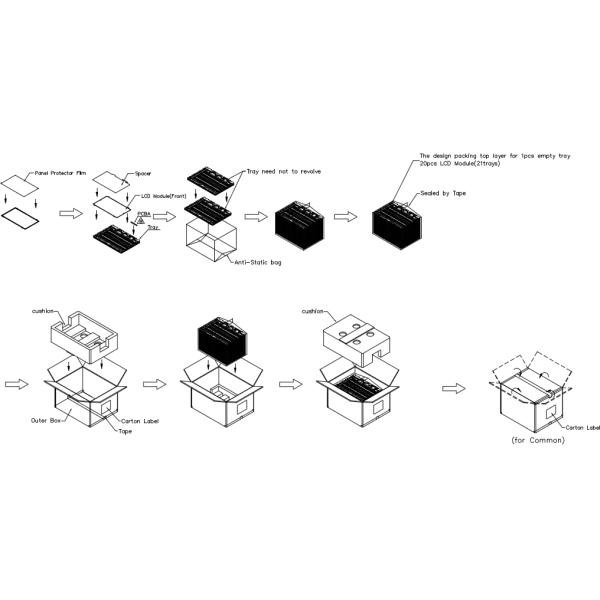

3. CARTON
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop
