Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
Specifications
Brand Name :
Samsung
Model Number :
LTM200KT10
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Series :
LTM200KT
Keywords Desc. :
Samsung 20.0" TN LCM 1600×900 250nits WLED LVDS 30pins
Product Class :
Graphic LCD Display
Product Tags :
Color TFT-LCD,Transmissive LCD
Application :
Desktop Monitor
Panel Type :
a-Si TFT-LCD
Panel Composition :
LCM
Panel Size :
20.0"
Resolution :
1600×900
Aspect Ratio :
16:9 (W:H)
Form Factor :
Flat Rectangle Display
Orientation :
Landscape type
Active Area :
442.8 (W) × 249.075 (H) mm (A.A)
Viewing Area :
446.8 (W) × 253.2 (H) mm (V.A)
Outline Dimension :
462.8 (W) × 272 (H) mm
Max. Depth :
10.3 mm
Weight :
1.70Kgs (Max.)
LC Family :
TN
Polarizer :
Transmissive
Brightness :
250 (Typ.)
Description

Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins

LTM200KT10 General Features

Panel Brand : SAMSUNG
Panel Model : LTM200KT10
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 20.0 inch
Resolution : 1600(RGB)×900 , HD+
Display Mode : TN, Normally White, Transmissive
Active Area : 442.8×249.075 mm
Outline : 462.8×272×10.3 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m2 (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 8S3P WLED
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920
AMS510CV01 Samsung 5.1" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

SAMSUNG LTM200KT10 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m2 (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N

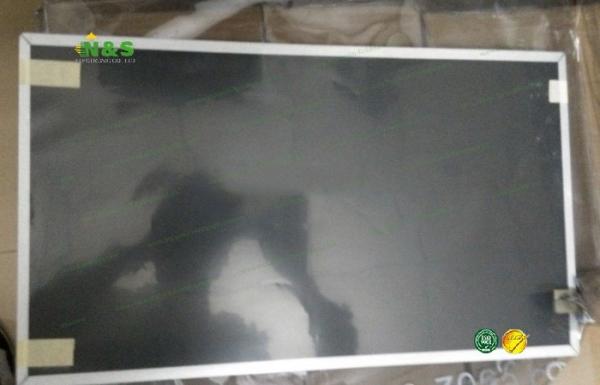

LTM200KT10 Picture
