PVI PD057VU1 LCD Displays 5.7 inch Normally White with 144×104.6×13.3 mm Outline
PVI PD057VU1 LCD Displays 5.7 inch Normally White with 144×104.6×13.3 mm Outline
Specifications
Brand Name :
PVI
Model Number :
PD057VU1
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
5.7 inch
Resolution :
320(RGB)×240 , QVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
115.2×86.4 mm
Outline :
144×104.6×13.3 mm
Description

PVI PD057VU1 LCD Displays 5.7 inch Normally White with 144×104.6×13.3 mm Outline

PD057VU1 Quick Details:

Panel Brand : PVI
Panel Model : PD057VU1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.6×13.3 mm
Surface : Antiglare
Brightness : 500 cd/m2 (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL
Signal Interface : TTL (1 ch, 6-bit) , 33 pins

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

PVI PD057VU1 Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 202±10g
Surface : Antiglare
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 117.2×88.4 mm (H×V)
Outline Dimension : 144×104.6 mm (H×V)
Outline Depth : 13.0±0.3 mm
Holes & Brackets : Rear mounting holes (4-Ф2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
EK014BS012 PDI 1.44" 128×96
EK014BS011 PDI 1.44" 128×96
EG020BS012 PDI 2.0" 200×96
EG020BS011 PDI 2.0" 200×96
EG020AS013 PDI 2.0" 200×96
EG020AS012 PDI 2.0" 200×96
EM027BS014 PDI 2.7" 264×176
EM027BS013 PDI 2.7" 264×176
EM027AS013 PDI 2.7" 264×176

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

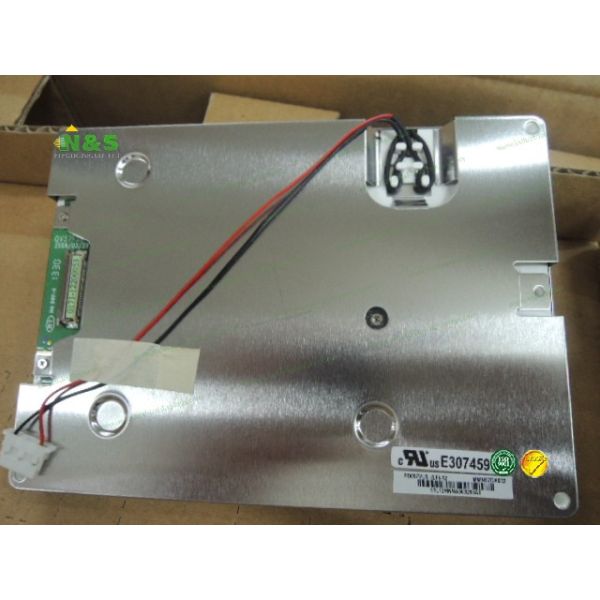

PD057VU1 Picture
