Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
Specifications
Brand Name :
CMO
Model Number :
G150X1-L01
Certification :
ISO9001
Place of Origin :
Japan,Korea,Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Panel Model :
G150X1-L01
Panel Type :
a-Si TFT-LCD , Panel
Weight :
1.10Kgs (Max.)
Outline Depth :
13.85±0.5 mm
Surface :
Antiglare (Haze 25%), Hard coating (3H)
Brightness :
450 cd/m² (Typ.)
Description

15'' Twin Light Lamp Industrial LCD Displays , High Brightness LCD Panel G150X1-L01

Our Advantage:

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service:

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

Technical Specifications

Operating Temperature :

-30 ~ 70 °C

Storage Temperature :

-40 ~ 80 °C

Dot Resolution :

1024(RGB)×768 (XGA)

Pixel Density :

85 PPI

Aspect Ratio :

4:3 (H:V)

Dot Pitch :

0.099×0.297 mm (H×V)

Pixel Pitch :

0.297×0.297 mm (H×V)

Weight :

1.10Kgs (Max.)

Active Area :

304.128×228.096 mm (H×V)

Bezel Area :

307.4×231.3 mm (H×V)

Outline Dimension :

326.5×253.5 mm (H×V)

Outline Depth :

13.85±0.5 mm

Brightness :

450 cd/m² (Typ.)

Contrast Ratio :

700 : 1 (Typ.) (Transmissive)

Display Color :

16.2M (6-bit + FRC)

Response Time :

8/17 (Typ.)(Tr/Td)

Viewing Angle :

80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

White Variation :

1.25/1.40 (Typ./Max.)(9 points)

Vertical Frequency :

60Hz

CMO G150X1-L01 Backlight System

Lamp Position

Edge light type (Top and Bottom)

Lamp Type

CCFL

Lamp Amount

2 pcs

Lamp Shape

Straight

Lamp Life Time

50K(Min.) (Hours)

Lamp Voltage

520/580/638V (Min./Typ./Max.)

Lamp Current

2.0/8.0/8.5mA (Min./Typ./Max.)

Lamp Operating Frequency

40/80KHz (Min./Max.)

Lamps Power Consumption

9.28W (Typ.)

Interface Type

Connector

Backlight Interface

Brand

 Model Pin Pitch Pins Amount Configuration

JST

 BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL

Lamp Driver Board

No

Primary Competitive Advantages:

  • Price
  • Product Features
  • Product Performance
  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • Brand-name Parts
  • Country of Origin
  • Distributorships Offered
  • Electronic Link
  • Experienced Staff
  • Form A
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Military Specifications
  • Packaging

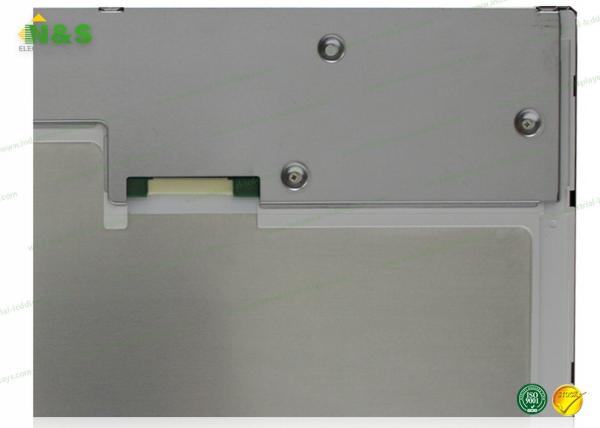

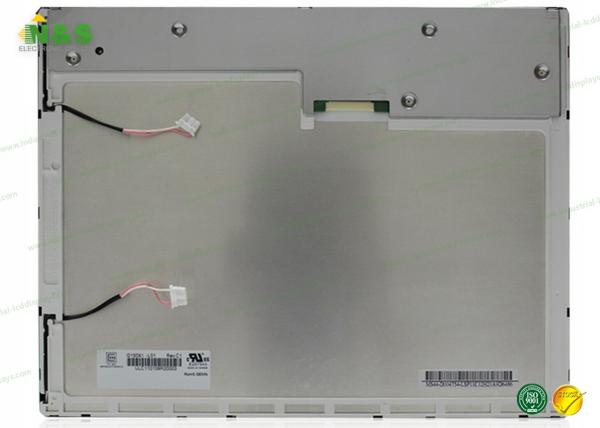

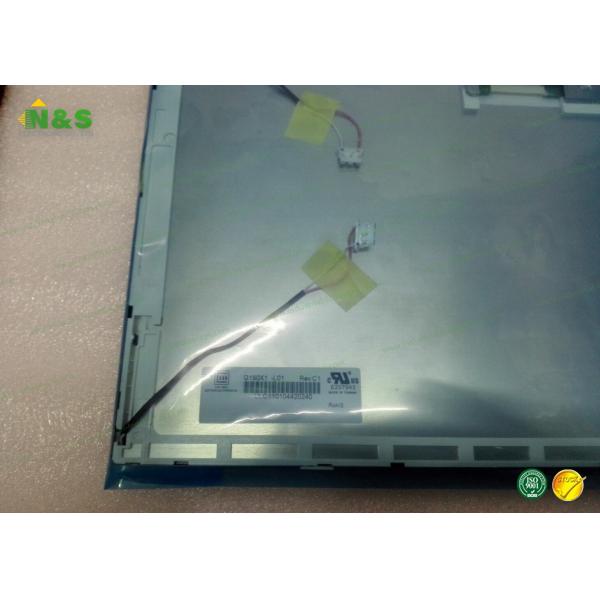

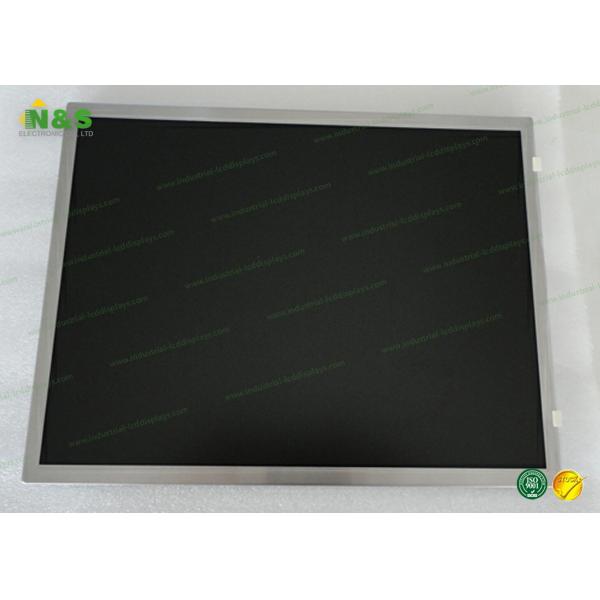

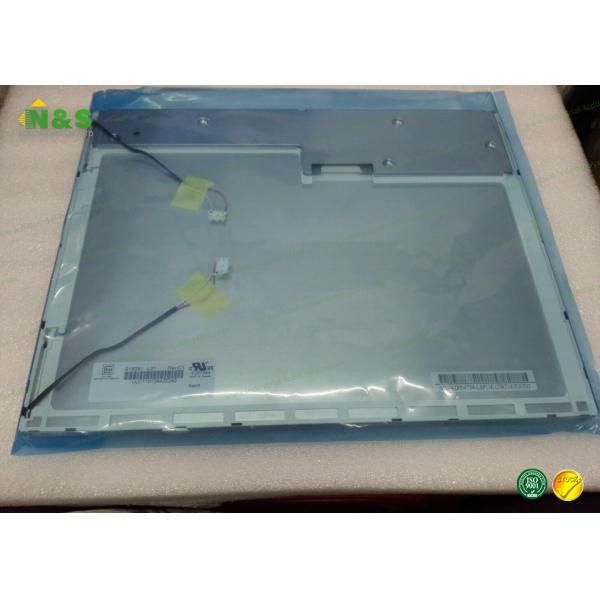

Product Show for CMO G150X1-L01

Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01

Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01

Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01
