HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area
HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area
HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area
HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area
Specifications
Brand Name :
HannStar
Model Number :
HSD101PFW2-A02
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Surface :
Glare (Haze 0%), Hard coating (3H)
Brightness :
200 cd/m² (Typ.)
Response Time :
4/12 (Typ.)(Tr/Td)
Viewing Angle :
45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
WLED
Signal Interface :
LVDS (1 ch, 6-bit) , 40 pins
Panel Brand :
HannStar
Panel Model :
HSD101PFW2-A02
Description

HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area

HannStar HSD101PFW2-A02 General Features

Panel Brand : HannStar
Panel Model : HSD101PFW2-A02
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 222.72×125.28 mm
Outline : 235×143×5.2 mm
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

Company Strength

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

HannStar HSD101PFW2-A02 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Max.)(5/13 points)

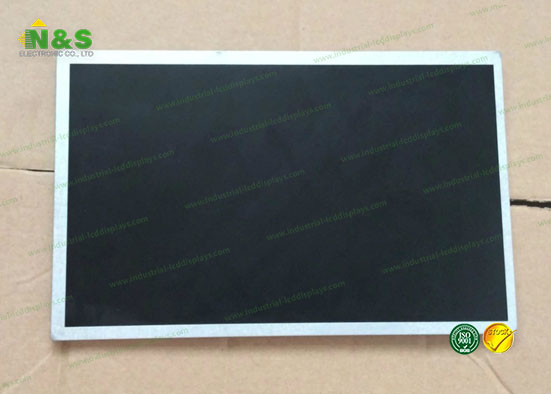

Details Pictures for HannStar HSD101PFW2-A02

HannStar HSD101PFW2- A02 10.1 inch Industrial LCD Displays 222.72×125.28 mm Active Area
