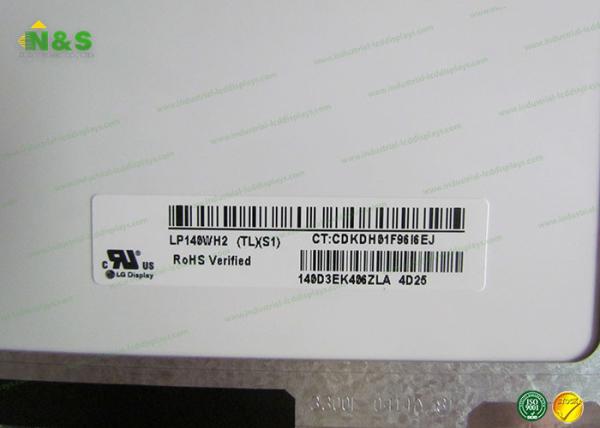

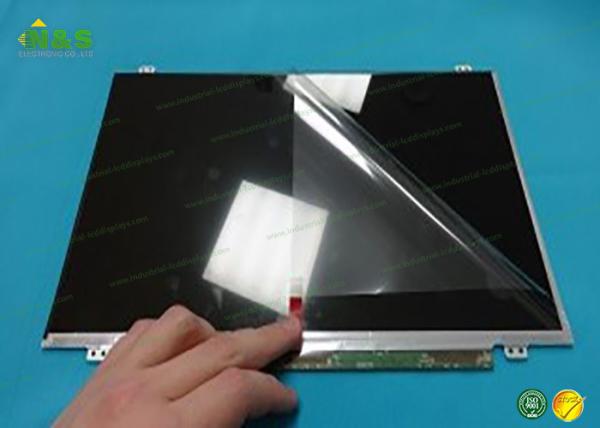

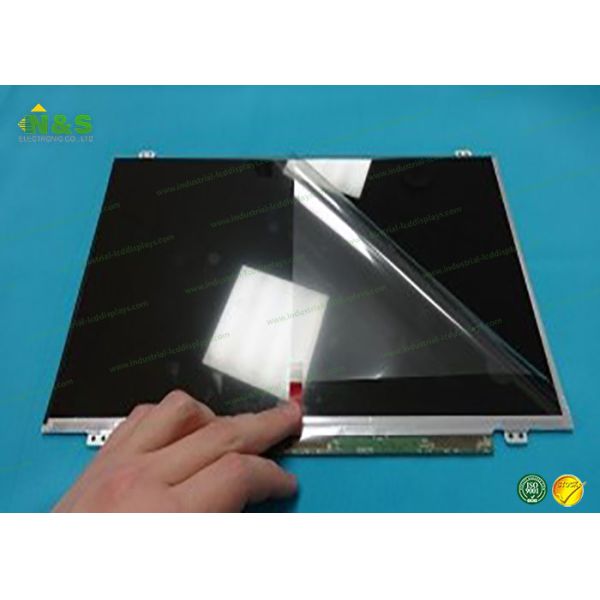

14.0 inch lcd display without touch screen LP140WH2-TLS1 LG LCD Panel for 1366*768

Our services:
1.We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.

Mechanical Features

Panel Size : 14.0 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.2265 mm (H×V)
Pixel Pitch : 0.2265×0.2265 mm (H×V)
Weight : 310g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 309.399×173.952 mm (H×V)
Bezel Area : 312.6×177.5 mm (H×V)
Outline Dimension : 320.4×204.6 mm (H×V)
Outline Depth : 3.6 (Max.) mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets : Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

General Features
Panel Brand : LG Display
Panel Model : LP140WH2-TLS1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 14.0 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 309.399×173.952 mm
Outline : 320.4×204.6×3.6 mm
Shape Style : Flat (PCBA Flat, Depth 3.4~4.0mm)
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 47%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)

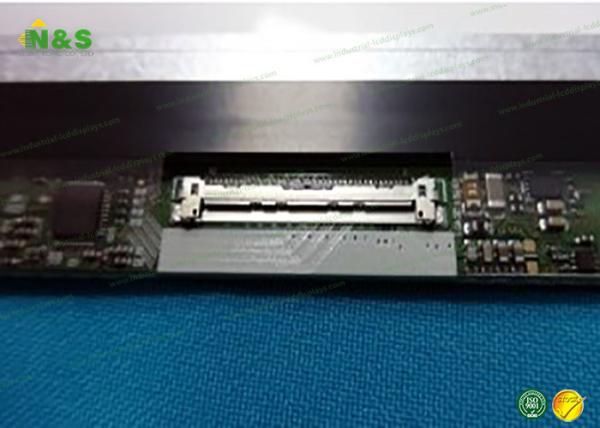

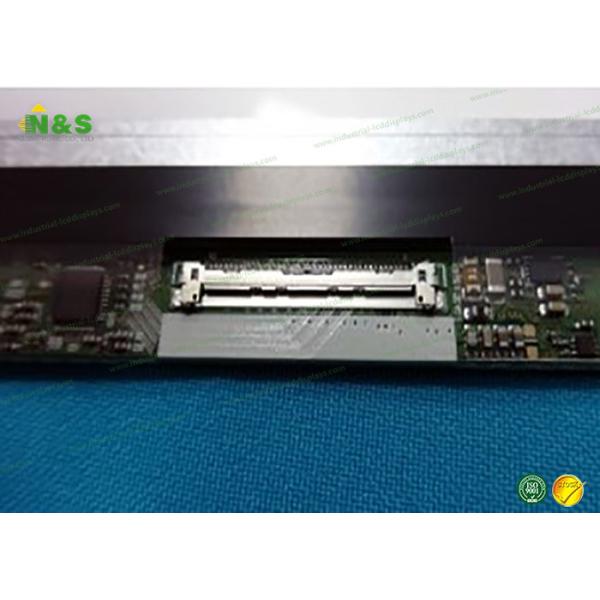

Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
