LQ150X1LG75XA Antiglar Sharp LCD Panel 15.0 inch LCM 1024×768 700 350:1 262K/16.7M WLED LVDS Datasheet
LQ150X1LG75XA Antiglar Sharp LCD Panel 15.0 inch LCM 1024×768 700 350:1 262K/16.7M WLED LVDS Datasheet
Specifications
Brand Name :
SHARP
Model Number :
LQ150X1LG75XA
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3WORK DAY
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
1024(RGB)×768 , XGA
Panel Size :
15.0 inch
Panel Type :
a-Si TFT-LCD , LCM
Display Mode :
TN, Normally White, Transmissive
Active Area :
304.1×228.1 mm
Outline :
326.5×253.5×12.5 mm
Surface :
Antiglare, Hard coating (3H)
Brightness :
700 cd/m² (Typ.)
Description

LQ150X1LG75XA Antiglar Sharp LCD Panel 15.0 inch LCM 1024×768 700 350:1 262K/16.7M WLED LVDS Datasheet

LQ150X1LG75XA Detail

Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor :
Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch :
0.297×0.297 mm (H×V)
Weight : 1.10Kgs
Surface :
Antiglare, Hard coating (3H)
Active Area : 304.1×228.1 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth :
12.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode :
TN, Normally White, Transmissive
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 350 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Time :
2/10 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :
6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation :
1.33 (Max.)(9 points)
Sunlight Readable : N

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

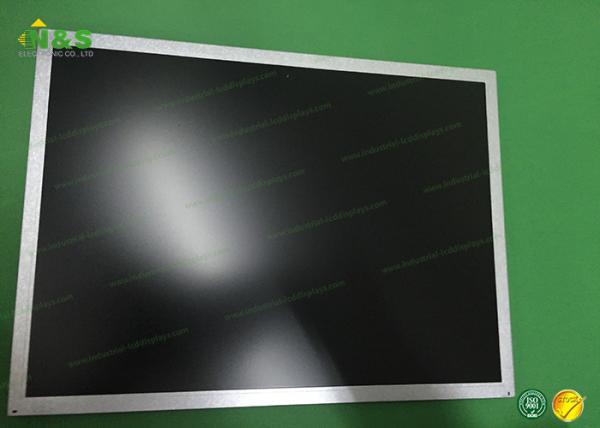

LQ150X1LG75XA Picture

LQ150X1LG75XA Antiglar Sharp LCD Panel 15.0 inch LCM 1024×768 700 350:1 262K/16.7M WLED LVDS Datasheet
